Minifilter

Minifilter

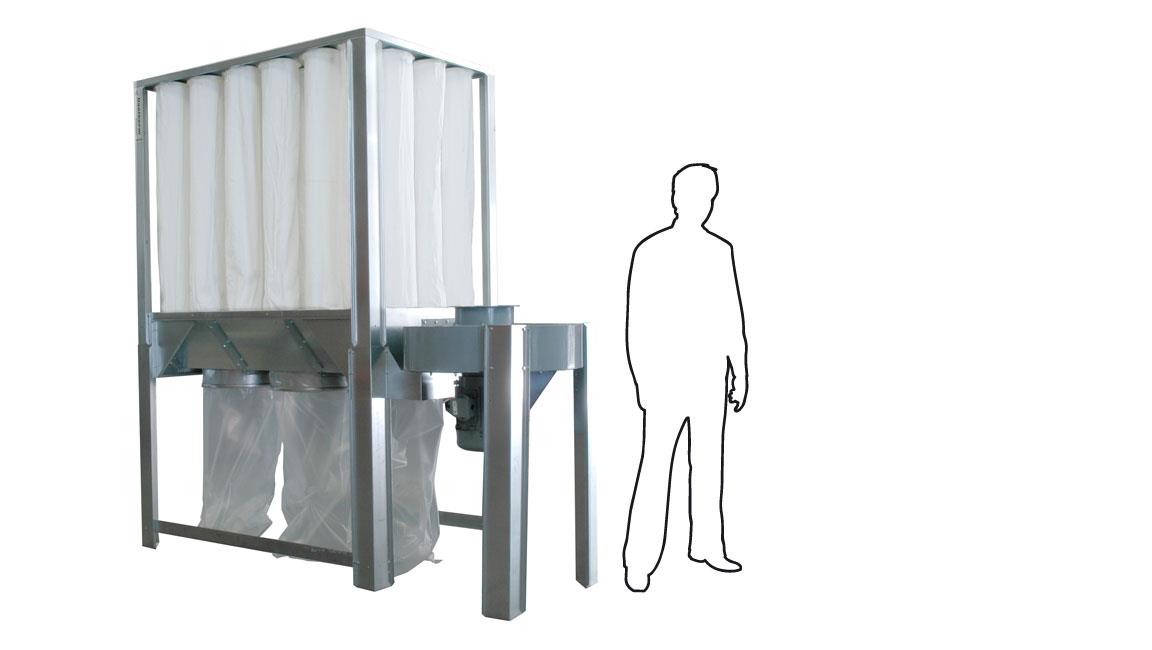

Silent operating dust collector for wood dust applications

The MiniSeries dust collector is an enclosure-less, silent and simple to setup dust collector for your wood dust collection needs. Ideal for indoor installation, the MiniSeries is available in three sizes with an operating capacity of up to 8500 m3/h. The fan operates at a low rpm resulting in quieter operation compared to competing indoor dust collection systems. It is equipped with the Super Bag filter which is safe for use with wood dust and is 99% efficient.

  • Silent operation
  • Safe for indoor installation
  • Simple setup

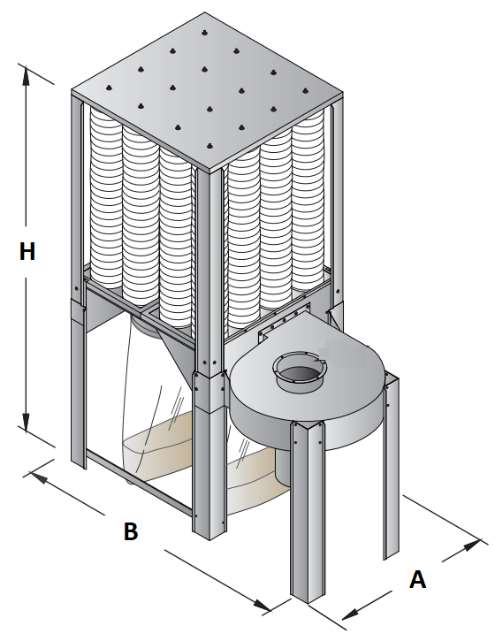

Technical data
Filter efficiency (%) 99,9
Installation Indoor
Application Dust
Filter Area (m²) 0.94 / bag
Capacity (max airflow m3/h) 3500 - 5500

Models31

    Mini 1/S/7,5 with Markifab 0,56-224 2.2 kW. Capacity 3500 m3/h.

    ArtNo: 73005502

    Filter type
    Bag
    Number of filter elements
    8
    Weight (kg)
    130
    Power (kW)
    2,2
    Note
    No shaker
    Mini 1/S/7,5 W with Markifab 0,56-224 with shaker. Capacity 3500 m3/h.

    ArtNo: 73005503

    Filter type
    Bag
    Number of filter elements
    8
    Weight (kg)
    157
    Power (kW)
    2,2
    Note
    With shaker
    Mini 2/M/23 with Markifab 0,56-280 7,5 kW

    ArtNo: 73005504

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    193
    Power (kW)
    7.5 kW
    Note
    No shaker
    Mini 2/M/24 z Markifab S0,56-250 4,0 kW with shaker

    ArtNo: 73005505

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    224
    Power (kW)
    4.0 kW
    Note
    With shaker
    Mini 2/S/15 with Markifab S0,56-250 4.0 kW. Capacity 4300 m3/h.

    ArtNo: 73005506

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    180
    Power (kW)
    4.0
    Note
    No shaker
    Mini 2/S/15 W with Markifab 0,56-250 with shaker. Capacity 4300 m3/h.

    ArtNo: 73005507

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    216
    Power (kW)
    4,0
    Note
    With shaker
    Mini 3/M/34 z Markifab S0,56-280 7,5 kW with shaker

    ArtNo: 73005509

    Filter type
    Bag
    Number of filter elements
    24
    Weight (kg)
    285
    Power (kW)
    7.5 kW
    Note
    With shaker
    Mini 3/S/23 with Markifab 0,56-280 7,5 kW. Capacity 5500 m3/h.

    ArtNo: 73005510

    Filter type
    Bag
    Number of filter elements
    24
    Weight (kg)
    233
    Power (kW)
    7.5
    Note
    No shaker
    Mini 3/S/23 W with Markifab 0,56-280 with shaker. Capacity 5500 m3/h.

    ArtNo: 73005511

    Filter type
    Bag
    Number of filter elements
    24
    Weight (kg)
    268
    Power (kW)
    7,5
    Note
    With shaker
    Mini 1/ S / 7,5 - without fan

    ArtNo: 73005487

    Filter type
    Bag
    Number of filter elements
    8
    Weight (kg)
    80
    Note
    No shaker
    Mini 1/ S / 7,5 W - without fan, with shaker

    ArtNo: 7994421

    Filter type
    Bag
    Number of filter elements
    8
    Note
    With shaker
    Mini 2/S/15 without fan

    ArtNo: 7994451

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    127
    Note
    No shaker
    Mini 2/S/15 W - without fan, with shaker

    ArtNo: 7994452

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    163
    Note
    With shaker
    Mini 2 /M/24

    ArtNo: 7994448

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    134
    Note
    No shaker
    Mini 2/M/24-W - without fan

    ArtNo: 7994449

    Filter type
    Bag
    Number of filter elements
    16
    Weight (kg)
    171
    Note
    With shaker
    Mini 3/S/23 without fan

    ArtNo: 7994467

    Filter type
    Bag
    Number of filter elements
    24
    Weight (kg)
    161
    Note
    No shaker
    Mini 3/S/23 W without fan, with shaker

    ArtNo: 7994468

    Filter type
    Bag
    Number of filter elements
    24
    Weight (kg)
    206
    Note
    With shaker
    Mini 3/M/34 without fan

    ArtNo: 7994465

    Filter type
    Bag
    Number of filter elements
    24
    Weight (kg)
    168
    Note
    No shaker
    Mini 3/M/34 W without fan, with shaker

    ArtNo: 73005495

    Number of filter elements
    24
    Weight (kg)
    214
    Note
    With shaker
    Mini 3/M/23 zwith Markifab 0,56-280 7,5 kW

    ArtNo: 7994477

    Number of filter elements
    24
    Weight (kg)
    234
    Note
    No shaker
    Mini 4/MW/48 - no fan

    ArtNo: 73005496

    Filter type
    Bag
    Number of filter elements
    32
    Weight (kg)
    274
    Note
    With shaker
    Mini 4/S/30 - without fan

    ArtNo: 7994470

    Filter type
    Bag
    Number of filter elements
    32
    Weight (kg)
    256
    Note
    No shaker
    Mini 4/S/23 W without Fan with shaker

    ArtNo: 7994471

    Filter type
    Bag
    Number of filter elements
    32
    Weight (kg)
    314
    Note
    With shaker
    Mini 4/S/30 with Markifab 0.56-280 7,5kW /S1000/

    ArtNo: 7994480

    Filter type
    Bag
    Number of filter elements
    32
    Weight (kg)
    354
    Power (kW)
    7,5
    Note
    No shaker
    Mini 4/MW/48 with Markifab 0.56-280 7,5kW

    ArtNo: 73005512

    Filter type
    Bag
    Number of filter elements
    32
    Weight (kg)
    336
    Power (kW)
    7,5
    Note
    With shaker
    Mini 4/SW/30 with Markifab 0.56-280 7,5kW

    ArtNo: 73005513

    Filter type
    Bag
    Number of filter elements
    32
    Weight (kg)
    377
    Power (kW)
    7,5
    Note
    With shaker
    Mini 5/M/58 - W

    ArtNo: 73005497

    Filter type
    Bag
    Number of filter elements
    40
    Weight (kg)
    372
    Note
    With shaker
    Mini 6/M/68 - no fan

    ArtNo: 73005498

    Filter type
    Bag
    Number of filter elements
    48
    Weight (kg)
    340
    Note
    No shaker
    Mini 6 / M / 68 W with shaker

    ArtNo: 73005499

    Filter type
    Bag
    Number of filter elements
    48
    Weight (kg)
    420
    Note
    With shaker
    Mini 6/S/46W without fan with shaker

    ArtNo: 73005500

    Filter type
    Bag
    Number of filter elements
    48
    Weight (kg)
    430
    Note
    With shaker
    Mini 6/MW./68 with Markifab 0.56-280 7,5kW

    ArtNo: 7994481

    Filter type
    Bag
    Number of filter elements
    48
    Weight (kg)
    530
    Power (kW)
    7,5
    Note
    With shaker

Accessories for this product 15

Control cabinet 5240-1GM11-22041
ArtNo: 73004680

Control cabinet 5240-1GM11-22041 for NFP Mini unit fitted with Markifab 2.2kW fan and 0.12kW shaker motor

Control cabinet 5240-1GM11-40041
ArtNo: 73004683

Control cabinet 5240-1GM11-40041 for NFP Mini unit fitted with Markifab 4kW fan and 0.12kW shaker motor

Control cabinet 5240-3GM11-75041
ArtNo: 73004701

Control cabinet 5240-3GM11-75041 for NFP Mini unit fitted with Markifab 7.5kW fan and 0.12kW shaker motor

Control cabinet 5240-3GM12-75041
ArtNo: 73004710

Control cabinet 5240-3GM12-75041 for NFP Mini unit fitted with Markifab 7.5kW fan and 2x0.12kW shaker motor

Bin for Mini - with insp. window and wheels
ArtNo: 73005479

Bin for Mini - with insp. window and wheels

Bin for Mini - with insp. window
ArtNo: 73005480

Bin for Mini - with insp. window

Bin for Mini
ArtNo: 73005481

Bin for Mini

Dust bag mini 1200 x 800 T = 0,15mm
ArtNo: 73005482

Dust bag mini 1200 x 800 T = 0,15mm

Filter bag mini ''S”L=1405, NF140
ArtNo: 73005483

Filter bag mini ''S”L=1405, NF140

Filter bag mini ''M'' L=2105, NF140
ArtNo: 73005484

Filter bag mini ''M'' L=2105, NF140

Inlet FL224/QF250 L=1m
ArtNo: 73005508

Inlet FL224/QF250 L=1m

Reduction FL250/QF200 1m
ArtNo: 73005514

Reduction FL250/QF200 1m

Inlet FL250/QF250 L=1m
ArtNo: 73005515

Inlet FL250/QF250 L=1m

Inlet FL280/QF250 L=1m
ArtNo: 73005516

Inlet FL280/QF250 L=1m

Inlet FL280/QF315 L=1m
ArtNo: 73005517

Inlet FL280/QF315 L=1m

“ ”
