NCF Fans

NCF Fans

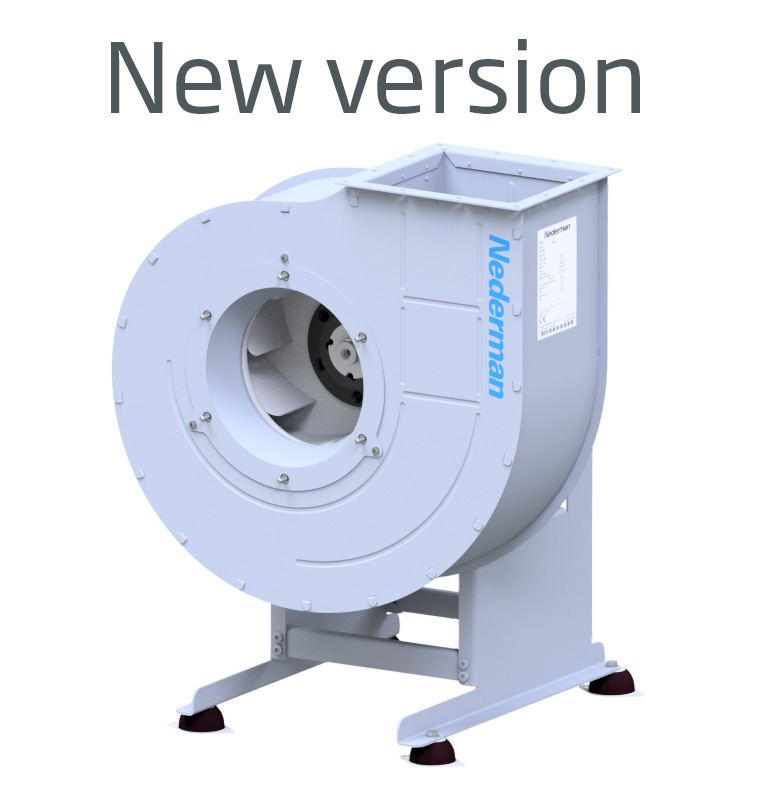

The NCF fan from Nederman is safe, energy-efficient and durable for optimal air circulation. A wide range of NCF fans are available.

Nederman NCF fans offer a high-quality solution for industrial air displacement with direct-driven motors. These efficient fans are not only safe to use, but also contribute to significant energy cost savings. By integrating an NCF fan with other Nederman products, you can not only increase your operational efficiency, but also optimize your energy consumption.

This versatile centrifugal fan is suitable for a wide range of industrial processes and ventilation applications, both for indoor and outdoor use. Whether you're working in a manufacturing facility, a workshop, or any other industrial setting, the NCF fan delivers reliable performance to meet your air circulation needs.

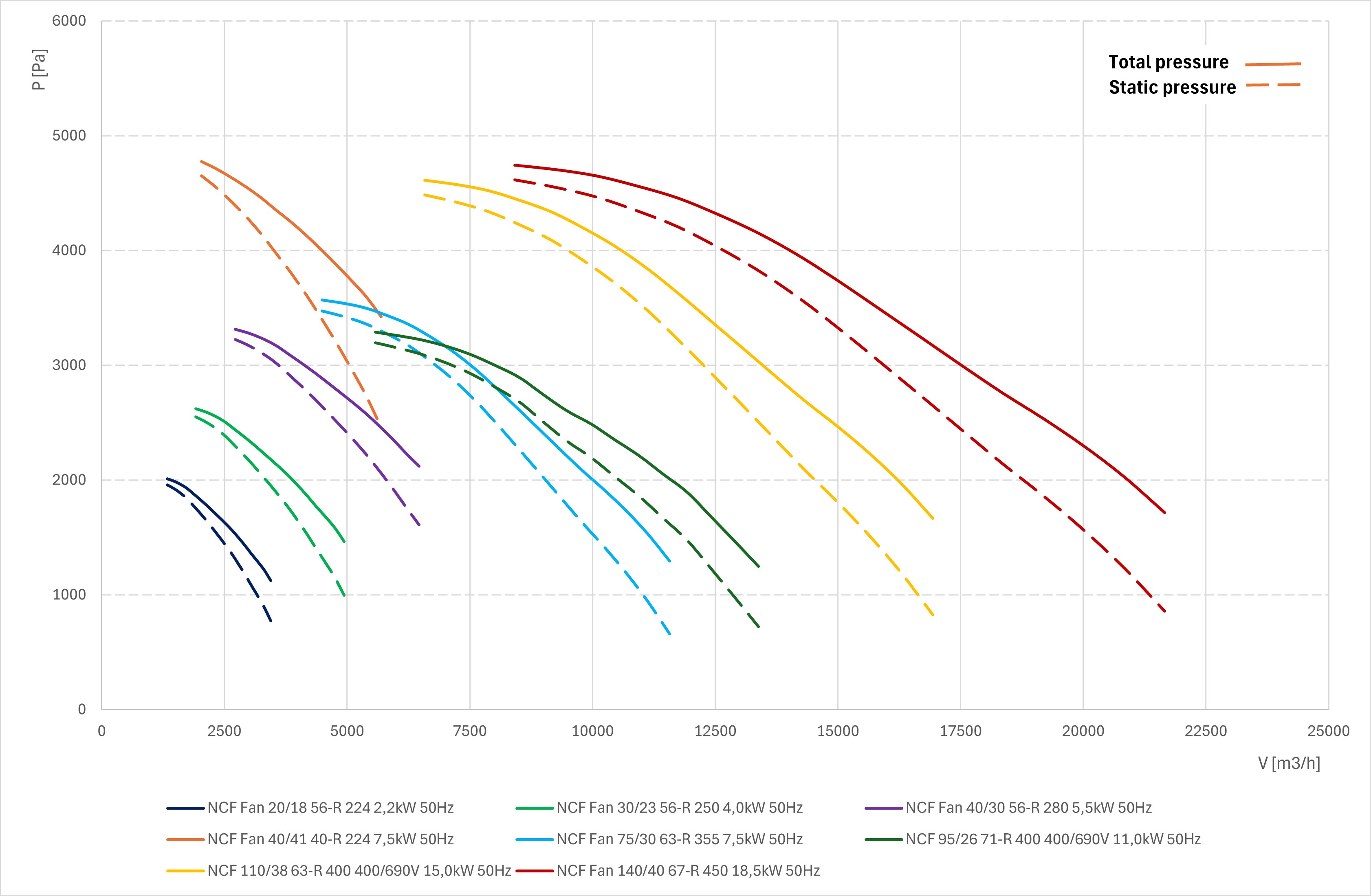

The fan is is available in a wide range of airflow, from 3000 up to 18 000 m3/h (1765 to 10 600 CFM).
Perfect to use together with one or several Nederman extraction arms like: Original arm, Telescopic arm, NEX MD arm etc or for vehicle exhaust extraction, and can be controlled with a fan starter or fan inverter.

Note! The fan must not be used in an environment with danger of explosion or for transport of inflammable or explosive gases.

  • Wide range of fans with different airflows
  • Built in vibration damping
  • Available with sound enclosure

Technical data
Certifications CE
Protection class IP 55
Installation Indoor, Outdoor
Material Galvanised steel, painted RAL7035
Suitable for combustible dust No
Ambient temperature range -20 ºC to +40 °C / -4 ºF to +104 ºF
Operating Temperature -20 ºC to +80 ºC
No of phases 3
Note Lp dB(A) in 1 m (ducted inlet & outlet)

Models25

    FAN NCF 20/18 56-R 224

    ArtNo: 73009563

    Power voltage (V)
    230/400
    Frequency (Hz)
    50
    Amperage (A)
    7,6/4,4
    Noise level (dB(A))
    66,2 dB(A) at 2000 m³/h
    Weight (kg)
    49
    Power (kW)
    2,2
    FAN NCF 30/23 56-R 250

    ArtNo: 73009597

    Power voltage (V)
    230/400
    Frequency (Hz)
    50
    Amperage (A)
    12,3/7,1
    Noise level (dB(A))
    69,8 dB(A) at 3000 m³/h
    Weight (kg)
    83
    Power (kW)
    4,0
    NCF 30/23 56-R 250

    ArtNo: 73009564

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    7,1/4,1
    Noise level (dB(A))
    69,8 dB(A) at 3000 m³/h
    Weight (kg)
    83
    Power (kW)
    4,0
    FAN NCF 40/30 56-R 280

    ArtNo: 73009598

    Power voltage (V)
    230/400
    Frequency (Hz)
    50
    Amperage (A)
    17/9,8
    Noise level (dB(A))
    73,7 dB(A) at 4000 m³/h
    Weight (kg)
    108
    Power (kW)
    5,5
    FAN NCF 40/30 56-R 280

    ArtNo: 73009565

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    9,8/5,7
    Noise level (dB(A))
    73,7 dB(A) at 4000 m³/h
    Weight (kg)
    108
    Power (kW)
    5,5
    FAN NCF 40/41 40-R 224

    ArtNo: 73009562

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    13,8/8
    Noise level (dB(A))
    77,6 dB(A) at 4000 m³/h
    Weight (kg)
    109
    Power (kW)
    7,5
    NCF 75/30 63-R 355

    ArtNo: 73009566

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    13,8/8
    Noise level (dB(A))
    75 dB(A) at 7500 m³/h
    Weight (kg)
    139
    Power (kW)
    7,5
    FAN NCF 95/26 71-R 400

    ArtNo: 73009569

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    19,6/11,4
    Noise level (dB(A))
    75,8 dB(A) at 9500 m³/h
    Weight (kg)
    241
    Power (kW)
    11,0
    FAN NCF 110/38 63-R 400

    ArtNo: 73009567

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    26/15,2
    Noise level (dB(A))
    78 dB(A) at 11000 m³/h
    Weight (kg)
    253
    Power (kW)
    15,0
    FAN NCF 140/40 67-R 450

    ArtNo: 73009568

    Power voltage (V)
    400/690
    Frequency (Hz)
    50
    Amperage (A)
    31,9/18,4
    Noise level (dB(A))
    78,9 dB(A) at 14000 m³/h
    Weight (kg)
    301
    Power (kW)
    18,5
    FAN NCF 20/18 56-R 224 motor NEMA 60Hz

    ArtNo: 89114402

    Power Voltage (V)
    230/460
    Frequency (Hz)
    60
    Amperage (A)
    7,06/4,03
    Noise level (dB(A))
    66,2 dB(A) at 2000 m³/h; 66,2 db(A) at 1177 cfm
    Weight (kg)
    63(kg) / 138(lbs)
    Power (kW)
    2,2(kW) / 3(Hp)
    FAN NCF 30/23 56-R 250 motor NEMA 60Hz

    ArtNo: 89114405

    Power Voltage (V)
    230/460
    Frequency (Hz)
    60
    Amperage (A)
    13,3/6,63
    Noise level (dB(A))
    69,8 dB(A) at 3000 m³/h; 69,8 db(A) at 1766 cfm
    Weight (kg)
    79(kg) / 173(lbs)
    Power (kW)
    4(kW) / 5(Hp)
    FAN NCF 40/30 56-R 280 motor NEMA 60Hz

    ArtNo: 89114410

    Power Voltage (V)
    230/460
    Frequency (Hz)
    60
    Amperage (A)
    19,1/9,57
    Noise level (dB(A))
    73,7 dB(A) at 4000 m³/h; 73,7 db(A) at 2354 cfm
    Weight (kg)
    119(kg) / 261(lbs)
    Power (kW)
    5,5(kW) / 7,5 (Hp)
    FAN NCF 40/41 40-R 224 motor NEMA 60Hz

    ArtNo: 89114412

    Power Voltage (V)
    230/460
    Frequency (Hz)
    60
    Amperage (A)
    26,6/13,3
    Noise level (dB(A))
    77,6 dB(A) at 4000 m³/h; 77,6 db(A) at 2354 cfm
    Weight (kg)
    137(kg) / 301(lbs)
    Power (kW)
    7,5(kW) / 10(Hp)
    FAN NCF 75/30 63-R 355 motor NEMA 60Hz

    ArtNo: 89114407

    Power Voltage (V)
    230/460
    Frequency (Hz)
    60
    Amperage (A)
    26,6/13,3
    Noise level (dB(A))
    75 dB(A) at 7500 m³/h; 75 db(A) at 4414 cfm
    Weight (kg)
    166(kg) / 365(lbs)
    Power (kW)
    7,5(kW) / 10(Hp)
    FAN NCF 95/26 71-R 400 motor NEMA 60Hz

    ArtNo: 89114414

    Power Voltage (V)
    230/460
    Frequency (Hz)
    60
    Amperage (A)
    38/19
    Noise level (dB(A))
    75,8 dB(A) at 9500 m³/h; 75,8 db(A) at 5591 cfm
    Weight (kg)
    248(kg) / 547(lbs)
    Power (kW)
    11(kW) / 15(Hp)
    FAN NCF 140/40 67-R 450 motor NEMA 60Hz

    ArtNo: 89114418

    Power Voltage (V)
    230/400
    Frequency (Hz)
    60
    Amperage (A)
    64,24/32,12
    Noise level (dB(A))
    78,9 dB(A) at 14000 m³/h; 78,9 db(A) at 8240 cfm
    Weight (kg)
    299(kg) / 658(lbs)
    Power (kW)
    18,5(kW) / 25(Hp)
    FAN NCF 20/18 56-R 224 motor NEMA 60Hz

    ArtNo: 89114403

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    2,88
    Noise level (dB(A))
    66,2 dB(A) at 2000 m³/h; 66,2 db(A) at 1177 cfm
    Weight (kg)
    71(kg)/ 157(lbs)
    Power (kW)
    2,2(kW) / 3(Hp)
    FAN NCF 30/23 56-R 250 motor NEMA 60Hz

    ArtNo: 89114406

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    4,6
    Noise level (dB(A))
    69,8 dB(A) at 3000 m³/h; 69,8 db(A) at 1766 cfm
    Weight (kg)
    79(kg) / 173(lbs)
    Power (kW)
    4(kW) / 5(Hp)
    FAN NCF 40/30 56-R 280 motor NEMA 60Hz

    ArtNo: 89114411

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    6,96
    Noise level (dB(A))
    73,7 dB(A) at 4000 m³/h; 73,7 db(A) at 2354 cfm
    Weight (kg)
    125(kg) / 274(lbs)
    Power (kW)
    5,5(kW) / 7,5(Hp)
    NCF 40/41 40-R 224 motor NEMA 60Hz

    ArtNo: 89114413

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    9,04
    Noise level (dB(A))
    77,6 dB(A) at 4000 m³/h; 77,6 db(A) at 2354 cfm
    Weight (kg)
    137(kg) / 301(lbs)
    Power (kW)
    7,5(kW) / 10(Hp)
    FAN NCF 75/30 63-R 355 motor NEMA 60Hz

    ArtNo: 89114408

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    9,04
    Noise level (dB(A))
    75 dB(A) at 7500 m³/h; 75 db(A) at 4414 cfm
    Weight (kg)
    166(kg) / 365(lbs)
    Power (kW)
    7,5(kW) / 10(Hp)
    FAN NCF 95/26 71-R 400 motor NEMA 60Hz

    ArtNo: 89114415

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    13,44
    Noise level (dB(A))
    75,8 dB(A) at 9500 m³/h; 87,5 db(A) at 5591 cfm
    Weight (kg)
    235(kg) / 518(lbs)
    Power (kW)
    11(kW) / 15(Hp)
    FAN NCF 110/38 63-R 400 motor NEMA 60Hz

    ArtNo: 89114417

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    18,08
    Noise level (dB(A))
    78 dB(A) at 11000 m³/h; 78 db(A) at 6474 cfm
    Weight (kg)
    259(kg) / 571(lbs)
    Power (kW)
    15(kW) / 20(Hp)
    FAN NCF 140/40 67-R 450 motor NEMA 60Hz

    ArtNo: 89114419

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    Amperage (A)
    22,72
    Noise level (dB(A))
    78,9 dB(A) at 14000 m³/h; 78,9 db(A) at 8240 cfm
    Weight (kg)
    306(kg) / 675(lbs)
    Power (kW)
    18,5(kW) / 25(Hp)

Accessories for this product 113

FMS 4-6.3 Fan Manual Starter incl. Motorprotector 4-6.3A
ArtNo: 14502437

FMS 4-6.3 Fan Manual Starter

FMS 6.3-10 Fan Manual Starter incl. Motorprotector 6.3-10A
ArtNo: 14502537

FMS 6.3-10 Fan Manual Starter

FMS 10-16 Fan Manual Starter incl. Motorprotector 10-16A
ArtNo: 14502637

FMS 10-16 Fan Manual Starter

Fan Inverter for 4,0 kW motor power
ArtNo: 14521937

Fan inverter 4

Fan Inverter for 5,5 kW motor power
ArtNo: 14522037

Fan inverter 5,5

Fan Inverter for 7,5 kW motor power
ArtNo: 14522137

Fan inverter 7,5

Fan Inverter for 11 kW motor power
ArtNo: 14522237

Fan inverter 11

Fan Inverter for 15 kW motor power
ArtNo: 14522637

Fan inverter 15

Fan Inverter for 18,5 kW motor power
ArtNo: 14525137

Fan inverter 18,5

Fan Inverter for 2,2 kW motor power
ArtNo: 14528037

Fan inverter 2,2

Inlet Flange with grill dia 224
ArtNo: 73009537

Inlet Flange grill for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz and for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224 mm. Can also be used with Combifab-F

Inlet Flange with grill dia 280
ArtNo: 73009538

Inlet Flange with grill for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=280 mm. Can also be used with Combifab-F

Inlet Flange with grill dia 250
ArtNo: 73009539

Inlet Flange with grill for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250 mm. Can also be used for Combifab-F

Inlet Flange with grill dia 355
ArtNo: 73009540

Inlet Flange with grill for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=355mm. Can also be used with Combifab-F.

Inlet Flange with grill dia 400
ArtNo: 73009541

Inlet Flange with grill for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. D=400 mm. Can also be used with Combifab-F

Inlet Flange with grill dia 450
ArtNo: 73009542

Inlet Flange with grill for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm. Can also be used with Combifab-F

Outlet Flange with grill 56-224
ArtNo: 73009543

Outlet Flange with grill for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 56-280
ArtNo: 73009544

Outlet Flange with grill for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 56-250
ArtNo: 73009545

Outlet Flange grill for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. Can also be used for Combifab-F

Outlet Flange with grill 71-400
ArtNo: 73009546

Outlet Flange with grill for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 63-400
ArtNo: 73009547

Outlet Flange with grill for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 63-355
ArtNo: 73009548

Outlet Flange with grill for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 67-450
ArtNo: 73009549

Outlet Flange with grill for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 40-224
ArtNo: 73009550

Outlet Flange with grill for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. Can also be used with Combifab-F

Vibration absorber DVE-45-M10-A-40, 1 set (4 pcs)
ArtNo: 73009551

For NCF 20/18 56-R224, NCF 30/23 56-R250, NCF 40/30 56-R280, NCF 40/41 40-R224 and NCF 75/30 63-R355.

Vibration absorber DVE-58-M10-A-60, 1 set (4 pcs)
ArtNo: 73009552

For NCF 95/26 71-R400, NCF 110/38 63-R400 and NCF 140/40 67-R450

Flexible inlet adapter FL224 / Spiro224
ArtNo: 73009614

Flexible inlet adapter for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz and for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224 mm H=300 mm. Can also be used with Combifab-F

Flexible inlet adapter FL250 / Spiro 250
ArtNo: 73009615

Flexible inlet adapter for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250/315 mm H=320 mm. Can also be used with Combifab-F

Flexible inlet adapter FL280 / Spiro 280
ArtNo: 73009616

Flexible inlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=280 mm, H=300 mm. Can also be used with Combifab-F

Flexible inlet adapter FL355 / Spiro 350
ArtNo: 73009617

Flexible inlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=355 mm H=300 mm. Can also be used with Combifab-F

Flexible inlet adapter FL400 / Spiro 400
ArtNo: 73009618

Flexible inlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz and for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. D=400 mm H=320 mm. Can also be used with Combifab-F

Flexible inlet adapter FL450 / Spiro 450
ArtNo: 73009619

Flexible inlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm H=320 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.40-224 / Spiro 224
ArtNo: 73009620

Flexible outlet adapter for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz . D=224 mm H=380 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.56-224 / Spiro 224
ArtNo: 73009621

Flexible outlet adaptor for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz. D=224 mm H=380 mm. Can be used with Combifab-F

Flexible outlet adapter 0.56-250 / Spiro 250
ArtNo: 73009622

Flexible outlet adapter for NCF 30/23 56-R 250 400/690V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250 mm H=380 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.56-280 / Spiro 280
ArtNo: 73009623

Flexible outlet adapter for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=280 mm H=380 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.63-355 / Spiro350
ArtNo: 73009624

Flexible outlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=355 mm H=380 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.63-400 / Spiro 400
ArtNo: 73009625

Flexible outlet adapter for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. D=400 mm H=400 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.67-450 / Spiro 450
ArtNo: 73009626

Flexible outlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm H=400 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.71-400 / Spiro 400
ArtNo: 73009627

Flexible outlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. D=400 mm H=400 mm. Can also be used with Combifab-F

Inlet adapter FL224 / Spiro224
ArtNo: 73009649

Inlet adapter for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz and for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224 mm H=180 mm. Can also be used together with Combifab-F

Inlet adapter FL250 / Spiro250
ArtNo: 73009650

Inlet adapter for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250 mm H=180 mm. Can also be used with Combifab-F

Inlet adapter FL280 / Spiro280
ArtNo: 73009651

Inlet adapter for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=280 mm H=180 mm. Can also be used with Combifab-F

Inlet adapter FL355 / Spiro350
ArtNo: 73009652

Inlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=350 mm H=180 mm. Can also be used with Combifab-F

Inlet adapter FL400 / Spiro400
ArtNo: 73009653

Inlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz and for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. D=400 mm H=200 mm. Can also be used with Combifab-F

Inlet adapter FL450 / Spiro450
ArtNo: 73009654

Inlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm H=200 mm. Can also be used with Combifab-F

Outlet adapter 0.40-224 / Spiro224
ArtNo: 73009655

Outlet adapter for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224 mm H260 mm. Can also be used with Combifab-F

Outlet adapter 0.56-224 / Spiro224
ArtNo: 73009656

Outlet adapter for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz. D=224 mm H=260 mm. Can also be used with Combifab-F

Outlet adapter 0.56-250 / Spiro250
ArtNo: 73009657

Outlet adapter for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250 mm H=260 mm. Can also be used with Combifab-F

Outlet adapter 0.56-280 / Spiro280
ArtNo: 73009658

Outlet adapter for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=280 mm H= 260 mm. Can also be used with Combifab-F

Outlet adapter 0.63-355 / Spiro350
ArtNo: 73009659

Outlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=355 mm H=260 mm. Can also be used with Combifab-F

Outlet adapter 0.63-400 / Spiro400
ArtNo: 73009660

Outlet adapter for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. D=400 mm H=280 mm. Can also be used with Combifab-F

Outlet adapter 0.67-450 / Spiro450
ArtNo: 73009661

Outlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm H=280 mm. Can also be used with Combifab-F

Outlet adapter 0.71-400 / Spiro400
ArtNo: 73009662

Outlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. D=400 mm H=280 mm. Can also be used with Combifab-F

Flexible inlet adapter FL224/Spiro250
ArtNo: 73009667

Flexible inlet adapter for NCF 20/8 56-R 224 230/400V 2,2kW 50Hz and for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224/250 mm H=310 mm. Can also be used with Combifab-F

Flexible inlet adapter FL280/Spiro250
ArtNo: 73009668

Flexible inlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=280 mm, H=310 mm. Can also be used with Combifab-F

Flexible inlet adapter FL250/Spiro315
ArtNo: 73009669

Flexible inlet adapter FL250/Spiro315

Flexible inlet adapter FL355/Spiro500
ArtNo: 73009670

Flexible inlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=400 mm H=340 mm. Can also be used with Combifab-F

Flexible inlet adapter FL450/Spiro500
ArtNo: 73009671

Flexible inlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=500 mm H=340 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.56-224/Spiro315
ArtNo: 73009672

Flexible outlet adaptor for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz. D=224/315 mm H=400 mm. Can be used with Combifab-F

Flexible outlet adapter 0.56-280/Spiro315
ArtNo: 73009673

Flexible outlet adapter for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=315 mm H=380 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.56-250/Spiro400
ArtNo: 73009674

Flexible outlet adapter for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250 mm. Can also be used for Combifab-F

Flexible outlet adapter 0.63-355/Spiro500
ArtNo: 73009675

Flexible outlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=355 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.67-450/Spiro500
ArtNo: 73009676

Flexible outlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.40-224/Spiro250
ArtNo: 73009677

Flexible outlet adapter for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=250 mm H=380 mm, Can also be used with Combifab-F

Inlet adapter FL224/Spiro250
ArtNo: 73009679

Inlet adapter for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz and for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224/250 mm H=190mm. Can also be used together with Combifab-F

Inlet adapter FL280/Spiro250
ArtNo: 73009680

Inlet adapter for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=250/280 mm H=190 mm. Can also be used with Combifab-F

Inlet adapter FL250/Spiro315
ArtNo: 73009681

Inlet adapter for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=315 mm H=200 mm. Can also be used with Combifab-F

Inlet adapter FL355/Spiro400
ArtNo: 73009682

Inlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=400 mm. Can also be used with Combifab-F

Inlet adapter FL450/Spiro500
ArtNo: 73009683

Inlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=500 mm H=220 mm. Can also be used with Combifab-F

Outlet adapter 0.56-224/Spiro315
ArtNo: 73009684

Outlet adaptor for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz. D=315 mm H=260 mm. Can also be used with Combifab-F

Outlet adapter 0.56-280/Spiro315
ArtNo: 73009685

Outlet adapter for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=315 mm H= 260 mm. Can also be used with Combifab-F

Outlet adapter 0.56-250/Spiro400
ArtNo: 73009686

Outlet adapter for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=400 mm H=370 mm. Can also be used with Combifab-F

Outlet adapter 0.63-355/Spiro500
ArtNo: 73009687

Outlet adapter for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=400 mm H=370 mm. Can also be used with Combifab-F

Outlet adapter 0.67-450/Spiro500
ArtNo: 73009688

Outlet adapter for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=500 mm H=370 mm. Can also be used with Combifab-F

Outlet adapter 0.40-224/Spiro250
ArtNo: 73009689

Outlet adapter for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=250 mm H=260 mm. Can also be used with Combifab-F

Flexible inlet adapter FL400/Spiro500
ArtNo: 73009698

Flexible inlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. D=500 mm. Can also be used with Combifab-F

Flexible outlet adapter 0.71-400/Spiro500
ArtNo: 73009699

Flexible outlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. D=500 mm. Can also be used with Combifab-F

Inlet adapter FL400/Spiro500
ArtNo: 73009700

Inlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. D=500 mm. Can also be used with Combifab-F

Outlet adapter 0.71-400/Spiro500
ArtNo: 73009701

Outlet adapter for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. D=500 mm. Can also be used with Combifab-F

Fan starter DOL for motor 5,5kW / 400VAC | 5,5kW - DOL | ELC-FanStart-D100-055
ArtNo: 73009962

Fan starter DOL for motor 5,5kW / 400VAC | 5,5kW - DOL | ELC-FanStart-D100-055

Fan starter Y/D for motor 11kW / 400VAC | 11kW - Y/D | ELC-FanStart-Y100-110
ArtNo: 73009963

Fan starter Y/D for motor 11kW / 400VAC | 11kW - Y/D | ELC-FanStart-Y100-110

Fan starter Y/D for motor 18,5kW / 400VAC | 18,5kW - Y/D | ELC-FanStart-Y100-185
ArtNo: 73009964

Fan starter Y/D for motor 18,5kW / 400VAC | 18,5kW - Y/D | ELC-FanStart-Y100-185

Fan starter Y/D for motor 22kW / 400VAC | 22kW - Y/D | ELC-FanStart-Y100-220
ArtNo: 73009965

Fan starter Y/D for motor 22kW / 400VAC | 22kW - Y/D | ELC-FanStart-Y100-220

Fan Manual Starter 1.0-1.6A
ArtNo: 86900420

Fan Manual Starter 1.0-1.6A

Fan Manual Starter 1.6-2.5A
ArtNo: 86900421

Fan Manual Starter 1.6-2.5A

Fan Manual Starter 2.5-4A
ArtNo: 86900422

Fan Manual Starter 2.5-4A

Fan Manual Starter 4-6A
ArtNo: 86900423

Fan Manual Starter 4-6A

Fan Manual Starter 6.0-10A
ArtNo: 86900424

Fan Manual Starter 6.0-10A

Fan Manual Starter 10-16A
ArtNo: 86900425

Fan Manual Starter 10-16A

Fan Manual Starter 16-20A
ArtNo: 86900426

Fan Manual Starter 16-20A

Fan Manual Starter 20-25A
ArtNo: 86900427

Fan Manual Starter 20-25A

Delta VFD-C 230/3/60 1 HP - Programmed
ArtNo: 88600035

Delta VFD-C 230/3/60 1 HP - Programmed

Delta VFD-C 575/3/60 1 HP - Programmed
ArtNo: 88600036

Delta VFD-C 575/3/60 1 HP - Programmed

Delta VFD-C 575/3/60 2 HP - Programmed
ArtNo: 88600037

Delta VFD-C 575/3/60 2 HP - Programmed

Delta VFD-C 230/3/60 2 HP - Programmed
ArtNo: 88600038

Delta VFD-C 230/3/60 2 HP - Programmed

Delta VFD-C 230/3/60 3 HP - Programmed
ArtNo: 88600039

Delta VFD-C 230/3/60 3 HP - Programmed

Delta VFD-C 575/3/60 3 HP - Programmed
ArtNo: 88600040

Delta VFD-C 575/3/60 3 HP - Programmed

Delta VFD-C 575/3/60 5 HP - Programmed
ArtNo: 88600041

Delta VFD-C 575/3/60 5 HP - Programmed

Delta VFD-C 230/3/60 5 HP - Programmed
ArtNo: 88600042

Delta VFD-C 230/3/60 5 HP - Programmed

Delta VFD-C 230/3/60 7.5 HP - Programmed
ArtNo: 88600043

Delta VFD-C 230/3/60 7.5 HP - Programmed

Delta VFD-C 575/3/60 7.5 HP - Programmed
ArtNo: 88600044

Delta VFD-C 575/3/60 7.5 HP - Programmed

Delta VFD-C 575/3/60 10 HP - Programmed
ArtNo: 88600045

Delta VFD-C 575/3/60 10 HP - Programmed

Delta VFD-C 230/3/60 10 HP - Programmed
ArtNo: 88600046

Delta VFD-C 230/3/60 10 HP - Programmed

Delta VFD-C 575/3/60 15 HP - Programmed
ArtNo: 88600047

Delta VFD-C 575/3/60 15 HP - Programmed

Delta VFD-C 230/3/60 15 HP - Programmed
ArtNo: 88600048

Delta VFD-C 230/3/60 15 HP - Programmed

Delta VFD-C 575/3/60 20 HP - Programmed
ArtNo: 88600049

Delta VFD-C 575/3/60 20 HP - Programmed

Delta VFD-C 230/3/60 20 HP - Programmed
ArtNo: 88600050

Delta VFD-C 230/3/60 20 HP - Programmed

Delta VFD-C 575/3/60 25 HP - Programmed
ArtNo: 88600051

Delta VFD-C 575/3/60 25 HP - Programmed

Delta VFD-C 230/3/60 25 HP - Programmed
ArtNo: 88600052

Delta VFD-C 230/3/60 25 HP - Programmed

Delta VFD-C 575/3/60 30 HP - Programmed
ArtNo: 88600053

Delta VFD-C 575/3/60 30 HP - Programmed

Delta VFD-C 230/3/60 30 HP - Programmed
ArtNo: 88600054

Delta VFD-C 230/3/60 30 HP - Programmed

Nederman VFD 230V/3/60 1hp - Programmed
ArtNo: 88600055

Nederman VFD 230V/3/60 1hp - Programmed
