Nederman

Hose Reel 886 Stainless

Hose Reel 886 Stainless

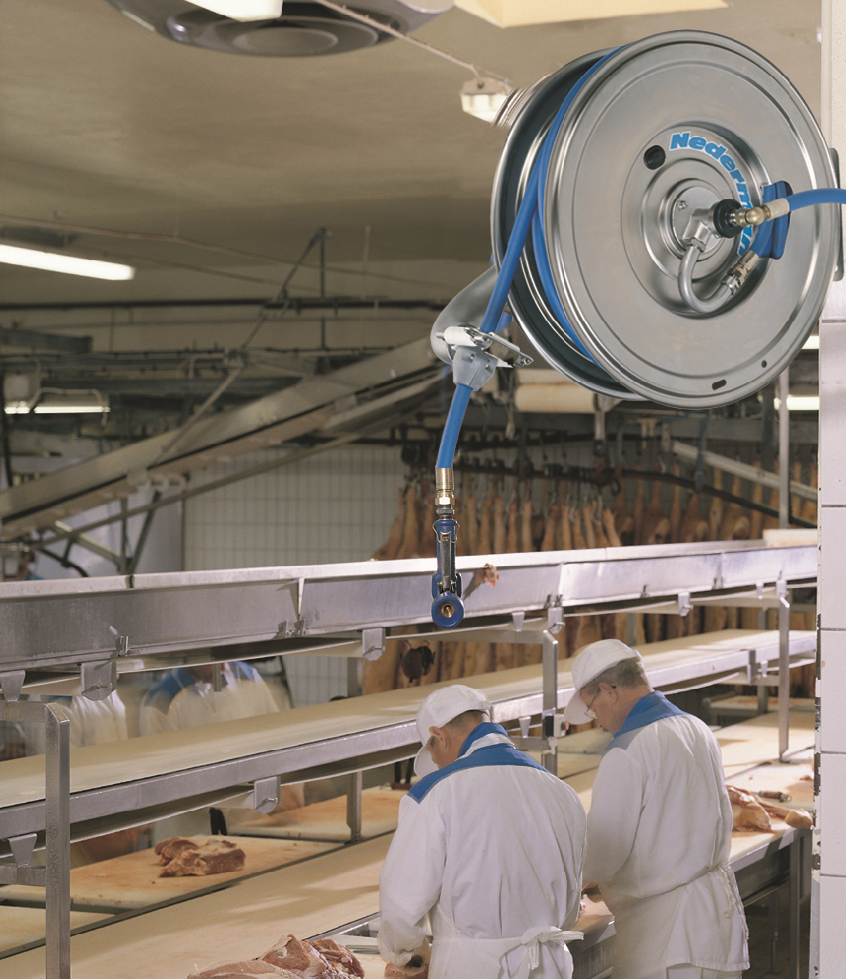

Stainless steel hose reel when corrosive resistance is required ideal for food processing industries.

This stainless steel hose reel, made entirely of stainless steel, is designed specifically for the food processing industry. It is very easy to clean thanks to rounded edges and features an easy to dismantle hose outlet, an externally mounted swivel, and a minimum number of material joints.

  • Unique design makes easy cleaning
  • Up to 25 m (82 ft.) hose capacity
  • Meets international hygienic requirement

Technical data
Certifications CE
Connection hose length (m) Not included with reel. sold separatley

Models31

    Hose reel Ser 886 for 25m1/2"-NPTF

    ArtNo: 32800386

    Colour
    Stainless
    Corrosion resistance
    Stainless steel
    Delivered with hose
    No
    Distribution hose diameter (mm)
    12.5
    Electric/Spring driven
    Spring
    Media
    Water
    Max hose length
    25
    Max working pressure (Mpa)
    10
    Note
    NPT
    Weight (kg)
    28
    Hose reel Ser 886 for 25m3/8"

    ArtNo: 30801386

    Media
    Water high pressure
    Delivered with hose
    No
    Colour
    Stainless
    Distribution hose diameter (mm)
    10
    Max working pressure (Mpa)
    150°C max 10MPa 50°C max 25MPa
    Weight (kg)
    28
    Max hose length
    25
    Corrosion resistance
    Stainless steel
    Electric/Spring driven
    Spring
    Hose reel Ser 886 for 25m1/2"

    ArtNo: 30800386

    Media
    Water
    Delivered with hose
    No
    Colour
    Stainless
    Distribution hose diameter (mm)
    12,5
    Max working pressure (Mpa)
    10
    Weight (kg)
    28
    Max hose length
    25
    Corrosion resistance
    Stainless steel
    Electric/Spring driven
    Spring
    Hose reel Ser 886 for 18m3/4"

    ArtNo: 30800186

    Media
    Water
    Delivered with hose
    No
    Colour
    Stainless
    Distribution hose diameter (mm)
    19
    Max working pressure (Mpa)
    2
    Weight (kg)
    28
    Max hose length
    18
    Corrosion resistance
    Stainless steel
    Electric/Spring driven
    Spring
    Hose reel Ser 886 for 10m1"

    ArtNo: 30802186

    Media
    Water
    Delivered with hose
    No
    Colour
    Stainless
    Distribution hose diameter (mm)
    25
    Max working pressure (Mpa)
    2
    Weight (kg)
    28
    Max hose length
    10
    Corrosion resistance
    Stainless steel
    Electric/Spring driven
    Spring
    886 reel for 18m 3/4" (19mm) hose

    ArtNo: 30805286

    Media
    Water/Steam
    Delivered with hose
    No
    Colour
    Stainless
    Distribution hose diameter (mm)
    19
    Max working pressure (Mpa)
    0,6 (Steam, 160 °C) 2,0 (Water)
    Weight (kg)
    28
    Max hose length
    18
    Corrosion resistance
    Stainless steel
    Electric/Spring driven
    Spring
    886 reel for 10m 1" (25mm) hose

    ArtNo: 30805086

    Media
    Water/Steam
    Delivered with hose
    No
    Colour
    Stainless
    Distribution hose diameter (mm)
    25
    Max working pressure (Mpa)
    0,6 (Steam, 160 °C) 2,0 (Water)
    Weight (kg)
    28
    Max hose length
    10
    Corrosion resistance
    Stainless steel
    Electric/Spring driven
    Spring
    Connection Hose (1m)

    ArtNo: 30344854

    Type of hose
    I
    Media
    Water
    Diameter, connection hose (mm)
    12,5
    Max working pressure (Mpa)
    2
    Weight (kg)
    1
    Note
    Galvanised fittings
    Connection Hose (1m)

    ArtNo: 30344852

    Type of hose
    G
    Media
    Water high pressure
    Diameter, connection hose (mm)
    10
    Max working pressure (Mpa)
    25
    Note
    With galvanized steel fittings
    Connection Hose (1m)

    ArtNo: 30373669

    Type of hose
    H
    Media
    Water high pressure
    Diameter, connection hose (mm)
    10
    Max working pressure (Mpa)
    25
    Note
    With stainless steel fittings
    Connection Hose (1m)

    ArtNo: 30373670

    Type of hose
    E
    Media
    Water, Food
    Diameter, connection hose (mm)
    12,5
    Max working pressure (Mpa)
    2
    Note
    With galvanized steel fittings
    Connection Hose (1m)

    ArtNo: 30373674

    Type of hose
    E
    Media
    Water, Food
    Diameter, connection hose (mm)
    19
    Max working pressure (Mpa)
    2
    Note
    With galvanized steel fittings
    Connection Hose (1m)

    ArtNo: 30373664

    Type of hose
    E
    Media
    Water, Food
    Diameter, connection hose (mm)
    25
    Max working pressure (Mpa)
    2
    Note
    With galvanized steel fittings
    Connection Hose (1m)

    ArtNo: 30373675

    Type of hose
    F
    Media
    Water, Food
    Diameter, connection hose (mm)
    19
    Max working pressure (Mpa)
    2
    Note
    With stainless steel fittings
    Connection Hose (1m)

    ArtNo: 30373671

    Type of hose
    F
    Media
    Water, Food
    Diameter, connection hose (mm)
    12,5
    Max working pressure (Mpa)
    2
    Note
    With stainless steel fittings
    Connection Hose (1m)

    ArtNo: 30373666

    Type of hose
    F
    Media
    Water, Food
    Diameter, connection hose (mm)
    25
    Max working pressure (Mpa)
    2
    Note
    With stainless steel fittings
    Connection Hose (1m)

    ArtNo: 30377081

    Type of hose
    N
    Media
    Water/Steam
    Diameter, connection hose (mm)
    25
    Max working pressure (Mpa)
    0,6
    Connection Hose (1m)

    ArtNo: 30377082

    Type of hose
    N
    Media
    Water/Steam
    Diameter, connection hose (mm)
    19
    Max working pressure (Mpa)
    0,6
    Distribution hose

    ArtNo: 30371900

    Type of hose
    G
    Media
    Water high pressure
    Distribution hose length (m)
    25
    Distribution hose diameter (mm)
    10
    Max working pressure (Mpa)
    25
    Note
    With galvanized steel fittings
    Distribution hose

    ArtNo: 30371953

    Type of hose
    H
    Media
    Water high pressure
    Distribution hose length (m)
    25
    Distribution hose diameter (mm)
    10
    Max working pressure (Mpa)
    25
    Note
    With stainless steel fittings
    Distribution hose

    ArtNo: 30377078

    Type of hose
    I
    Media
    Water
    Distribution hose diameter (mm)
    12,5
    Max working pressure (Mpa)
    2
    Note
    Galvanized fittings for reel 886
    Distribution hose

    ArtNo: 30371898

    Type of hose
    E
    Media
    Water, Food
    Distribution hose length (m)
    25
    Distribution hose diameter (mm)
    12,5
    Max working pressure (Mpa)
    2
    Note
    With galvanized steel fittings
    Distribution hose

    ArtNo: 30371897

    Type of hose
    E
    Media
    Water, Food
    Distribution hose length (m)
    18
    Distribution hose diameter (mm)
    19
    Max working pressure (Mpa)
    2
    Note
    With galvanized steel fittings
    Connection Hose (1m)

    ArtNo: 30373663

    Type of hose
    E
    Media
    Water, Food
    Distribution hose length (m)
    10
    Distribution hose diameter (mm)
    25
    Max working pressure (Mpa)
    2
    Note
    With galvanized steel fittings
    Distribution hose

    ArtNo: 30371951

    Type of hose
    F
    Media
    Water, Food
    Distribution hose length (m)
    25
    Distribution hose diameter (mm)
    12,5
    Max working pressure (Mpa)
    2
    Note
    With stainless steel fittings
    Distribution hose

    ArtNo: 30371950

    Type of hose
    F
    Media
    Water, Food
    Distribution hose length (m)
    18
    Distribution hose diameter (mm)
    19
    Max working pressure (Mpa)
    2
    Note
    With stainless steel fittings
    Hose Food Grade 1" 10M SS

    ArtNo: 30373665

    Type of hose
    F
    Media
    Water, Food
    Distribution hose length (m)
    10
    Distribution hose diameter (mm)
    25
    Max working pressure (Mpa)
    2
    Note
    With stainless steel fittings
    Distribution hose

    ArtNo: 30377080

    Type of hose
    N
    Media
    Water/Steam
    Distribution hose diameter (mm)
    19
    Max working pressure (Mpa)
    0,6
    Distribution hose

    ArtNo: 30377079

    Type of hose
    N
    Media
    Water/Steam
    Distribution hose diameter (mm)
    25
    Max working pressure (Mpa)
    0,6
    Hose reel Ser 886 for 18m3/4"-NPTF

    ArtNo: 32800186

    Colour
    Stainless
    Corrosion resistance
    Stainless steel
    Delivered with hose
    No
    Distribution hose diameter (mm)
    10
    Electric/Spring driven
    Spring
    Media
    Compressed air, Water
    Max hose length
    18
    Max working pressure (Mpa)
    1,5
    Weight (kg)
    28
    Hose reel Ser 886 for 25m3/8"-NPTF

    ArtNo: 32801386

    Colour
    Stainless
    Corrosion resistance
    Stainless steel
    Delivered with hose
    No
    Distribution hose diameter (mm)
    12.5
    Electric/Spring driven
    Spring
    Media
    Water high pressure
    Max hose length
    25
    Max working pressure (Mpa)
    25
    Weight (kg)
    28

Accessories for this product 14

Roller guide.
ArtNo: 30341550

Roller guide.

Pivoting Wall bracket Stainless Steel
ArtNo: 30373668

Pivoting Wall bracket RF

Water gun in chromium plated brass
ArtNo: 30400110

Water gun in chromium plated brass. Max. temperature 95°C

Water gun in stainless steel 316
ArtNo: 30400210

Water gun in stainless steel 316. Max. temperature 95°C

Water gun EX
ArtNo: 30400211

Watergun EX in stainless steel 316. Max. temperature 95°C

Water gun in stainless steel 316
ArtNo: 30400310

Water gun in stainless steel 316. Max. temperature 95°C

Swivelling coupling 3/8(m)-3/8(m)HP
ArtNo: 30431310

Swivelling coupling 3/8(m)-3/8(m)HP

Swiv. coupling 3/8(m)-3/8(m) HP SS
ArtNo: 30431410

Swiv. coupling 3/8(m)-3/8(m) HP SS

Swivl. coupl.1/2(m)-3/8(f) brass
ArtNo: 30431510

Swivl. coupl.1/2(m)-3/8(f) brass

Swivl.coupl.1/2(m)-1/2(f) brass
ArtNo: 30431610

Swivl.coupl.1/2(m)-1/2(f) brass

Swivel coupling 1/2(m)- 3/4 (f) bra
ArtNo: 30431710

Swivel coupling 1/2(m)- 3/4 (f) bra

Swivl. coupl. 1/2(m)-3/8(f) SS
ArtNo: 30431810

Swivl. coupl. 1/2(m)-3/8(f) SS

Swivl coupl. 1/2(m)-1/2(f) SS
ArtNo: 30431910

Swivl coupl. 1/2(m)-1/2(f) SS

Swivl.coupl.1/2(m)-3/4(f) SS
ArtNo: 30432010

Swivl.coupl.1/2(m)-3/4(f) SS
