Streamline Modular Hood

A modular hood system for effective containment and capture of weld fumes

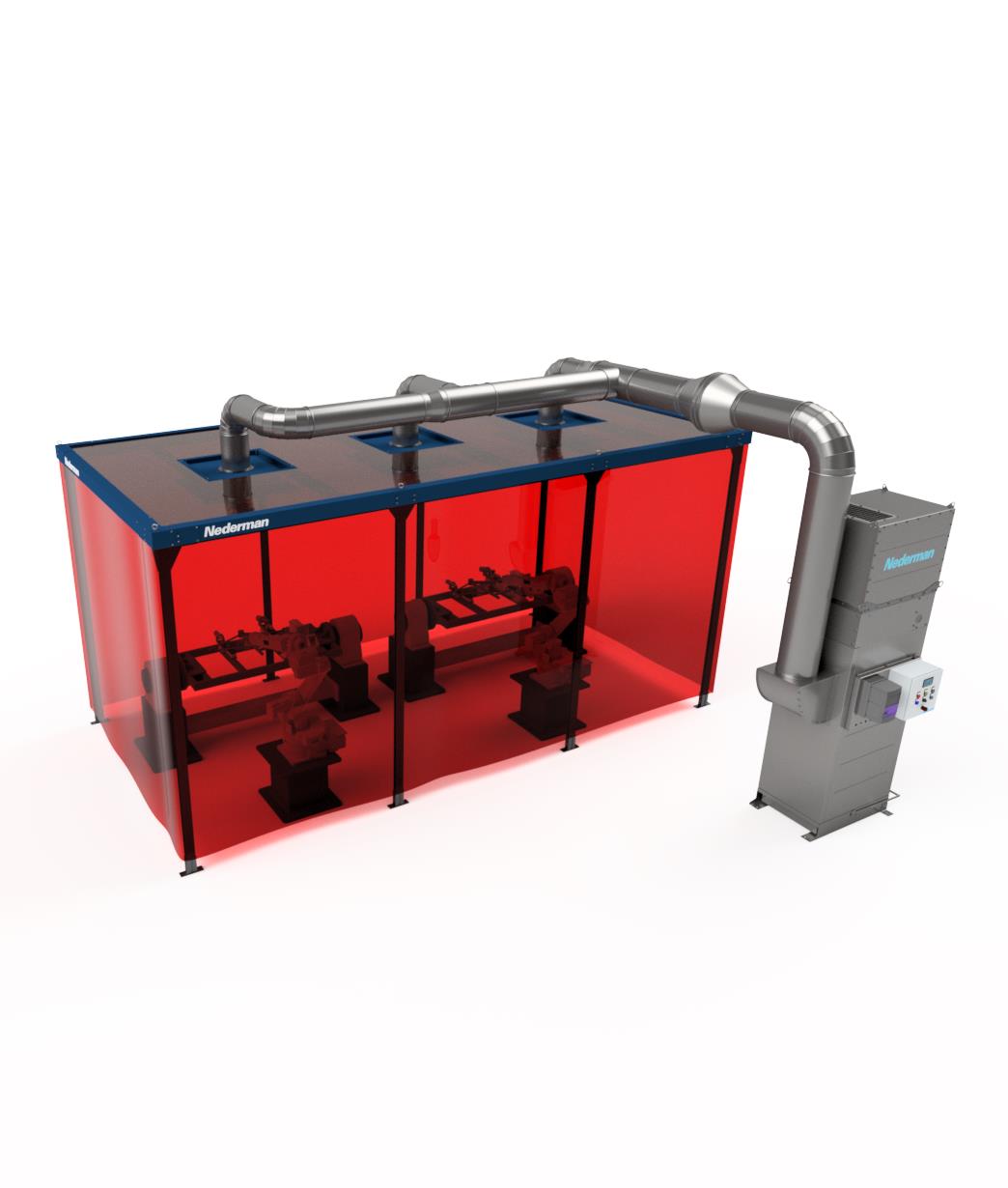

The Streamline modular welding fume extraction hood is a flexible, high-performance enclosure designed to contain and control dust, fumes and sparks generated during robotic or manual welding processes.
By preventing the spread of contaminants throughout the facility, the Streamline hood improves workers' health and safety, while reducing maintenance and cleaning costs. Its localized containment approach is both more economical and energy-efficient compared to conventional hoods or ambient air cleaning systems, significantly reducing the total air volume required.

Efficient and safe: outlet design with baffle for optimal airflow, less air volume and spark deterrence
Ergonomic: with transparent polycarbonate roof for improved visibility without added lighting
Quick and space-saving: fast and easy assembly, with low profile design and lightweight construction that enable it to be installed anywhere, minimizing the need for any reinforcements to floor or ceiling.
Versatile: modular construction with wide range of sizes, starting from 1,5 x 1,5m and with 0,5m size increments, to suit various cell and welding area dimensions.
Flexible: multiple installation options with adjustable height, outlet position and duct connection size.

Technical data
Installation	Indoor
Further technical data	Frame with an outlet (1, 2 or 3 outlets depending on the size of the frame), with a 0.4 mm thick welding curtain and the possibility of placing or suspending it.
Dimensions	Frames available in dimensions from 1.5x1.5 to 6x3m (sizes increase by 0.5m lengthwise and widthwise). Frame assembly on legs up to 3m high and on reinforced legs up to 6m. Hanging assembly possible.

Models34

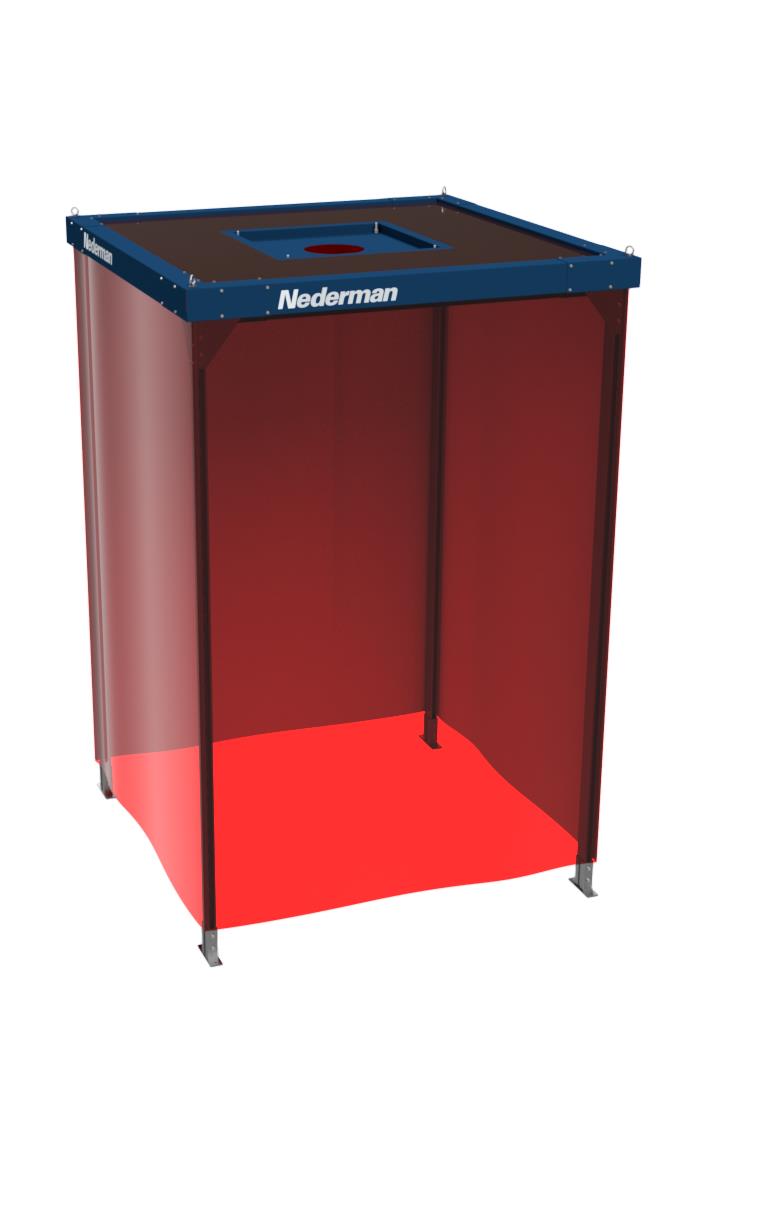

Streamline Modular Hood 1,5 x 1,5 m excl. curtains and supports

ArtNo: 73009911

Weight (kg)

75 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 2700 m3/h

Note

1 outlet ø250 mm

Streamline Modular Hood 2,0 x 1,5 m excl. curtains and supports

ArtNo: 73009912

Weight (kg)

72 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 3300 m3/h

Note

1 outlet ø280 mm

Streamline Modular Hood 2,0 x 2,0 m excl. curtains and supports

ArtNo: 73009913

Weight (kg)

89 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 3300 m3/h

Note

1 outlet ø280 mm

Streamline Modular Hood 3,0 x 1,5 m excl. curtains and supports

ArtNo: 73009914

Weight (kg)

88 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 4200 m3/h

Note

1 outlet ø280 mm

Streamline Modular Hood 3,0 x 2,0 m excl. curtains and supports

ArtNo: 73009915

Weight (kg)

105 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 4200 m3/h

Note

1 outlet ø315 mm

Streamline Modular Hood 2,5 x 1,5 m excl. curtains and supports

ArtNo: 73009950

Capacity

Max. airflow 4200 m3/h

Note

1 outlet ø315 mm

Streamline Modular Hood 2,5 x 2,0 m excl. curtains and supports

ArtNo: 73009916

Weight (kg)

101 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 4200 m3/h

Note

1 outlet ø315 mm

Streamline Modular Hood 2,5 x 2,5 m excl. curtains and supports

ArtNo: 73009917

Weight (kg)

110 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 4200 m3/h

Note

1 outlet ø315 mm

Streamline Modular Hood 2,5 x 3,0 m excl. curtains and supports

ArtNo: 73009918

Weight (kg)

113 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5200 m3/h

Note

1 outlet ø350 mm

Streamline Modular Hood 3,0 x 3,0 m excl. curtains and supports

ArtNo: 73009919

Weight (kg)

130 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5200 m3/h

Note

1 outlet ø350 mm

Streamline Modular Hood 3,5 x 1,5 m excl. curtains and supports

ArtNo: 73009920

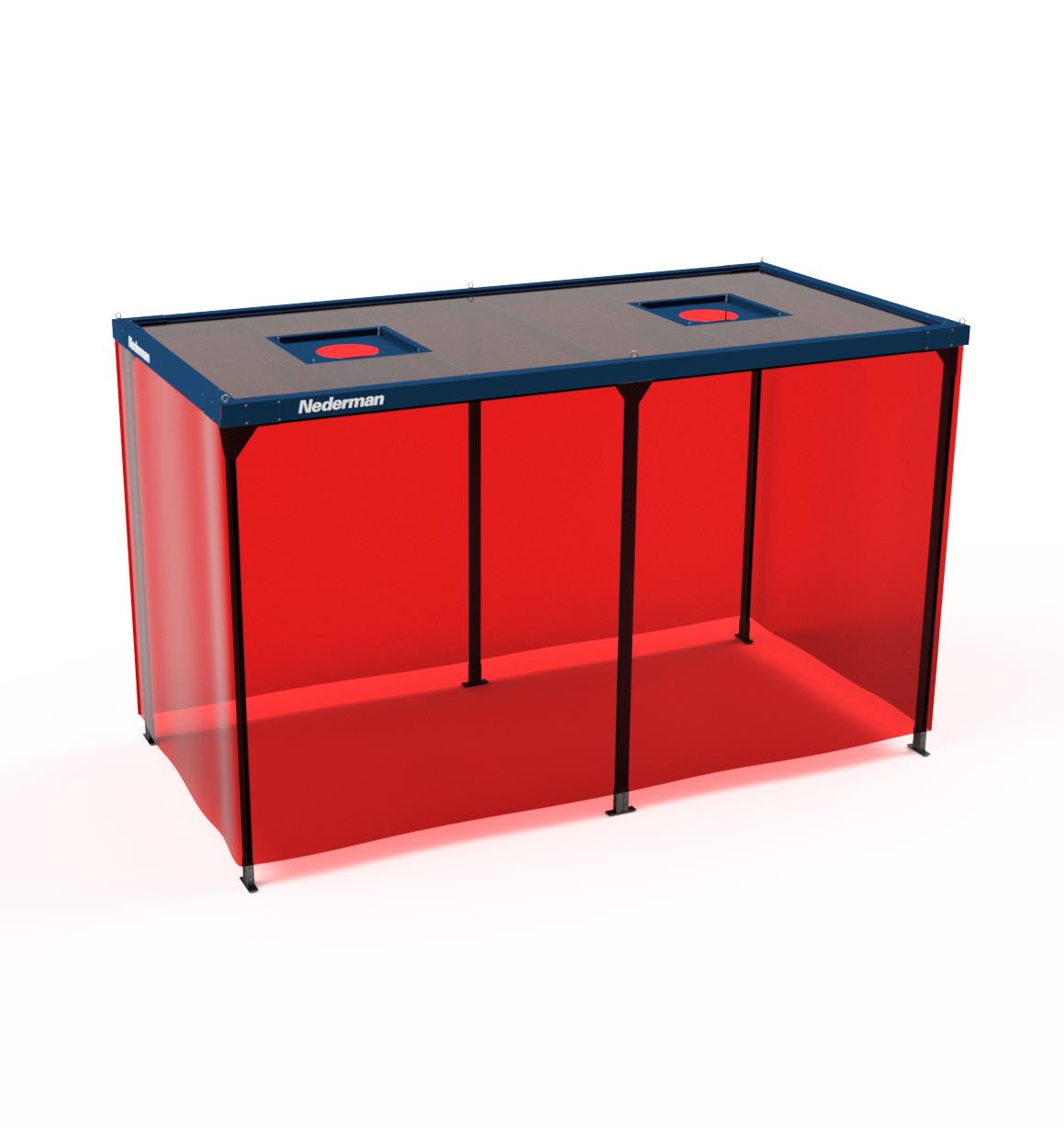

Weight (kg)

116 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5400 m3/h

Note

2 outlets ø250 mm

Streamline Modular Hood 3,5 x 2,0 m excl. curtains and supports

ArtNo: 73009921

Weight (kg)

116 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5200 m3/h

Note

1 outlet ø350 mm

Streamline Modular Hood 3,5 x 2,5 m excl. curtains and supports

ArtNo: 73009922

Weight (kg)

124 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5200 m3/h

Note

1 outlet ø350 mm

Streamline Modular Hood 3,5 x 3,0 m excl. curtains and supports

ArtNo: 73009923

Weight (kg)

140 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5200 m3/h

Note

1 outlet ø350 mm

Streamline Modular Hood 4,0 x 1,5 m excl. curtains and supports

ArtNo: 73009924

Weight (kg)

144 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5400 m3/h

Note

2 outlets ø250 mm

Streamline Modular Hood 4,0 x 2,0 m excl. curtains and supports

ArtNo: 73009925

Weight (kg)

154 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5400 m3/h

Note

2 outlets ø250 mm

Streamline Modular Hood 4,0 x 2,5 m excl. curtains and supports

ArtNo: 73009926

Weight (kg)

165 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6800 m3/h

Note

1 outlet ø400 mm

Streamline Modular Hood 4,0 x 3,0 m excl. curtains and supports

ArtNo: 73009927

Weight (kg)

175 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6800 m3/h

Note

1 outlet ø400 mm

Streamline Modular Hood 4,5 x 1,5 m excl. curtains and supports

ArtNo: 73009928

Weight (kg)

148 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 5400 m3/h

Note

2 outlets ø250 mm

Streamline Modular Hood 4,5 x 2,0 m excl. curtains and supports

ArtNo: 73009929

Weight (kg)

158 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6600 m3/h

Note

2 outlets ø280 mm

Streamline Modular Hood 4,5 x 2,5 m excl. curtains and supports

ArtNo: 73009930

Weight (kg)

169 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6800 m3/h

Note

1 outlet ø400 mm

Streamline Modular Hood 4,5 x 3,0 m excl. curtains and supports

ArtNo: 73009931

Weight (kg)

179 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6800 m3/h

Note

1 outlet ø400 mm

Streamline Modular Hood 5,0 x 1,5 m excl. curtains and supports

ArtNo: 73009932

Weight (kg)

152 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6600 m3/h

Note

2 outlets ø280 mm

Streamline Modular Hood 5,0 x 2,0 m excl. curtains and supports

ArtNo: 73009933

Weight (kg)

179 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6600 m3/h

Note

2 outlets ø280 mm

Streamline Modular Hood 5,0 x 2,5 m excl. curtains and supports

ArtNo: 73009934

Weight (kg)

181 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6600 m3/h

Note

2 outlets ø280 mm

Streamline Modular Hood 5,0 x 3,0 m excl. curtains and supports

ArtNo: 73009935

Weight (kg)

193 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6800 m3/h

Note

1 outlet ø400 mm

Streamline Modular Hood 5,5 x 1,5 m excl. curtains and supports

ArtNo: 73009936

Weight (kg)

166 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6600 m3/h

Note

2 outlets ø280 mm

Streamline Modular Hood 5,5 x 2,0 m excl. curtains and supports

ArtNo: 73009937

Weight (kg)

179 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 6600 m3/h

Note

2 outlets ø280 mm

Streamline Modular Hood 5,5 x 2,5 m excl. curtains and supports

ArtNo: 73009938

Weight (kg)

185 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 8400 m3/h

Note

2 outlets ø315 mm

Streamline Modular Hood 5,5 x 3,0 m excl. curtains and supports

ArtNo: 73009939

Weight (kg)

230 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 8600 m3/h

Note

1 outlet ø450 mm

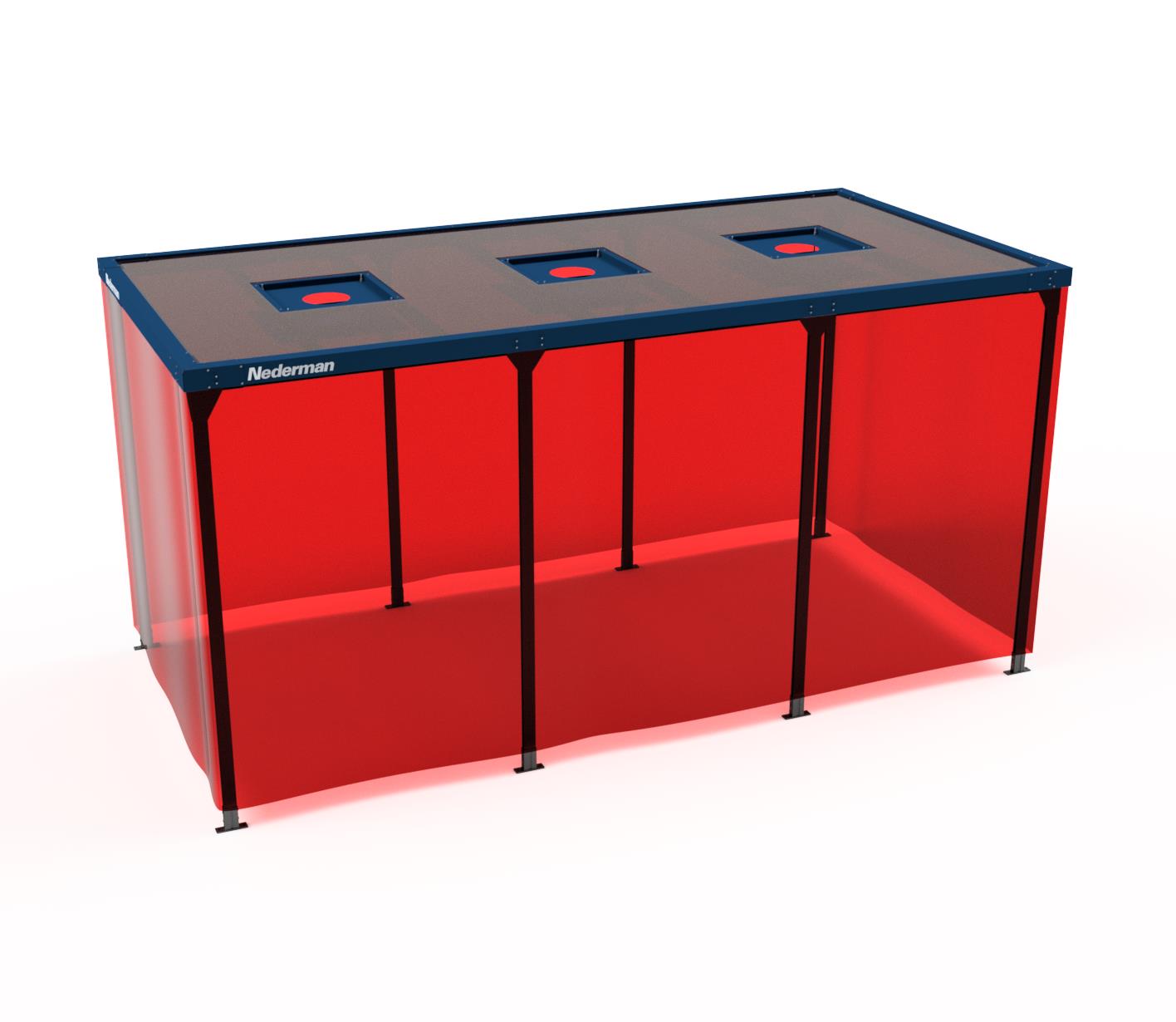

Streamline Modular Hood 6,0 x 1,5 m excl. curtains and supports

ArtNo: 73009940

Weight (kg)

170 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 8100 m3/h

Note

3 outlets ø250 mm

Streamline Modular Hood 6,0 x 2,0 m excl. curtains and supports

ArtNo: 73009941

Weight (kg)

184 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 8100 m3/h

Note

3 outlets ø250 mm

Streamline Modular Hood 6,0 x 2,5 m excl. curtains and supports

ArtNo: 73009942

Weight (kg)

197 (weight of frame, polycarbonate and outlet, excl. weight of curtain and legs)

Capacity

Max. airflow 8400 m3/h

Note

2 outlets ø315 mm

Streamline Modular Hood 6,0 x 3,0 m excl. curtains and supports

ArtNo: 73009943

Capacity

Max. airflow 8400 m3/h

Note

2 outlets ø315 mm
