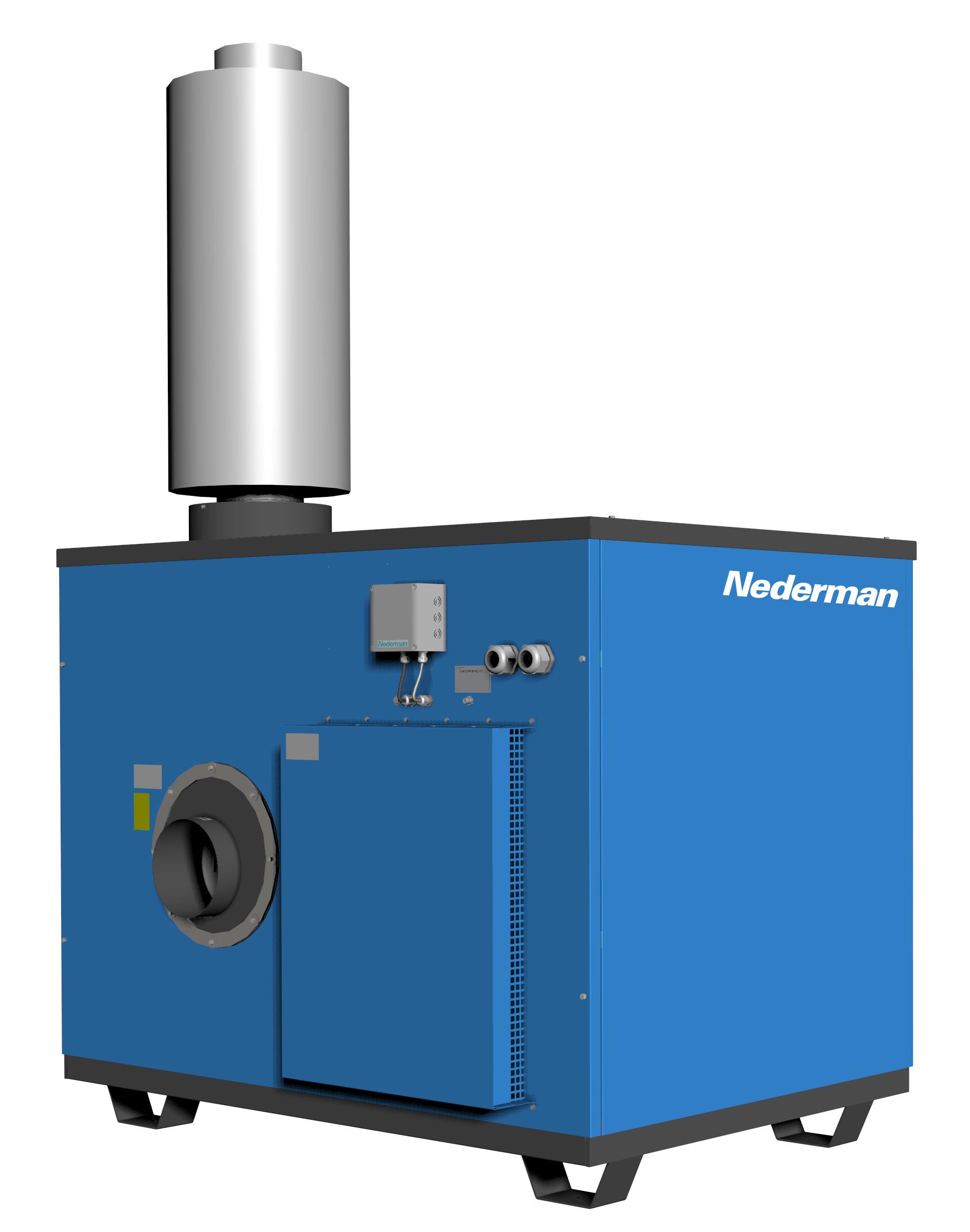

VAC 20

Low operating costs, efficient and reliable.

A VAC unit is the right choice for high vacuum extraction of welding fumes, dust from sanding and grinding operations and general clean up applications. VAC systems, a cost effective solution for better working environment, is based on a powerful vacuum unit, a modular design dust collector and a modern control unit/starter. A VAC unit is the perfect extraction source when a large number of working stations require dust extraction and when you need a flexible solution matching an expanding production. VAC units are available in several sizes. many extraction points can be in operation at the same time, served by one single unit. If you need more extraction points, any capacity can be achieved by parallel connection of two or more units. VAC units are protected from overload by a flow restrictor. VAC units are designed for use in modern systems with automatic vacuum valves. This means that the air flow can vary rapidly from max flow to zero. The power consumption adapts to the present need. The VAC unit comes to a complete stop when not used, thanks to the automatic start/stop function (option).

Reliable
Easy to install
Low noise level
Low operating cost

Technical data
Certifications	CE
Standard	Designed for ISO 21904 compliance
Installation	Outdoor, Indoor
Application	Dust, Granulate, Grit, Fumes, Swarf

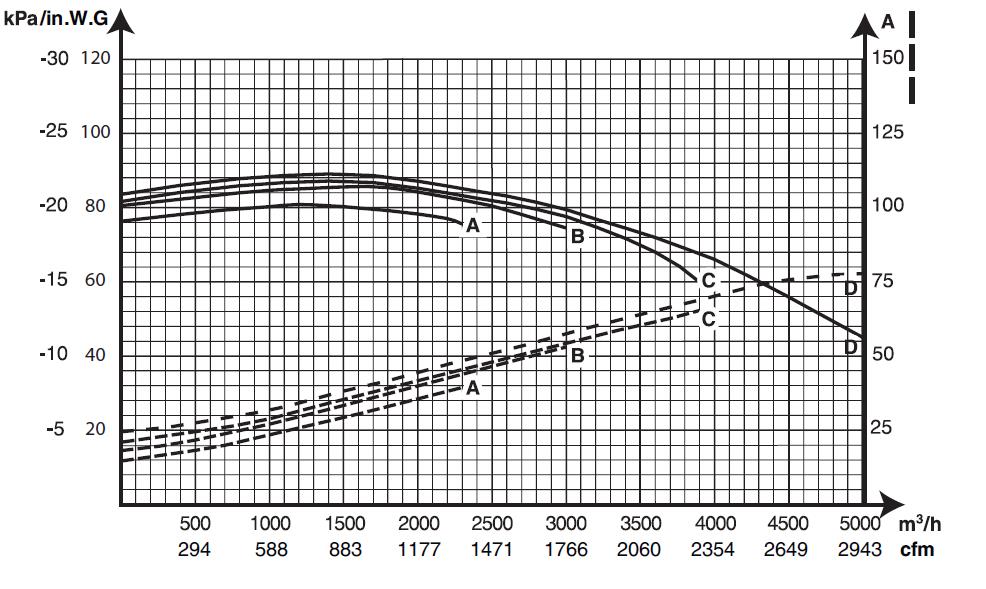

Capacity (max airflow m3/h)	VAC 20-1500, 1500 at 20 kPa VAC 20-2500, 2500 at 20 kPa VAC 20-3000, 3000 at 19 kPa VAC 20-4000, 4000 at 16,5 kPa
No of phases	3

Models24

VAC 20-1500 ASC by PLC

ArtNo: 40103102

Power Voltage (V)

220

Frequency (Hz)

Noise level (dB(A))

Max vacuum (kPa)

20,1

Weight (kg)

505

Power (kW)

Note

Motor type - INMETRO

VAC 20-1500 ASC by PLC

ArtNo: 40103122

Power Voltage (V)

380

Frequency (Hz)

Max vacuum (kPa)

20,1

Weight (kg)

505

Power (kW)

Note

Motor type - INMETRO

VAC 20-1500 ASC by PLC

ArtNo: 40103132

Power voltage (V)

400

Frequency (Hz)

Max vacuum (kPa)

20,1

Weight (kg)

505

Power (kW)

Note

Motor type - IE3

VAC 20-1500 ASC by PLC

ArtNo: 40103142

Power Voltage (V)

440

Frequency (Hz)

Noise level (dB(A))

Max vacuum (kPa)

20,1

Weight (kg)

505

Power (kW)

VAC 20-1500 ASC by PLC

ArtNo: 40103152

Power Voltage (V)

230

Frequency (Hz)

Noise level (dB(A))

75,4

Max vacuum (kPa)

13,3

Power (kW)

Note

Motor type - Premium

VAC 20-1500 ASC by PLC

ArtNo: 40103162

Power Voltage (V)

460

Frequency (Hz)

Noise level (dB(A))

Max vacuum (kPa)

20,1

Weight (kg)

546

Power (kW)

VAC 20-1500 ASC by PLC

ArtNo: 40103172

Power Voltage (V)

575

Frequency (Hz)

Noise level (dB(A))

Max vacuum (kPa)

20,1

Weight (kg)

546

Power (kW)

VAC 20-2500 ASC by PLC

ArtNo: 40103232

Power Voltage (V)

380

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

602

Power (kW)

Note

Motor type - INMETRO

VAC 20-2500 ASC by PLC

ArtNo: 40103252

Power voltage (V)

400

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

616

Power (kW)

Note

Motor type - IE3

VAC 20-2500 ASC by PLC

ArtNo: 40103272

Power Voltage (V)

230

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

614

Power (kW)

Note

Motor type - Premium

VAC 20-2500 ASC by PLC

ArtNo: 40103292

Power Voltage (V)

575

Frequency (Hz)

Max vacuum (kPa)

21,5

Power (kW)

Note

Motor type - Premium

VAC 20-3000 ASC by PLC

ArtNo: 40103352

Power Voltage (V)

220

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

628

Power (kW)

Note

Motor type - INMETRO

VAC 20-3000 ASC by PLC

ArtNo: 40103372

Power voltage (V)

400

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Power (kW)

Note

Motor type - IE3

VAC 20-3000 ASC by PLC

ArtNo: 40103382

Power Voltage (V)

440

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

628

Power (kW)

Note

Motor type - INMETRO

VAC 20-3000 ASC by PLC

ArtNo: 40103392

Power Voltage (V)

230

Frequency (Hz)

Max vacuum (kPa)

21,5

Weight (kg)

635

Power (kW)

Note

Motor type - Premium

VAC 20-3000 ASC by PLC

ArtNo: 40103402

Power Voltage (V)

460

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

635

Power (kW)

VAC 20-3000 ASC by PLC

ArtNo: 40103412

Power Voltage (V)

575

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

21,5

Weight (kg)

635

Power (kW)

Note

Motor type - Premium

VAC 20-4000 ASC by PLC

ArtNo: 40103462

Power Voltage (V)

220

Frequency (Hz)

Max vacuum (kPa)

Weight (kg)

663

Power (kW)

Note

Motor type - INMETRO

VAC 20-4000 ASC by PLC

ArtNo: 40103482

Power Voltage (V)

380

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

Power (kW)

VAC 20-4000 ASC by PLC

ArtNo: 40103492

Power Voltage (V)

400

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

Weight (kg)

698

Power (kW)

Note

Motor type - IE1/EFF2

VAC 20-4000 ASC by PLC

ArtNo: 40103502

Power Voltage (V)

440

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

Weight (kg)

663

Power (kW)

VAC 20-4000 ASC by PLC

ArtNo: 40103512

Power Voltage (V)

230

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

Weight (kg)

786

Power (kW)

VAC 20-4000 ASC by PLC

ArtNo: 40103522

Power Voltage (V)

460

Frequency (Hz)

Max vacuum (kPa)

Power (kW)

Note

Motor type - Premium

VAC 20-4000 ASC by PLC

ArtNo: 40103532

Power Voltage (V)

575

Frequency (Hz)

Noise level (dB(A))

74,5

Max vacuum (kPa)

Weight (kg)

786

Power (kW)

Note

Motor type - Premium

VAC 20

Low operating costs, efficient and reliable.

VAC 20-1500 ASC by PLC

VAC 20-1500 ASC by PLC

VAC 20-1500 ASC by PLC

VAC 20-1500 ASC by PLC

VAC 20-1500 ASC by PLC

VAC 20-1500 ASC by PLC

VAC 20-1500 ASC by PLC

VAC 20-2500 ASC by PLC

VAC 20-2500 ASC by PLC

VAC 20-2500 ASC by PLC

VAC 20-2500 ASC by PLC

VAC 20-3000 ASC by PLC

VAC 20-3000 ASC by PLC

VAC 20-3000 ASC by PLC

VAC 20-3000 ASC by PLC

VAC 20-3000 ASC by PLC

VAC 20-3000 ASC by PLC

VAC 20-4000 ASC by PLC

VAC 20-4000 ASC by PLC

VAC 20-4000 ASC by PLC

VAC 20-4000 ASC by PLC

VAC 20-4000 ASC by PLC

VAC 20-4000 ASC by PLC

VAC 20-4000 ASC by PLC
