S-Series Spare Parts & Accessories

S-Series Shaker - Enhanced Cleaning, Safer Maintenance and Lower Costs

A shaker filter cleaning system improves system performance and simplifies maintenance. It provides a more consistent and effective filter bag cleaning than traditional manual techniques resulting in increased machine suction, extended filter life and improved operational safety. You can retrofit existing equipment with a shaker system that is available in manual, mechanical or automatic actuator models. This is an ideal solution for heavy loading applications including fine wood or sawdust, plastic or paper dust applications.

Manual - (2) handle cutouts in the shaker plate are used to manually move the grid back and forth.
Mechanical - A push-button switch actuates a pneumatic cylinder attached to the shaker plate.
Automatic - Upon fan shut-down, a cleaning sequence is initiated with a pneumatic cylinder attached to the shaker plate

Models & Specifications

Model	Part Number	Actuator Style	Pneumatic Cylinder	Voltage (v) @60 Hz	Compressed Air Supply
S-500	89101071	Manual	---	---	---
	89101072	Mechanical	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101073	Automatic	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101074	Automatic	Included	575 V/3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
S-750 / S-1000	89101075	Manual	---	---	---
	89101076	Mechanical	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101077	Automatic	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101079	Automatic	Included	575 V/3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)

Shake Upgrade/Conversation Kits	Part Number
Manual to Mechanical	89101079
Manual to Automatic - 208-230V/ 460V	89101080

Shaker Spare Parts	Part Number
Shut Off Valve (Shaker Kit replacement)	89101082
Regulator & Filter Combo (replacement)	89101083
Automatic Shake Pneumatic Cylinder	89201080
Mechanical Actuator	89201085
Solenoid Valve	89201086

Loading component...

Nederman, spécialiste de l'aspiration et de la filtration

Spare Part Search

Find the spare parts you need for your Nederman products and solutions.

Loading component...

Contact us today!

Turn-key lightweight dust collection solution for industrial applications including woodworking

Loading component...

Learn more about our new S-Shaker.

Loading component...

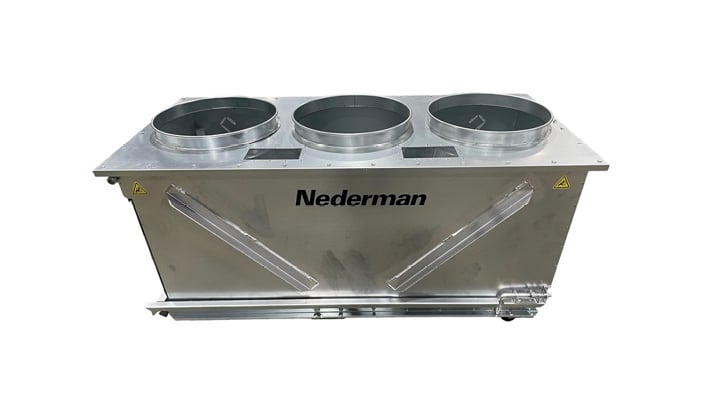

Upgrade to a dump bin and save valuable production time!

Increased capacity by 80% compared to plastic waste disposal bags
Simple quick clamp for easy an clean maintenance
Easy forklift removal for worker safety
Easy "tilt-to-empty" design for simple waste disposal

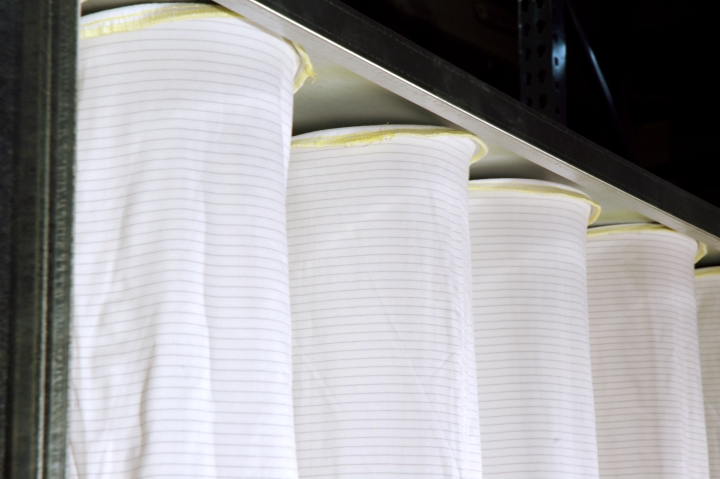

Nederman’s SUPERBAG - The Heart of the System

Delivers high efficiency, low energy consumption, combustible dust safety and extended life

Achieve recommended dust emission levels and improved ambient air
Low pressure drop requires less energy
Durable construction with seamless, woven construction
Reduced risk of fire and explosion with anti-static woven carbon fibers
