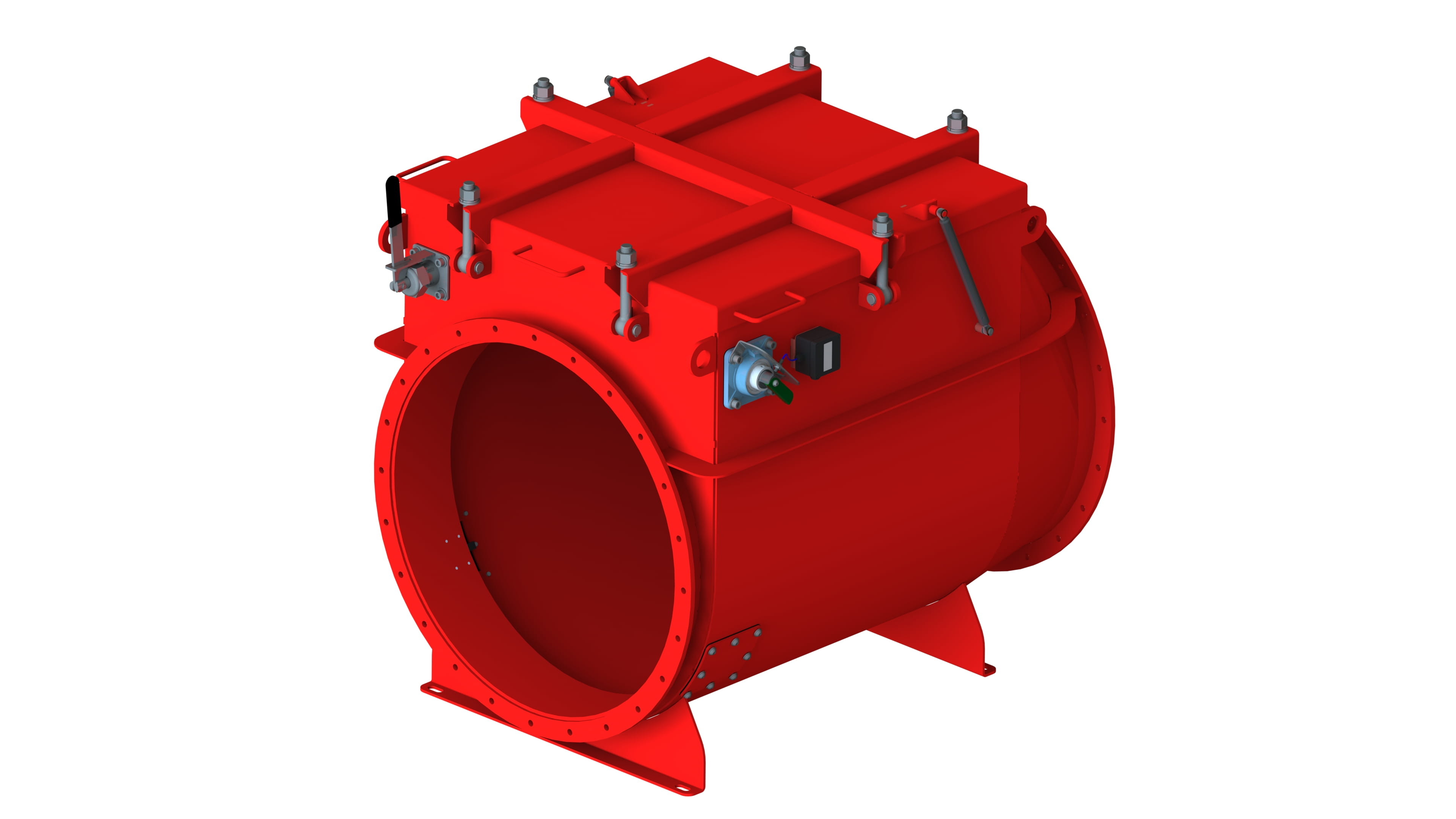

Nederman has a wide range of Explosion Isolation Flap (EIF) valves which are used in combustible dust applications to prevent a pressure wave created inside a dust collector due to an explosion from traveling upstream back to the work area the dust was extracted from, protecting the worker, machinery and even the facility.
Nederman is the leader in handling combustible dusts from the point of extraction all the way through filtration and safe handling of the collected dust. In fact, Nederman designs and manufactures not only ATEX approved dust collectors, but also manufactures and selects ATEX tested and certified EIFs that are specifically designed to the same high quality standards as our dust collectors. This ensures that all components of a Nederman combustible dust system work optimally together to provide manufacturers with confidence of a safe system.
Nederman expands its explosion isolation flap (EIF) valve offering with new B-flap 1, providing one of the largest EIF ranges in the industry. B-flap 1 was tested to EN16447:2014, the ATEX standard that EIF valves are certified to, and fully replaces original B-flap. B-flap 1 now provides EIF protection for dust collection systems filtering St1 metal dusts and St1/St2 non-metallic dusts, for duct diameters from sizes 100-400mm (4 to 16 inch). For some dust collector installations, including central high vacuum systems with strong reverse air cleaning, B-flap 1 offers a fixed open flap design that does not prematurely close and lock during the filter cleaning.

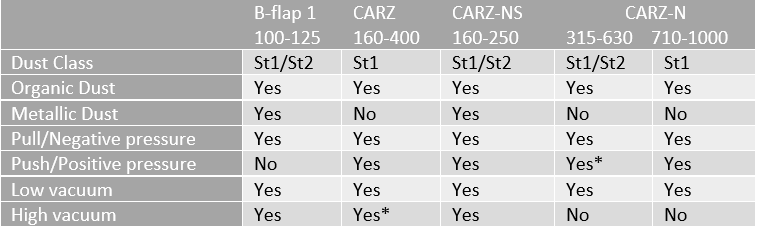

When selecting the correct EIF, several parameters need to be understood and it all starts with the type and size system being installed. Nederman offers one of the largest ranges of dust collectors to fit almost any combustible dust application and this requires that EIF valves are available to fit the different needs. Whether extraction is done through high vacuum or low vacuum extraction, negative pressure (pull) or positive pressure (push) system design, or indoors or outdoors, Nederman has combustible dust system solutions and EIF valves to fit the application need.
Contact Nederman for assistance in selecting the correct EIF valve for your dust collection system or to provide assistance in designing your complete combustible dust, dust collection system. Nederman has a team of combustible dust experts who can evaluate your need and provide you with the right equipment to protect your workers, your machinery and your facility.
Many dusts are combustible, some that we do not expect. In the video below, watch us test several wood dust samples to see what happens when an ignition source is added to airborne dust.
We have extensive experience of various challenges in the different industries and our experts are very skilled, helpful and professional. With us, you can feel secure that we take care of you and your needs. You are always welcome to contact us regardless if you have a short question or a more complex and complicated one. A warm welcome to Nederman.
