S-Series Spare Parts & Accessories

S-Series Shaker - Enhanced Cleaning, Safer Maintenance and Lower Costs

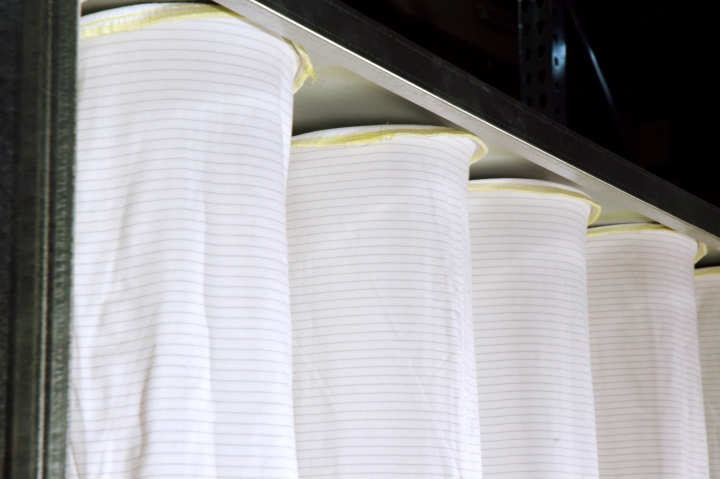

A shaker filter cleaning system improves system performance and simplifies maintenance. It provides a more consistent and effective filter bag cleaning than traditional manual techniques resulting in increased machine suction, extended filter life and improved operational safety. You can retrofit existing equipment with a shaker system that is available in manual, mechanical or automatic actuator models. This is an ideal solution for heavy loading applications including fine wood or sawdust, plastic or paper dust applications.

• Manual - (2) handle cutouts in the shaker plate are used to manually move the grid back and forth.
• Mechanical - A push-button switch actuates a pneumatic cylinder attached to the shaker plate.
• Automatic - Upon fan shut-down, a cleaning sequence is initiated with a pneumatic cylinder attached to the shaker plate

Models & Specifications



Model	Part Number	Actuator Style	Pneumatic Cylinder	Voltage (v) @60 Hz	Compressed Air Supply
S-500	89101071	Manual	---	---	---
	89101072	Mechanical	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101073	Automatic	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101074	Automatic	Included	575 V/3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
S-750 / S-1000	89101075	Manual	---	---	---
	89101076	Mechanical	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101077	Automatic	Included	208-230/460 V / 3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)
	89101079	Automatic	Included	575 V/3 Phase	0.5 SCFM @ 90 psi 3/8" NPT (min)





Shake Upgrade/Conversation Kits	Part Number
Manual to Mechanical	89101079
Manual to Automatic - 208-230V/ 460V	89101080
