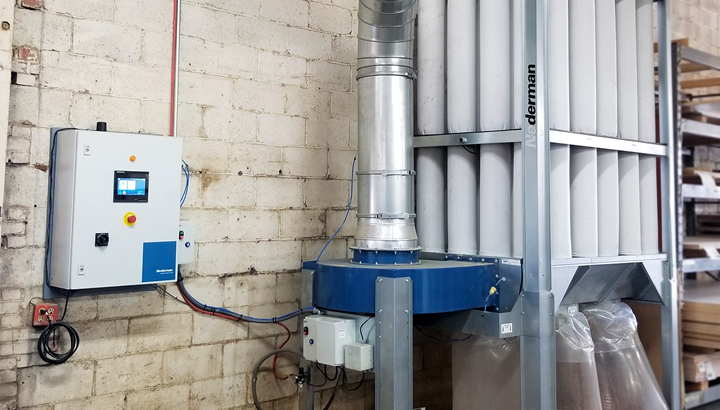

The S-Series dust collector is an enclosure-less, silent and simple to set up dust collector for your wood dust collection needs. Ideal for indoor installation with an upgradable design, the S-Series is available in three sizes, the S-500, S-750 and S-1000 with an operating capacity of up to 5,000 CFM. The S-Series is compliant with NFPA combustible dust regulations. The fan operates at a low rpm resulting in quieter operation compared to competing indoor dust collection systems. It is equipped with the Super Bag filter which is safe for use with wood dust and is 99% efficient.

Applications for wood, paper, plastic and other lightweight bulk materials include:

• High-speed routing
• Sawing and cutting
• Single-cell manufacturing
• After-filters

S-Series Features:

• Three or single phase
• Easy installation
• Small footprint
• Quiet operation
• Bag material collection - barrels or bins
• Multiple waste collection options
• Patented SuperBags (99.9% efficiency)

View product specifications here.

Why S-Series?

Silent operating wood dust collector with enhanced cleaning and maintenance.

Reliable and Effective Filtration

The S-Series is 99% efficient in filtering wood, paper, and plastic dust applications using the SuperBag filters with thousands of installations worldwide.

Upgradable Design

The S-Series can be updated to take advantage of automatic shaker cleaning options with modular components for turn-key installation on new or existing S-Series units.

Reduced Cost of Ownership

Prolonged filter life, low pressure losses and efficient filter cleaning reduce operating expenses.

Safety & Compliance

Wood dust collection under 5,000 CFM capacity:

• Meets the definition of an enclosureless dust collector per NFPA 660-2025, Section 3.3.5.4 (formerly NFPA 664, Section 3.3. 12.2).
• Complies with the requirements NFPA 660:2025, Section 24.9.4.4.4 and when installed per Section 24.9.4.4.5(7) (formerly NFPA 664, Sections 9.3.3.2.6.4 and 9.3.4(7))

Combustible solids collection such as plastics under 5,000 CFM capacity:

• Meets the definition of an enclosureless dust collector per NFPA 660:2025, Section 3.3.5.4 (formerly NFPA 654, Section 3.3.21)
• Complies with the requirements and when installed per NFPA 660:2025, Sections 25.9.4.4.4 and 25.9.4.4.5, when the spark-resistant fan option is included (formerly NFPA 654, Section 9.3.13.1.1.2(4))

Read more about NFPA compliance with enclosureless dust collectors here.

Combustible Dust Experts

Nederman is a global leader for ATEX and NFPA compliant dust collection solutions. Our comprehensive approach throughout the design, installation and maintenance processes sets us apart. Nederman not only manufactures compliant products, but our sales and technical support teams go through rigorous, annual training and follow a strict process to ensure combustible dust standards are being followed.



Contact Nederman to learn more
