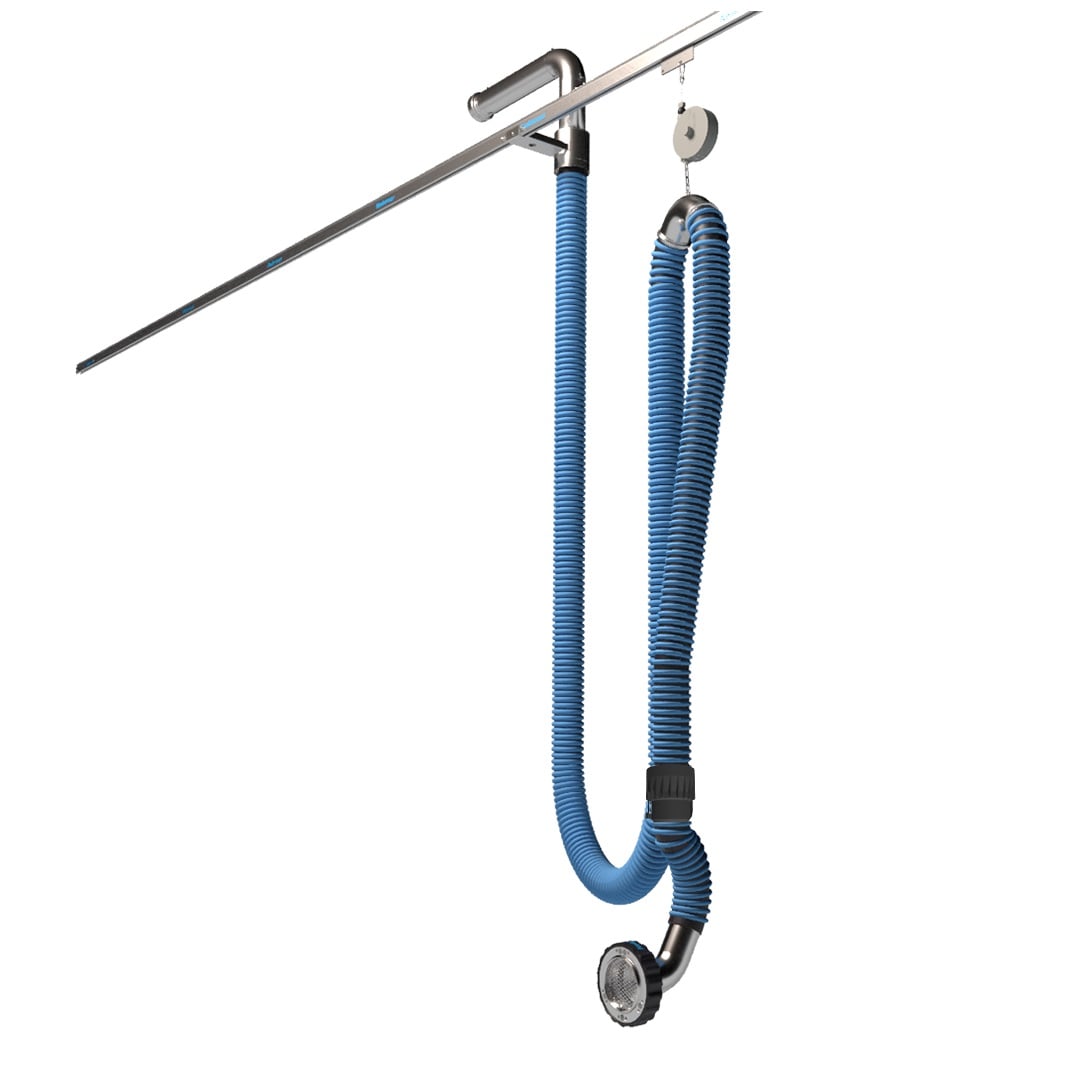

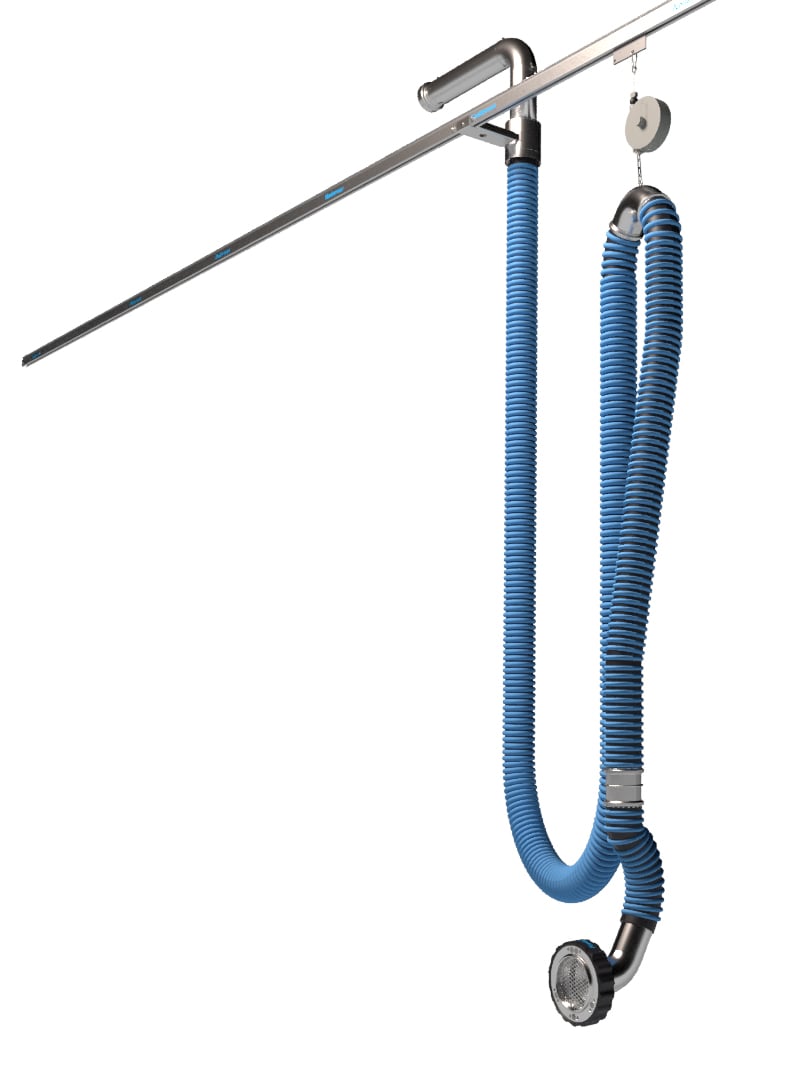

MAX Track ST Direct Connect Exhaust Extraction

The MAX Track ST exhaust solution is designed with the MagnaTrack and trolley system and our new MAX Nozzle. The MAX nozzle connects directly to a robust adapter secured to the vehicle tailpipe and disconnects as the vehicle exits the bay. Features a patent pending design that induces ambient air to cool both the airstream and connection magnets reducing wear and tear and maintenance needs for the system.

  • Suitable for back in station arrangements
  • Supports (1) vehicles per bay
  • Ideal for station with low frequency dispatch
  • Available with 4” or 6” exhaust hose diameters and a variety of tailpipe adapter sizes for tailored air flow to different types of apparatus

Technical data
Installation Indoor
Hose Diameter (in) 4 or 6
Hose length (ft.) Varies
Operating Temperature up to 510 C (950 F)

Models14

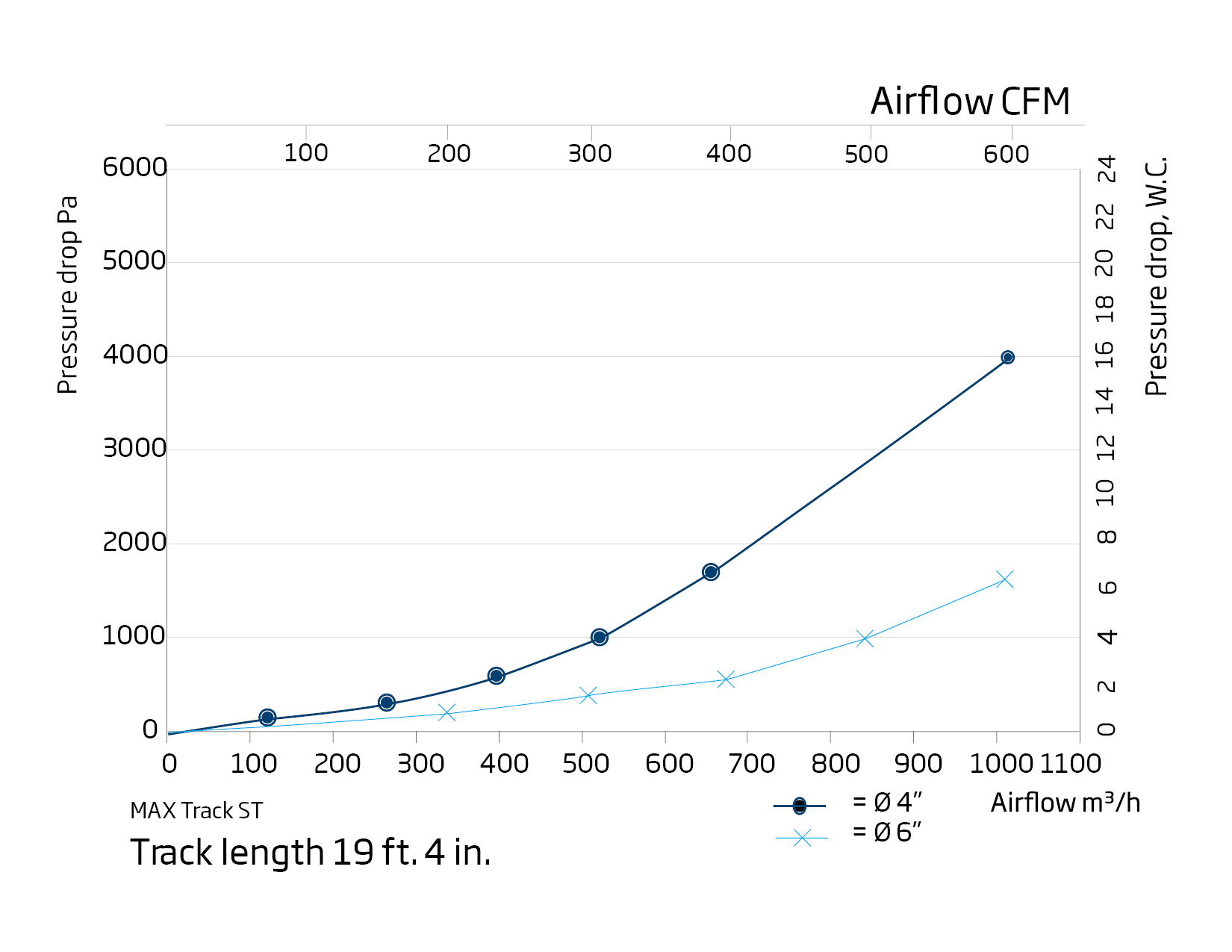

    MAX Track ST, Track 6 m (19.6 inch)

    ArtNo: 89299234

    Diameter, hose (in)
    4
    Hose length (ft)
    20

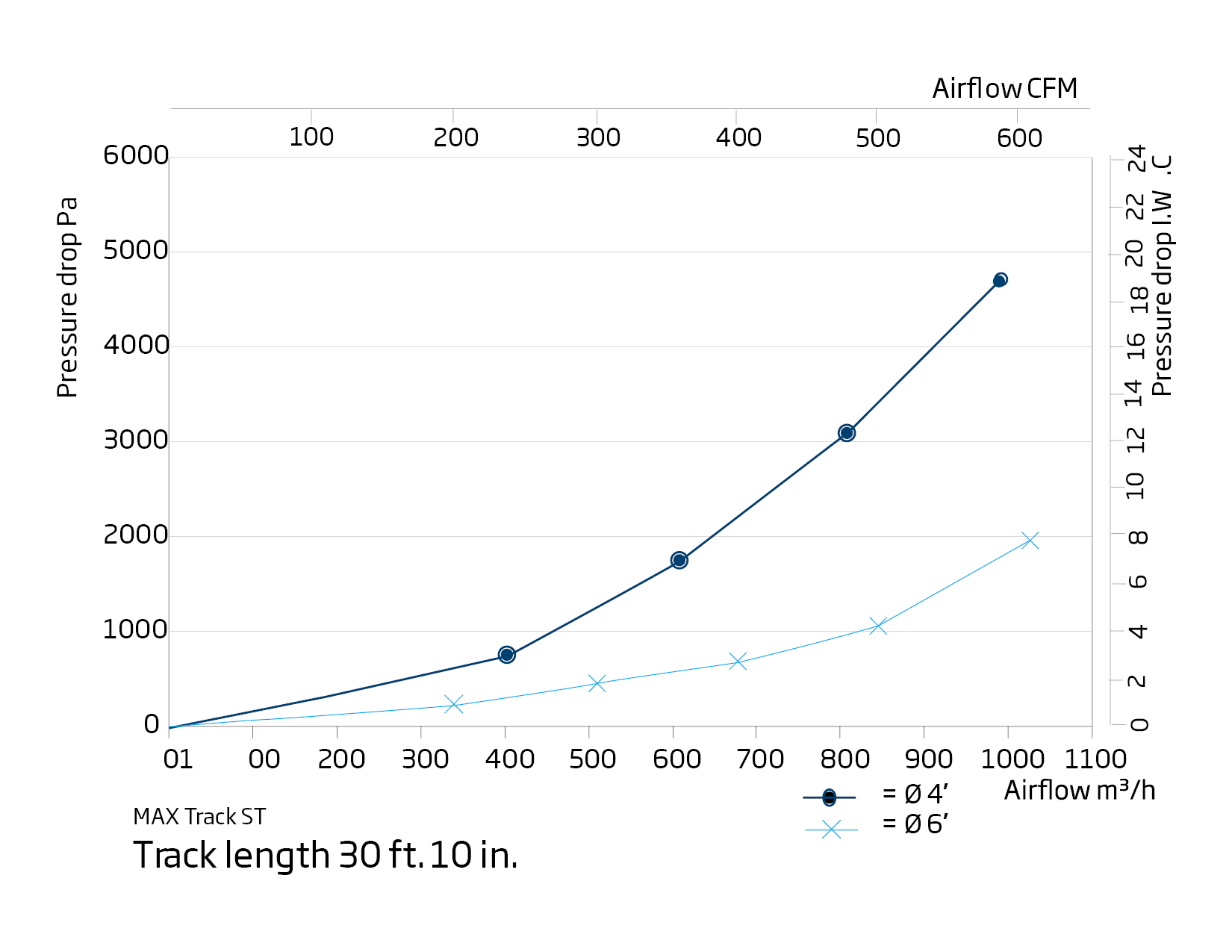

    MAX Track ST, Track 9 m (29.5 in.)

    ArtNo: 89299229

    Diameter, hose (in)
    4
    Hose length (ft)
    31
    MAX Track ST - (1) Drop - Track = 40 ft (12 m) - Hose Length = 28 ft (8.5 m) - 6 in (150 mm) Nozzle with 4 in (100 mm) Take-Off

    ArtNo: 89299225

    Diameter, hose (in)
    4
    Hose length (ft)
    28
    MAX Track ST - Track = 20 ft (6 m) - Hose Length = 24 ft (7.3 m) - 4 in (100 mm) Nozzle with 4 in (100 mm) Take-Off

    ArtNo: 89299261

    MAX Track ST - Track = 30 ft (9 m) - Hose Length = 28 ft (8.5 m) - 4 in (100 mm) Nozzle with 4 in (100 mm) Take-Off

    ArtNo: 89299262

    MAX Track ST - Track = 40 ft (12 m) - Hose Length = 28 ft (8.5 m) - 4 in (100 mm) Nozzle with 4 in (100 mm) Take-Off

    ArtNo: 89299263

    MAX Track ST - Track = 20 ft (6 m) - Hose Length = 24 ft (7.3 m) - 6 in (150 mm) Nozzle with 6 in (150 mm) Take-off

    ArtNo: 89299258

    MAX Track ST - Track = 30 ft (9 m) - Hose Length = 28 ft (8.5 m) - 6 in (150 mm) Nozzle with 6 in (150 mm) Take-off

    ArtNo: 89299259

    40 ft Track with 28 ft hose length, One Drop, 6 inch Nozzle with 6 inch Take-Off

    ArtNo: 89299260

    Tailpipe Adapter Kit - 3 in (75 mm) ID and 4 in (100 mm) Hood - Supplied with clamp

    ArtNo: 89299201

    Tailpipe Adapter Kit - 3.5 in (89 mm) ID and 4 in (100 mm) Hood - Supplied with clamp

    ArtNo: 89299202

    Tailpipe Adapter Kit - 4 in (100 mm) ID and 4 in (100 mm) Hood - Supplied with clamp

    ArtNo: 89299203

    Tailpipe Adapter Kit - 5 in (125 mm) ID and 6 in (150 mm) Hood - Supplied with clamp

    ArtNo: 89299204

    Tailpipe Adapter Kit - 6 in (150 mm) ID and 6 in (150 mm) Hood - Supplied with clamp

    ArtNo: 89299205

Accessories for this product 33

Safety coupling Diameter = 4 in (100 mm) Accessorie for extraction unit 920.
ArtNo: 20373797

Safety coupling Diameter = 4 in (100 mm) Accessorie for extraction unit 920.

Safety coupling Diameter = 6 in (150 mm) Accessorie for extraction unit 920.
ArtNo: 20373798

Safety coupling Diameter = 6 in (150 mm) Accessorie for extraction unit 920.

AutoStart Transmitter (One for each vehicle)
ArtNo: 89115580

Vehicle Exhaust System AutoStart Transmitter (One for each vehicle) GEN 2B

Auto Start/stop radio receiver Gen 2b
ArtNo: 89115581

MAX Track System Auto Start/Stop Receiver Gen-2 & Gen-2B

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 1 PH / 60 Hz
ArtNo: 89116050

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 1 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 3 PH / 60 Hz
ArtNo: 89116051

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 3 PH / 60 Hz

5HP/1PH/208-230V Auto-Start Control Console
ArtNo: 89116052

Fan Motor Starter Auto Start Control Panel - 5 HP / 208-230 V / 1 PH / 60 Hz w/ASIbd

Fan Motor Starter Auto Start Control Panel - 5 HP / 208-230 V / 3 PH / 60 Hz
ArtNo: 89116053

Fan Motor Starter Auto Start Control Panel - 5 HP / 208-230 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 7.5 HP/ 208-230 V / 1 PH / 60 Hz
ArtNo: 89116054

Fan Motor Starter Auto Start Control Panel - 7.5 HP/ 208-230 V / 1 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 208-230 V - 3 PH / 60 HZ
ArtNo: 89116055

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 208-230 V - 3 PH / 60 HZ

Fan Motor Starter Auto Start Control Panel - 10 HP / 208-230 V / 3 PH / 60 Hz
ArtNo: 89116056

Fan Motor Starter Auto Start Control Panel - 10 HP / 208-230 V / 3 PH / 60 Hz

10HP/3PH/460V Auto-Start Control Console
ArtNo: 89116059

Fan Motor Starter Auto Start Control Panel - 10 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 5 HP / 460 V / 3 PH / 60 Hz
ArtNo: 89116060

Fan Motor Starter Auto Start Control Panel - 5 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 3 HP / 460 V / 3 PH / 60 Hz
ArtNo: 89116061

Fan Motor Starter Auto Start Control Panel - 3 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 460 V / 3 PH / 60 Hz
ArtNo: 89116062

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 15 HP / 208 V / 3 PH / 60 Hz with ASIb
ArtNo: 89116063

Fan Motor Starter Auto Start Control Panel - 15 HP / 208 V / 3 PH / 60 Hz with ASIb

Receiver Gen II US
ArtNo: 89116065

Receiver Gen II US

100mm (4 ft) x 0.6 m (2 ft) HD Lower
ArtNo: 89295367

MAX Nozzle Systems Lower Hose with Blue Helix - 4 in (100 mm) x 2 ft (0.6 m)

100mm (4 in) x 1.8m (6 ft.) HD Middle
ArtNo: 89295368

MAX Nozzle Systems Middle Extraciton Hose w/ Blue Helix - 4 in (100 mm) x 6 ft (3 m)

100mm (4 in.) x 6m (20 ft.) HD Middle
ArtNo: 89295369

MAX Nozzle Systems Upper Extraciton Hose w/ Blue Helix - 4 in (100 mm) x 20 ft (6 m)

150mm (6 in) x 0.6 m (2 ft) HD Lower
ArtNo: 89295370

MAX Nozzle Systems Lower Hose with Blue Helix - 6 in (150 mm) x 2 ft (0.6 m)

150mm (6 in) x 1.8 m (6 ft) HD Middle
ArtNo: 89295371

MAX Nozzle Systems Middle Extraciton Hose w/ Blue Helix - 6 in (150 mm) x 6 ft (3 m)

150mm (6 in) x6 m (20 ft) HD Upper
ArtNo: 89295372

MAX Nozzle Systems Upper Extraciton Hose w/ Blue Helix - 6 in (150 mm) x 20 ft (6 m)

100mm (4 in.) x 5m (16 ft.) Silicone Nomex w/blue helix
ArtNo: 89295374

MAX Nozzle Systems Silicone Nomex w/Blue Helix - 4 in (100 mm) x 16 ft (5 m)

150mm (6 in) x 5m (16 ft) Silicone Nomex
ArtNo: 89295375

MAX Nozzle Systems Silicone Nomex w/Blue Helix - 6 in (150 mm) x 16 ft (5 m)

MAX Nozzle Systems AutoStart Control Panel - 2 HP / 208 V / 1 PH / 60 Hz
ArtNo: 89298071

MAX Nozzle Systems AutoStart Control Panel - 2 HP / 208 V / 1 PH / 60 Hz

MAX Nozzle, 6 in (150 mm) nozzle to 6 in (150 mm) hose connection
ArtNo: 89299212

MAX Nozzle, 6 in (150 mm) nozzle to 6 in (150 mm) hose connection

MAX Nozzle, 4 in (100 mm) nozzle to 4 in (100 mm) hose connection
ArtNo: 89299213

MAX Nozzle, 4 in (100 mm) nozzle to 4 in (100 mm) hose connection

Rubber Bumper, 6 in. MAX Nozzle
ArtNo: 89299217

Rubber Bumper for 6 in (150 mm) MAX Nozzle

Diaphragm, 6 in. MAX Nozzle
ArtNo: 89299219

6 in (150 mm) MAX Nozzle Gasket

Diaphragm, 4 in. MAX Nozzle
ArtNo: 89299220

4 in (100 mm) MAX Nozzle Gasket

Contact Plate, 4 in. Nozzle Connect MAX Nozzle
ArtNo: 89299221

4 in (100 mm) MAX Nozzle Contact Plate

Contact Plate, 6 in. Nozzle Connection MAX Nozzle
ArtNo: 89299222

6 in (150 mm) MAX Nozzle Contact Plate
