MFS, Modular Filter System
Ideal for your capture at source extraction system

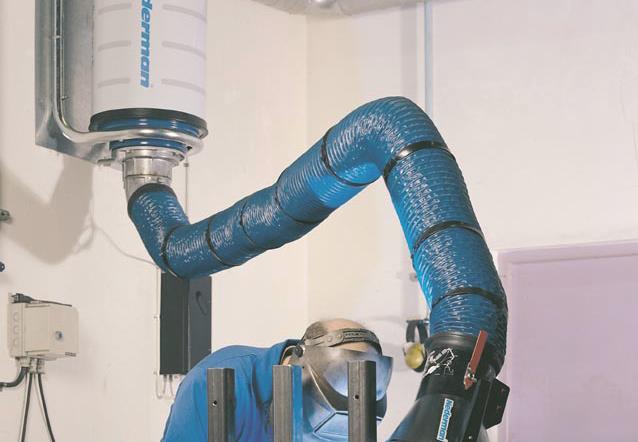

The Modular Filter System simply solves the need of cleaning the air from particles, smoke, dust, gases and smells. The modular construction means that the system is suitable for both small workspaces and larger manufacturing works. By supplementing with Nederman Fans, extraction arms and control boxes, you can build up a solution for every workplace.Typical applications are TIG and spot welding, laboratory extraction, food ingredients and odours and chemical handling.
-
Simple and quick installation – few parts
-

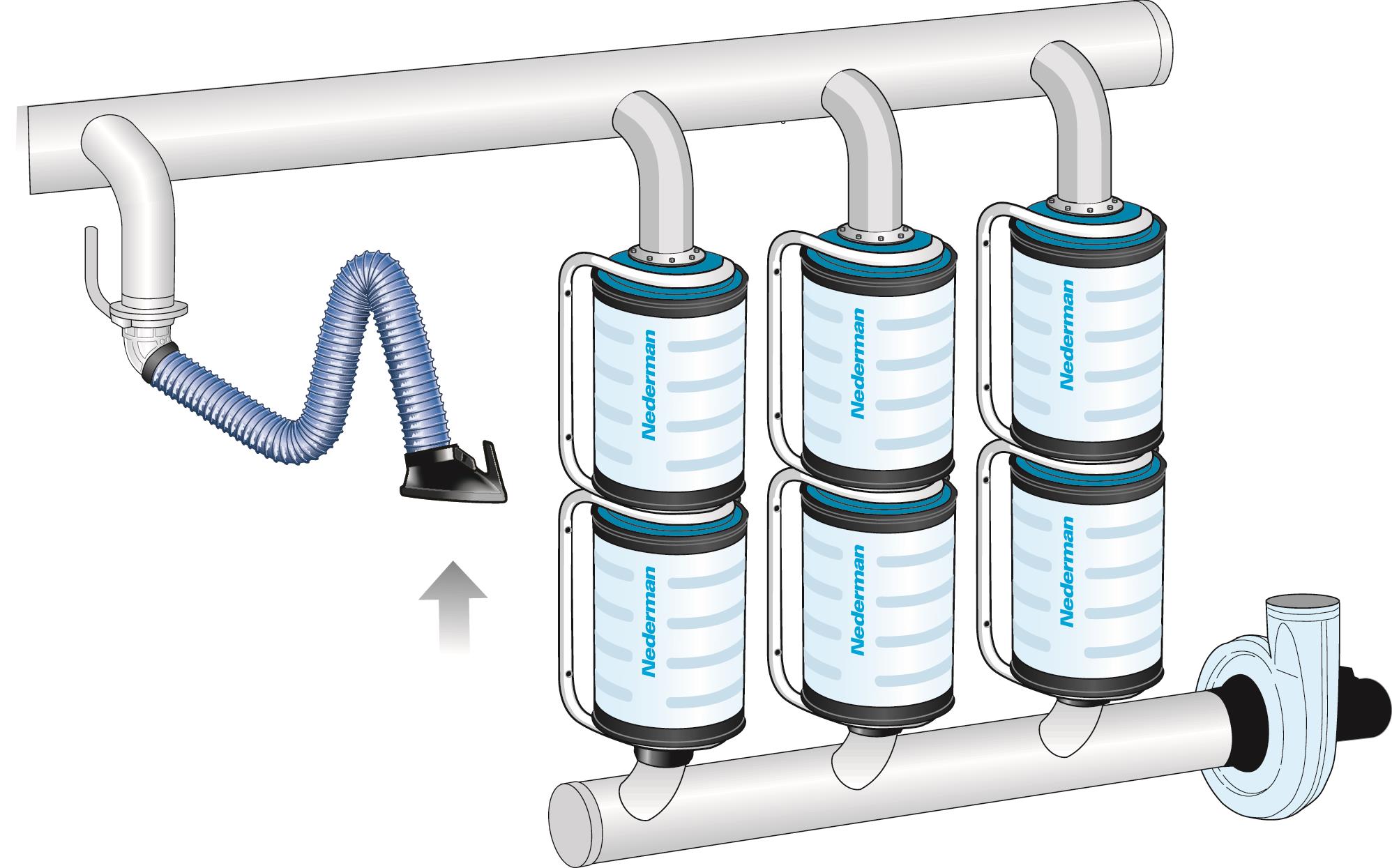

Expandable system ideal for growing businesses
-
wide range of modular options from economical to advanced system features
-
Economical and efficient
| Filter efficiency (%) |
99,995 |
| Installation |
Indoor |
| Suitable for combustible dust |
No |
| Application |
Fumes, Dust |
| Airflow (CFM) |
600 |
| Filter Area (ft²) |
194 |
MFS filter with standard filter, console and connections
Number of filter elements
1
Filter material
Cellulose Paper
MFS filter with gas/micro filter, console and connections
Number of filter elements
1
Filter material
Activated Carbon
MFS filter with gas and carbon filter, console and connections
Number of filter elements
1
Filter material
Activated Carbon
Note
The flow of air should not exceed 500 m3/h per filter unit.
The lower the flow of air, the better the filtration ability/
absorption.
Kit MFS Particle filter, 10ft Original Arm, N24 1.5HP Fan, Fan Starter, 115V 1 Phase 60 Hz.
ArtNo: 12600644
replacement wall bracket for MFS system
|
ArtNo: 12600711
replacement standard filter for MFS system
|
ArtNo: 12600911
spare part filter for HEPA/carbon MFS system
|
ArtNo: 12603461
Spare part filter Carbon/Gas for WallCart/MFS system
|
