Simple and effective wood dust extraction solutions

Nederman’s NFPZ is a convenient and high-performing wood dust collection solution for small to mid-size woodworking manufacturing or education sites. Featuring the SUPERBAG filters, the NFPZ offers high filtration efficiency, extended filter life energy efficiency reducing emissions and operational cost.

The design complies with the latest NFPA and ATEX combustible dust requirements and can be configured to a facility’s unique needs to ensure safe operation and compliance with local standards and regulations.

The NFPZ is a flexible design that includes design features that ensures easy operation and maintenance of the solution.

Application	Dust;Granulate
Certifications	CE;EX
Installation	Outdoor
Suitable for combustible dust	true
Filter cleaning method	Shaking
Material	Housing in galvanised sheet steel
Operating Temperature	-4 to 167 F (-20 to 75 C)
Capacity (max airflow cfm)	10,500

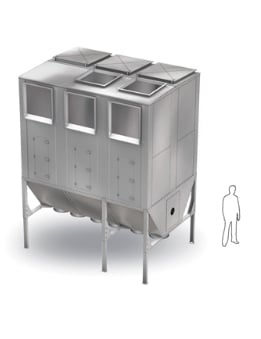

NFPZ baghouse dust collector
