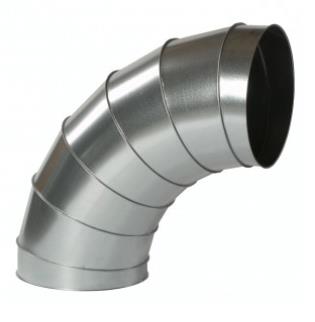

FB Segmented Bends

FB Segmented Bends

FB Segmented Bends with radius 1,5 x diameter to centerline

Technical data
Material Thickness 0,9mm
End Type A FB
Centre Line Radius (CLR) (mm) 1,5

Models75

    Bend Seg Galv 0,9mm 350FB 15Deg R=1,5

    ArtNo: 8210002963

    Diameter A (mm)
    350
    Angle Degree
    15
    Weight
    1,23
    Bend Seg Galv 0,9mm 400FB 15Deg R=1,5

    ArtNo: 8210002968

    Diameter A (mm)
    400
    Angle Degree
    15
    Weight
    1,68
    Bend Seg Galv 0,9mm 450FB 15Deg R=1,5

    ArtNo: 8210002973

    Diameter A (mm)
    450
    Angle Degree
    15
    Weight
    2,31
    Bend Seg Galv 0,9mm 500FB 15Deg R=1,5

    ArtNo: 8210002978

    Diameter A (mm)
    500
    Angle Degree
    15
    Weight
    3,29
    Bend Seg Galv 0,9mm 550FB 15Deg R=1,5

    ArtNo: 8210002983

    Diameter A (mm)
    550
    Angle Degree
    15
    Weight
    3,60
    Bend Seg Galv 0,9mm 600FB 15Deg R=1,5

    ArtNo: 8210002988

    Diameter A (mm)
    600
    Angle Degree
    15
    Weight
    3,78
    Bend Seg Galv 0,9mm 630FB 15Deg R=1,5

    ArtNo: 8210002993

    Diameter A (mm)
    630
    Angle Degree
    15
    Weight
    3,98
    Bend Seg Galv 0,9mm 650FB 15Deg R=1,5

    ArtNo: 8210002998

    Diameter A (mm)
    650
    Angle Degree
    15
    Weight
    4,18
    Bend Seg Galv 0,9mm 700FB 15Deg R=1,5

    ArtNo: 8210003003

    Diameter A (mm)
    700
    Angle Degree
    15
    Weight
    4,47
    Bend Seg Galv 0,9mm 750FB 15Deg R=1,5

    ArtNo: 8210003008

    Diameter A (mm)
    750
    Angle Degree
    15
    Weight
    4,77
    Bend Seg Galv 0,9mm 800FB 15Deg R=1,5

    ArtNo: 8210003013

    Diameter A (mm)
    800
    Angle Degree
    15
    Weight
    5,16
    Bend Seg Galv 0,9mm 850FB 15Deg R=1,5

    ArtNo: 8210003018

    Diameter A (mm)
    850
    Angle Degree
    15
    Weight
    5,48
    Bend Seg Galv 0,9mm 900FB 15Deg R=1,5

    ArtNo: 8210003023

    Diameter A (mm)
    900
    Angle Degree
    15
    Weight
    5,80
    Bend Seg Galv 0,9mm 950FB 15Deg R=1,5

    ArtNo: 8210003028

    Diameter A (mm)
    950
    Angle Degree
    15
    Weight
    6,13
    Bend Seg Galv 0,9mm 1000FB 15Deg R=1,5

    ArtNo: 8210003033

    Diameter A (mm)
    1000
    Angle Degree
    15
    Weight
    6,44
    Bend Seg Galv 0,9mm 350FB 30Deg R=1,5

    ArtNo: 8210002964

    Diameter A (mm)
    350
    Angle Degree
    30
    Weight
    2,18
    Bend Seg Galv 0,9mm 400FB 30Deg R=1,5

    ArtNo: 8210002969

    Diameter A (mm)
    400
    Angle Degree
    30
    Weight
    2,66
    Bend Seg Galv 0,9mm 450FB 30Deg R=1,5

    ArtNo: 8210002974

    Diameter A (mm)
    450
    Angle Degree
    30
    Weight
    3,63
    Bend Seg Galv 0,9mm 500FB 30Deg R=1,5

    ArtNo: 8210002979

    Diameter A (mm)
    500
    Angle Degree
    30
    Weight
    4,52
    Bend Seg Galv 0,9mm 550FB 30Deg R=1,5

    ArtNo: 8210002984

    Diameter A (mm)
    550
    Angle Degree
    30
    Weight
    5,90
    Bend Seg Galv 0,9mm 600FB 30Deg R=1,5

    ArtNo: 8210002989

    Diameter A (mm)
    600
    Angle Degree
    30
    Weight
    6,38
    Bend Seg Galv 0,9mm 630FB 30Deg R=1,5

    ArtNo: 8210002994

    Diameter A (mm)
    630
    Angle Degree
    30
    Weight
    6,58
    Bend Seg Galv 0,9mm 650FB 30Deg R=1,5

    ArtNo: 8210002999

    Diameter A (mm)
    650
    Angle Degree
    30
    Weight
    6,78
    Bend Seg Galv 0,9mm 700FB 30Deg R=1,5

    ArtNo: 8210003004

    Diameter A (mm)
    700
    Angle Degree
    30
    Weight
    7,39
    Bend Seg Galv 0,9mm 750FB 30Deg R=1,5

    ArtNo: 8210003009

    Diameter A (mm)
    750
    Angle Degree
    30
    Weight
    7,69
    Bend Seg Galv 0,9mm 800FB 30Deg R=1,5

    ArtNo: 8210003014

    Diameter A (mm)
    800
    Angle Degree
    30
    Weight
    8,46
    Bend Seg Galv 0,9mm 850FB 30Deg R=1,5

    ArtNo: 8210003019

    Diameter A (mm)
    850
    Angle Degree
    30
    Weight
    8,99
    Bend Seg Galv 0,9mm 900FB 30Deg R=1,5

    ArtNo: 8210003024

    Diameter A (mm)
    900
    Angle Degree
    30
    Weight
    9,51
    Bend Seg Galv 0,9mm 950FB 30Deg R=1,5

    ArtNo: 8210003029

    Diameter A (mm)
    950
    Angle Degree
    30
    Weight
    10,04
    Bend Seg Galv 0,9mm 1000FB 30Deg R=1,5

    ArtNo: 8210003034

    Diameter A (mm)
    1000
    Angle Degree
    30
    Weight
    10,56
    Bend Seg Galv 0,9mm 350FB 45Deg R=1,5

    ArtNo: 8210002965

    Diameter A (mm)
    350
    Angle Degree
    45
    Weight
    3,35
    Bend Seg Galv 0,9mm 400FB 45Deg R=1,5

    ArtNo: 8210002970

    Diameter A (mm)
    400
    Angle Degree
    45
    Weight
    4,11
    Bend Seg Galv 0,9mm 450FB 45Deg R=1,5

    ArtNo: 8210002975

    Diameter A (mm)
    450
    Angle Degree
    45
    Weight
    5,59
    Bend Seg Galv 0,9mm 500FB 45Deg R=1,5

    ArtNo: 8210002980

    Diameter A (mm)
    500
    Angle Degree
    45
    Weight
    6,95
    Bend Seg Galv 0,9mm 550FB 45Deg R=1,5

    ArtNo: 8210002985

    Diameter A (mm)
    550
    Angle Degree
    45
    Weight
    9,04
    Bend Seg Galv 0,9mm 600FB 45Deg R=1,5

    ArtNo: 8210002990

    Diameter A (mm)
    600
    Angle Degree
    45
    Weight
    9,91
    Bend Seg Galv 0,9mm 630FB 45Deg R=1,5

    ArtNo: 8210002995

    Diameter A (mm)
    630
    Angle Degree
    45
    Weight
    10,11
    Bend Seg Galv 0,9mm 650FB 45Deg R=1,5

    ArtNo: 8210003000

    Diameter A (mm)
    650
    Angle Degree
    45
    Weight
    10,31
    Bend Seg Galv 0,9mm 700FB 45Deg R=1,5

    ArtNo: 8210003005

    Diameter A (mm)
    700
    Angle Degree
    45
    Weight
    11,37
    Bend Seg Galv 0,9mm 750FB 45Deg R=1,5

    ArtNo: 8210003010

    Diameter A (mm)
    750
    Angle Degree
    45
    Weight
    11,67
    Bend Seg Galv 0,9mm 800FB 45Deg R=1,5

    ArtNo: 8210003015

    Diameter A (mm)
    800
    Angle Degree
    45
    Weight
    12,96
    Bend Seg Galv 0,9mm 850FB 45Deg R=1,5

    ArtNo: 8210003020

    Diameter A (mm)
    850
    Angle Degree
    45
    Weight
    13,76
    Bend Seg Galv 0,9mm 900FB 45Deg R=1,5

    ArtNo: 8210003025

    Diameter A (mm)
    900
    Angle Degree
    45
    Weight
    14,56
    Bend Seg Galv 0,9mm 950FB 45Deg R=1,5

    ArtNo: 8210003030

    Diameter A (mm)
    950
    Angle Degree
    45
    Weight
    15,37
    Bend Seg Galv 0,9mm 1000FB 45Deg R=1,5

    ArtNo: 8210003035

    Diameter A (mm)
    1000
    Angle Degree
    45
    Weight
    0,40
    Bend Seg Galv 0,9mm 350FB 60Deg R=1,5

    ArtNo: 8210002966

    Diameter A (mm)
    350
    Angle Degree
    60
    Weight
    4,53
    Bend Seg Galv 0,9mm 400FB 60Deg R=1,5

    ArtNo: 8210002971

    Diameter A (mm)
    400
    Angle Degree
    60
    Weight
    5,56
    Bend Seg Galv 0,9mm 450FB 60Deg R=1,5

    ArtNo: 8210002976

    Diameter A (mm)
    450
    Angle Degree
    60
    Weight
    7,55
    Bend Seg Galv 0,9mm 500FB 60Deg R=1,5

    ArtNo: 8210002981

    Diameter A (mm)
    500
    Angle Degree
    60
    Weight
    9,37
    Bend Seg Galv 0,9mm 550FB 60Deg R=1,5

    ArtNo: 8210002986

    Diameter A (mm)
    550
    Angle Degree
    60
    Weight
    12,18
    Bend Seg Galv 0,9mm 600FB 60Deg R=1,5

    ArtNo: 8210002991

    Diameter A (mm)
    600
    Angle Degree
    60
    Weight
    13,44
    Bend Seg Galv 0,9mm 630FB 60Deg R=1,5

    ArtNo: 8210002996

    Diameter A (mm)
    630
    Angle Degree
    60
    Weight
    13,64
    Bend Seg Galv 0,9mm 650FB 60Deg R=1,5

    ArtNo: 8210003001

    Diameter A (mm)
    650
    Angle Degree
    60
    Weight
    13,84
    Bend Seg Galv 0,9mm 700FB 60Deg R=1,5

    ArtNo: 8210003006

    Diameter A (mm)
    700
    Angle Degree
    60
    Weight
    15,35
    Bend Seg Galv 0,9mm 750FB 60Deg R=1,5

    ArtNo: 8210003011

    Diameter A (mm)
    750
    Angle Degree
    60
    Weight
    15,65
    Bend Seg Galv 0,9mm 800FB 60Deg R=1,5

    ArtNo: 8210003016

    Diameter A (mm)
    800
    Angle Degree
    60
    Weight
    17,46
    Bend Seg Galv 0,9mm 850FB 60Deg R=1,5

    ArtNo: 8210003021

    Diameter A (mm)
    850
    Angle Degree
    60
    Weight
    18,54
    Bend Seg Galv 0,9mm 900FB 60Deg R=1,5

    ArtNo: 8210003026

    Diameter A (mm)
    900
    Angle Degree
    60
    Weight
    19,62
    Bend Seg Galv 0,9mm 950FB 60Deg R=1,5

    ArtNo: 8210003031

    Diameter A (mm)
    950
    Angle Degree
    60
    Weight
    20,71
    Bend Seg Galv 0,9mm 1000FB 60Deg R=1,5

    ArtNo: 8210003036

    Diameter A (mm)
    1000
    Angle Degree
    60
    Weight
    21,78
    Bend Seg Galv 0,9mm 350FB 90Deg R=1,5

    ArtNo: 8210002967

    Diameter A (mm)
    350
    Angle Degree
    90
    Weight
    6,89
    Bend Seg Galv 0,9mm 400FB 90Deg R=1,5

    ArtNo: 8210002972

    Diameter A (mm)
    400
    Angle Degree
    90
    Weight
    8,47
    Bend Seg Galv 0,9mm 450FB 90Deg R=1,5

    ArtNo: 8210002977

    Diameter A (mm)
    450
    Angle Degree
    90
    Weight
    11,47
    Bend Seg Galv 0,9mm 500FB 90Deg R=1,5

    ArtNo: 8210002982

    Diameter A (mm)
    500
    Angle Degree
    90
    Weight
    14,21
    Bend Seg Galv 0,9mm 550FB 90Deg R=1,5

    ArtNo: 8210002987

    Diameter A (mm)
    550
    Angle Degree
    90
    Weight
    18,46
    Bend Seg Galv 0,9mm 600FB 90Deg R=1,5

    ArtNo: 8210002992

    Diameter A (mm)
    600
    Angle Degree
    90
    Weight
    20,50
    Bend Seg Galv 0,9mm 630FB 90Deg R=1,5

    ArtNo: 8210002997

    Diameter A (mm)
    630
    Angle Degree
    90
    Weight
    20,70
    Bend Seg Galv 0,9mm 650FB 90Deg R=1,5

    ArtNo: 8210003002

    Diameter A (mm)
    650
    Angle Degree
    90
    Weight
    20,90
    Bend Seg Galv 0,9mm 700FB 90Deg R=1,5

    ArtNo: 8210003007

    Diameter A (mm)
    700
    Angle Degree
    90
    Weight
    23,31
    Bend Seg Galv 0,9mm 750FB 90Deg R=1,5

    ArtNo: 8210003012

    Diameter A (mm)
    750
    Angle Degree
    90
    Weight
    23,61
    Bend Seg Galv 0,9mm 800FB 90Deg R=1,5

    ArtNo: 8210003017

    Diameter A (mm)
    800
    Angle Degree
    90
    Weight
    26,45
    Bend Seg Galv 0,9mm 850FB 90Deg R=1,5

    ArtNo: 8210003022

    Diameter A (mm)
    850
    Angle Degree
    90
    Weight
    28,09
    Bend Seg Galv 0,9mm 900FB 90Deg R=1,5

    ArtNo: 8210003027

    Diameter A (mm)
    900
    Angle Degree
    90
    Weight
    29,72
    Bend Seg Galv 0,9mm 950FB 90Deg R=1,5

    ArtNo: 8210003032

    Diameter A (mm)
    950
    Angle Degree
    90
    Weight
    31,39
    Bend Seg Galv 0,9mm 1000FB 90Deg R=1,5

    ArtNo: 8210003037

    Diameter A (mm)
    1000
    Angle Degree
    90
    Weight
    33,01
