NF Fans - standalone

NF Fans - standalone

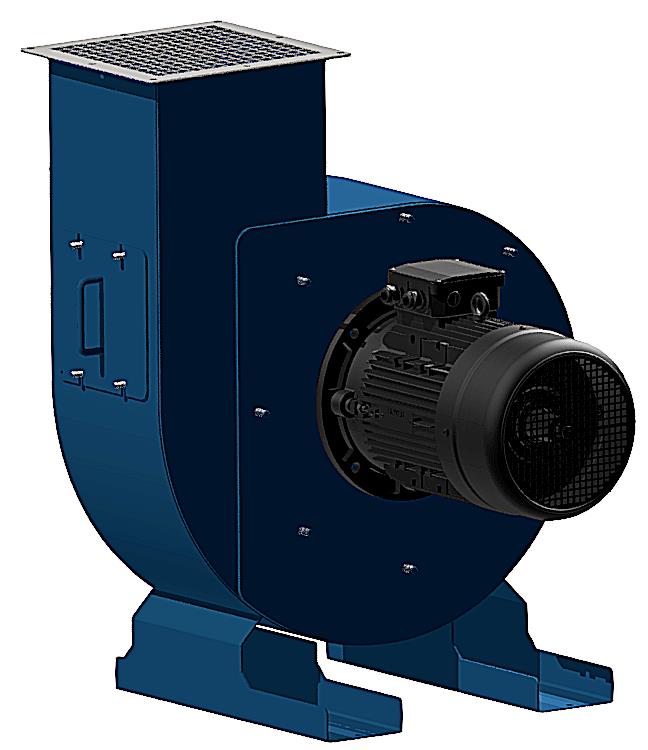

The Nederman NF range is a series of radial fans with curved impeller blades designed for use in all types of industrial process and ventilation systems, mounted indoor as well as outdoor.

Note! The fan must not be used in an environment with danger of explosion or for transport of inflammable or explosive gases.

Technische Daten
Zertifikat CE
Installation im Freien, im Gebäude
Material Steel sheets, painted RAL 5009
Geeignet für explosionsfähigen Staub Nein
Applikation Stäube, Rauche
Volumenstrom (m3/h) 500 - 14000
Ambient temperature range -20 to +40°C

Modelle11

    Fan NF WS 0,75 kW 50 Hz standing base

    ArtNo: 73001170

    Frequenz (Hz)
    50
    Gewicht (kg)
    43
    Leistung (kW)
    0,75
    Erklärung zu technischen Daten

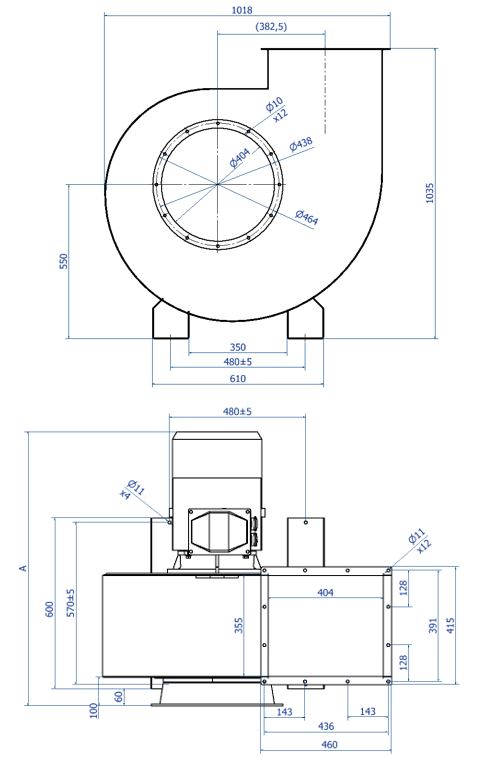

    Dimension A = 409 mm Dimension depending on power/the engine type.
    Fan NF WS 1,1 kW 50 Hz standing base

    ArtNo: 73001171

    Frequenz (Hz)
    50
    Gewicht (kg)
    45
    Leistung (kW)
    1,1
    Erklärung zu technischen Daten
    Dimension A = 443 mm Dimension depending on power/the engine type.
    Fan NF WS 2,2 kW 50 Hz standing base

    ArtNo: 73001172

    Frequenz (Hz)
    50
    Gewicht (kg)
    51
    Leistung (kW)
    2,2
    Erklärung zu technischen Daten
    Dimension A = 501 mm Dimension depending on power/the engine type.
    Fan NF WS 3 kW 50 Hz standing base

    ArtNo: 73001173

    Frequenz (Hz)
    50
    Gewicht (kg)
    56
    Leistung (kW)
    3
    Erklärung zu technischen Daten
    Dimension A = 522 mm Dimension depending on power/the engine type.
    Fan NF WS 4 kW 50 Hz standing base

    ArtNo: 73001174

    Gewicht (kg)
    78
    Leistung (kW)
    4
    Erklärung zu technischen Daten
    Dimension A = 634 mm Dimension depending on power/the engine type.
    Fan NF WS 5,5 kW 50 Hz standing base

    ArtNo: 73001175

    Frequenz (Hz)
    50
    Gewicht (kg)
    92
    Leistung (kW)
    5,5
    Erklärung zu technischen Daten
    Dimension A = 671 mm Dimension depending on power/the engine type.
    NF Fan 7, 5 kW 50 Hz S Standing Base

    ArtNo: 73000007

    Frequenz (Hz)
    50
    Gewicht (kg)
    97
    Leistung (kW)
    7,5
    Erklärung zu technischen Daten
    Dimension A = 671 mm Dimension depending on power/the engine type.
    NF Fan 7, 5 kW 50 Hz L Standing Base

    ArtNo: 73000008

    Frequenz (Hz)
    50
    Gewicht (kg)
    147
    Leistung (kW)
    7,5
    Erklärung zu technischen Daten
    Dimension A = 835 mm Dimension depending on power/the engine type.
    NF Fan 11 kW 50 Hz Standing Base

    ArtNo: 73000009

    Frequenz (Hz)
    50
    Gewicht (kg)
    179
    Leistung (kW)
    11
    Erklärung zu technischen Daten
    Dimension A = 940 mm Dimension depending on power/the engine type.
    NF Fan 15 kW 50 Hz Standing Base

    ArtNo: 73000010

    Frequenz (Hz)
    50
    Gewicht (kg)
    192
    Leistung (kW)
    15
    Erklärung zu technischen Daten
    Dimension A = 940 mm Dimension depending on power/the engine type.
    NF Fan 18. 5 kW 50 Hz Standing Base

    ArtNo: 73000012

    Frequenz (Hz)
    50
    Gewicht (kg)
    210
    Leistung (kW)
    18,5
    Erklärung zu technischen Daten
    Dimension A = 940 mm Dimension depending on power/the engine type.

Zubehör für dieses Produkt 32

Flexible connection for NF fan 0,75-3,0kW L=160mm
ArtNo: 73001779

Outlet flexible connection for NF fan 0,75-3,0kW L=160mm

Flexible connection for NF fan 4,0-7,5S kW L=160mm
ArtNo: 73001780

Outlet flexible connection for NF fan 4,0-7,5S kW L=160mm

Flexible connection for NF fan 7,5L-18,5kW L=160mm
ArtNo: 73001781

Outlet flexible connection for NF fan 7,5L-18,5kW L=160mm

Flexible connection FL180 L=160mm
ArtNo: 73003283

Flexible connection FL180 L=160mm

Flexible connection FL400 L=160mm
ArtNo: 73003288

Flexible connection FL400 L=160mm

Inlet galv. for fan dia 180 /QF 180
ArtNo: 73003331

Inlet galv. for fan dia 180 /QF 180

Inlet galv. for fan dia 400 /QF 400
ArtNo: 73003356

Inlet galv. for fan dia 400 /QF 400

Inlet galv. for fan dia 400 /QF 450
ArtNo: 73003359

Inlet galv. for fan dia 400 /QF 450

Inlet galv. for fan dia 400 /QF 500
ArtNo: 73003363

Inlet galv. for fan dia 400 /QF 500

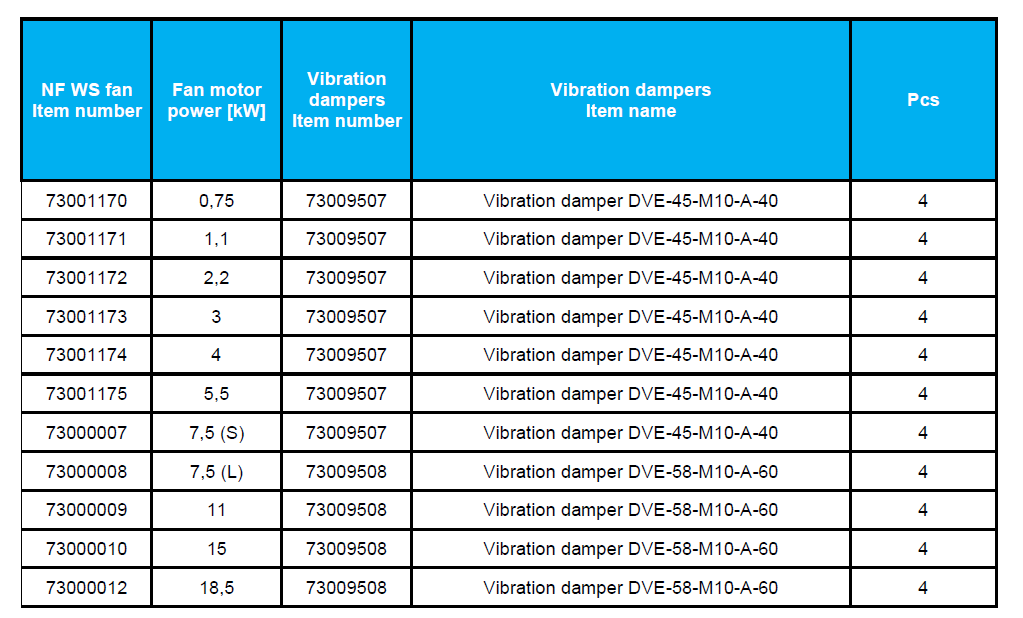

Vibration damper W30 with mounting plate D04 D05
ArtNo: 73003890

Viibration damper W30 with mounting plate D04 D05

Vibration damper W40 with mounting plate D04 D05
ArtNo: 73003892

Viibration damper W40 with mounting plate D04 D05

Vibration damper W50 with mounting plate D04 D05
ArtNo: 73003893

Viibration damper W50 with mounting plate D04 D05

Vibration damper W75 with mounting plate D04 D05
ArtNo: 73003895

Wibration damper W75 with mounting plate D04 D05

Inlet galv. for fan dia 400 /QF 560
ArtNo: 73007149

Inlet galv. for fan dia 400 /QF 560

Inlet galv. for fan dia. 180/QF160
ArtNo: 73007705

Inlet galv. for fan dia. 180/QF160

Inlet galv. for fan dia300/QF224
ArtNo: 73008195

Inlet galv. for fan dia300/QF224

Inlet galv. for fan dia300/QF250
ArtNo: 73008196

Inlet galv. for fan dia300/QF250

Outlet transition for NF fan 0,75-3,0 kW / QF160 galv.
ArtNo: 73008203

Outlet transition for NF fan 0,75-3,0 kW / QF160 galv.

Outlet transition for NF fan 0,75-3,0 kW / QF180 galv.
ArtNo: 73008204

Outlet transition for NF fan 0,75-3,0 kW / QF180 galv.

Outlet transition for NF fan 0,75-3,0 kW / QF200 galv.
ArtNo: 73008205

Outlet transition for NF fan 0,75-3,0 kW / QF200 galv.

Outlet transition for NF fan 4,0-7,5S kW / QF224 galv.
ArtNo: 73008206

Outlet transition for NF fan 4,0-7,5S kW / QF224 galv.

Outlet transition for NF fan 4,0-7,5S kW / QF250 galv.
ArtNo: 73008207

Outlet transition for NF fan 4,0-7,5S kW / QF250 galv.

Outlet transition for NF fan 4,0-7,5S kW / QF315 galv.
ArtNo: 73008208

Outlet transition for NF fan 4,0-7,5S kW / QF315 galv.

Outlet transition for NF fan 4,0-7,5S kW / QF350 galv.
ArtNo: 73008209

Outlet transition for NF fan 4,0-7,5S kW / QF350 galv.

Outlet transition for NF fan 4,0-7,5S kW / QF400 galv.
ArtNo: 73008210

Outlet transition for NF fan 4,0-7,5S kW / QF400 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF315 galv.
ArtNo: 73008211

Outlet transition for NF fan 7,5L-18,5 kW / QF315 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF350 galv.
ArtNo: 73008212

Outlet transition for NF fan 7,5L-18,5 kW / QF350 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF400 galv.
ArtNo: 73008213

Outlet transition for NF fan 7,5L-18,5 kW / QF400 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF450 galv.
ArtNo: 73008214

Outlet transition for NF fan 7,5L-18,5 kW / QF450 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF500 galv.
ArtNo: 73008215

Outlet transition for NF fan 7,5L-18,5 kW / QF500 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF560 galv.
ArtNo: 73008216

Outlet transition for NF fan 7,5L-18,5 kW / QF560 galv.

Outlet transition for NF fan 7,5L-18,5 kW / QF630 galv.
ArtNo: 73008217

Outlet transition for NF fan 7,5L-18,5 kW / QF630 galv.
