Industrial Dust Collection

Safe handling of combustible wood dust

Woodworking in the form of sawing, planing, sanding and other operations involves very large amounts of sawdust and sanding dust. Airborne dust and fine particles can be hazardous to human health, and should be extracted before it reaches the breathing zone. Typical sources in woodworking industries are dust from cutting, grinding and sanding.

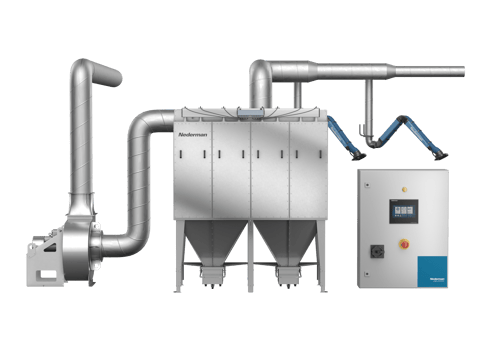

To handle these large flows of wood waste safely and efficiently, Nederman has developed a wide range of products and systems based on dust collectors, filtration solutions, extraction arms, piping/ducting, fans, conveyors, silos, and automated control systems. In addition to achieving a good working environment, these systems make it possible for customers to recycle wood waste, which represents a large economic value. When converted into pellets, waste products can be used for energy production or be sold as an energy source.

FlexPAK: small, central high vacuum dust collector

Small central system for hand tool dust extraction Frequency inverter and PLC controlled for minimizing energy usage Automatic on/off capable for lowest energy usage Compact and self contained for easy/fast installation

---

FlexFilter EX: small, central high vacuum dust collector

For multiple small machines and hand tool extraction Automatic filter cleaning for easy disposal of dust  Low airflow, high pressure suction: energy efficient

---

S-Series: enclosure-less, silent and simple to setup

Available in three sizes: S-500, S-750 and S-1000 Handles air volumes up to 5,000 cfm  Ideal for indoor installation The fan operates at a low rpm resulting in quieter operation Equipped with the patented antistatic polyester 99% efficient SUPERBAG filter

---

NFPZ3000: baghouse dust collector with container

Designed for small to medium-sized workshops producing limited volumes of material Handles air volumes from 1,500-65,000 m3/h (883-38,000 cfm)  Available in two different widths: type E 1200 mm (47") and type J 2400 mm (94") Equipped with the patented antistatic polyester 99% efficient SUPERBAG filter

---

NFSZ3000: baghouse dust collector with rotary valve or screw conveyor

Handles air volumes from 1,500-65,000 m3/h (883-38,000 cfm) Wide range of rotary valves/screw conveyors for material discharge ATEX-certified for St1 and St2 dust with a Kst value up to 300 bar m/s Compact design Designed for continuous operation or operation with 15 minute breaks for cleaning, approx. every four hours For mounting on the ground or on the roof Overpressure or vacuum versions up to 5,000 Pa Explosion relief upwards or sideways Powerful online cleaning with efficient regeneration fans Equipped with the patented antistatic polyester 99% efficient SUPERBAG filter Easy to install on site and extend when required Low energy consumption

---

NFKZ3000: baghouse dust collector with chain conveyor

Handles air volumes from 10,000-500,000 m3/h (5,000-300,000 cfm)  ATEX-certified for ST1 and ST2 dust with a Kst value up to 300 bar m/s Modular galvanized steel construction Available in width: type J 2400 mm (94") Easy to install on site and extend if required Available for positive or negative pressure operation Low energy consumption Powerful on-line cleaning by efficient regeneration fans Equipped with the patented antistatic polyester 99% efficient SUPERBAG filter Wide range of discharge and waste handling options

Combustible dust

Wood dust is one of the most common combustible dusts that Nederman routinely provides industrial dust collection solutions for. Dust collectors do not only need to efficiently remove and filter dust, the entire system must be designed correctly to meet ATEX and NFPA standards, to protect your workers and facility. To learn more about these hazards, see combustible dust handling.
