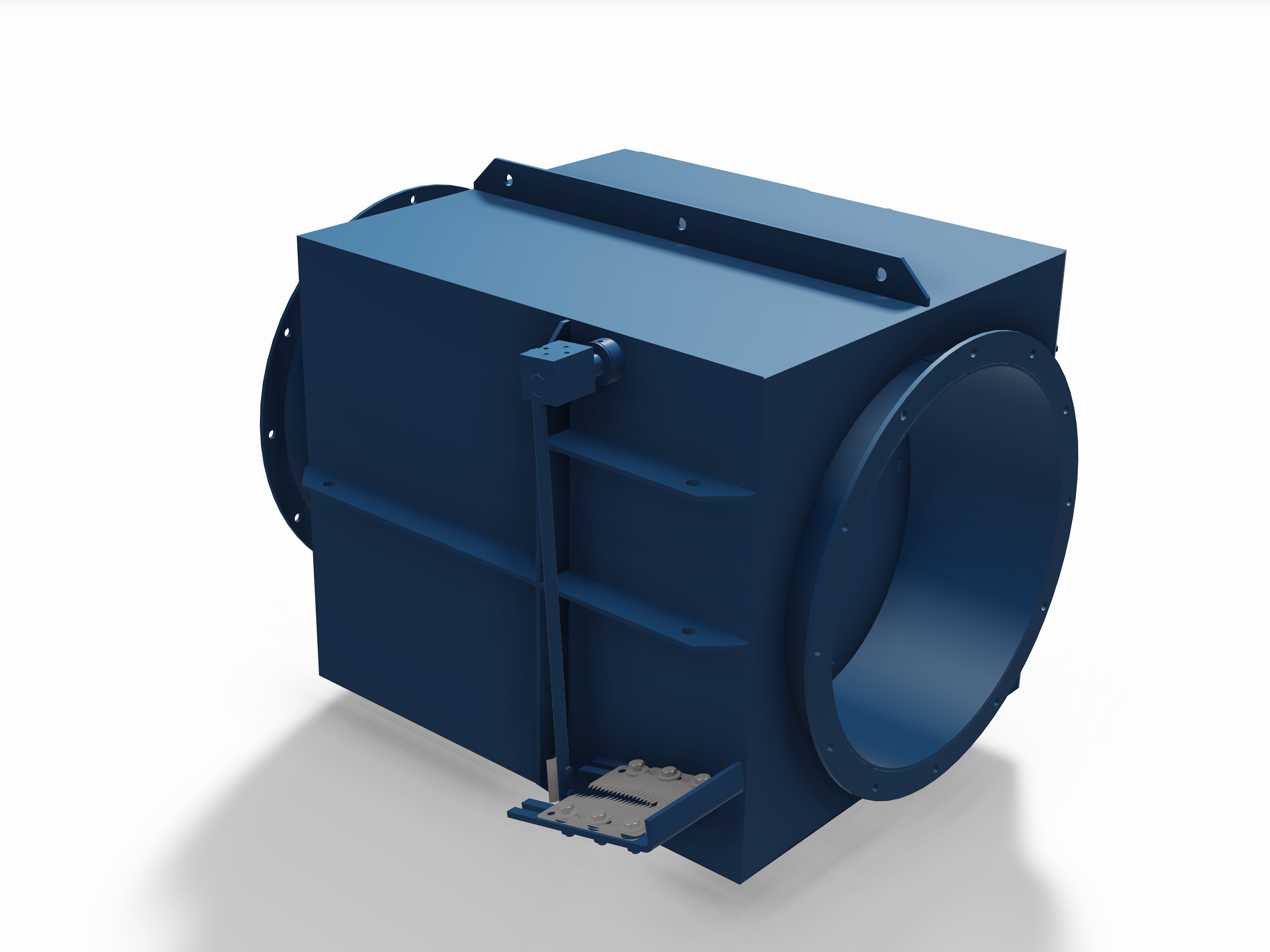

Explosion Isolation Flap Valve CARZ

Explosion Isolation Flap Valve CARZ – protective system for combustible dust applications

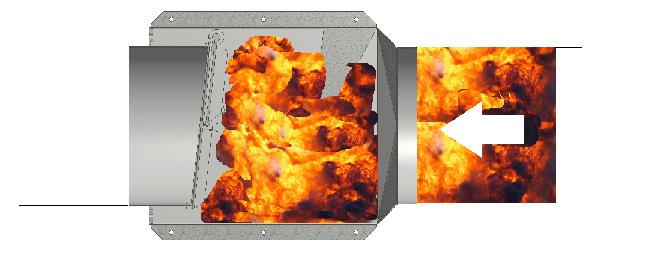

Explosion Isolation Flap Valve type CARZ prevents a transmission of explosion pressure wave and flames front from the filter to your workplace. By using our CARZ Explosion Isolation Flap Valve, you reduce the risk from dust explosion for both people and equipment.

Function

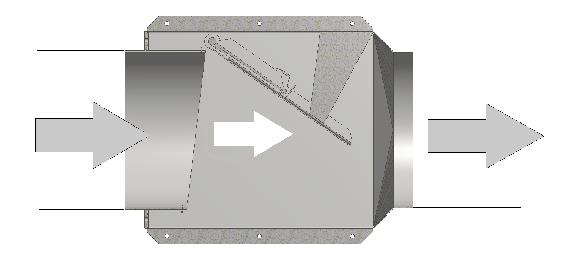

During normal operation, the valve is kept open, and large opening angle ensure low pressure drop. In case of an explosion in the filter, the pressure wave will force to close the flap plate and lock in position. When flap plate is closed it makes an effective barrier against approaching flame front. This prevent the explosion from being transmitted from the filter to upstream work areas.

No matter what industry you are in or what type of dust is generated in your factory, we can provide the complete dust explosion protection solution of filters, and explosion isolation flap valves.

  • Independently tested according to current standards and regulations
  • Compliant with most international dust explosion protection codes (ATEX and NFPA68)
  • Widest range of sizes, applications and filter system configurations on the market (incl. approval for positive and negative pressure systems)
  • Manufactured fully by Nederman under certified quality assurance system, ensuring highest level of quality and reliability

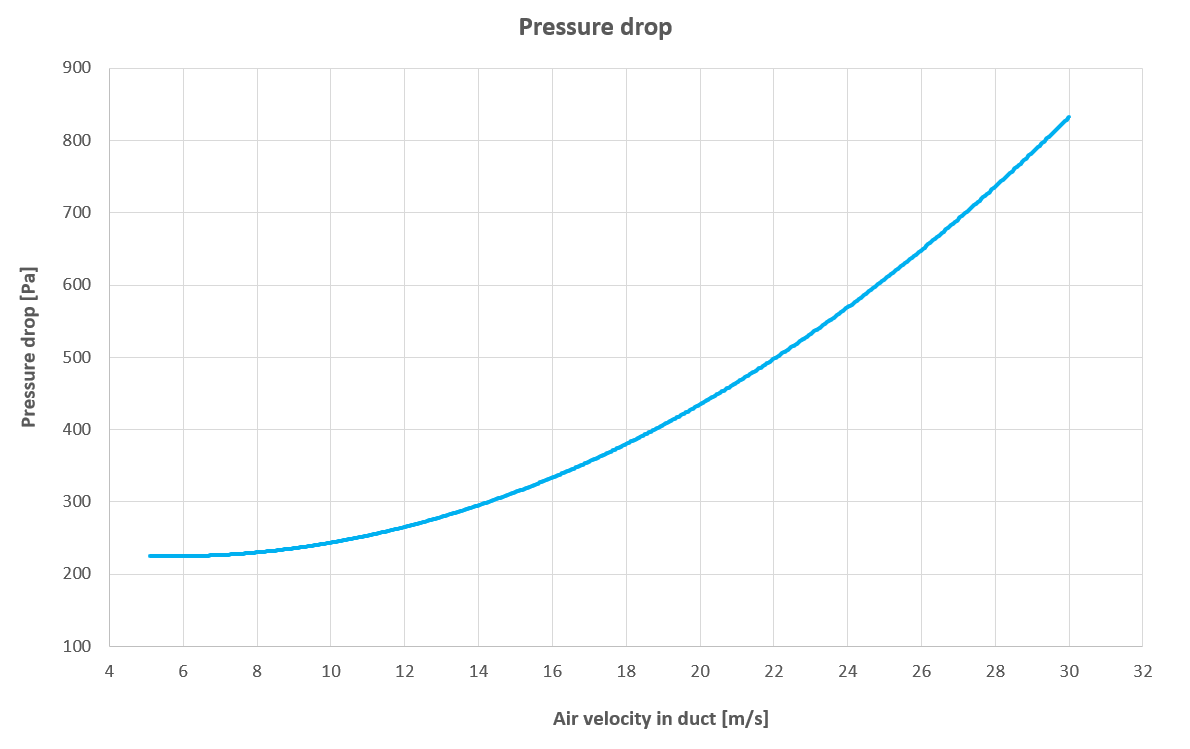

Technical data
Ambient temperature range -20°C - +60°C (Min 0 F Max 140 F)
Certifications CE, EX
Material Welded carbon steel, painted RAL5009
Operating temperature range -20°C - +70°C (Min 0 F Max 160 F)

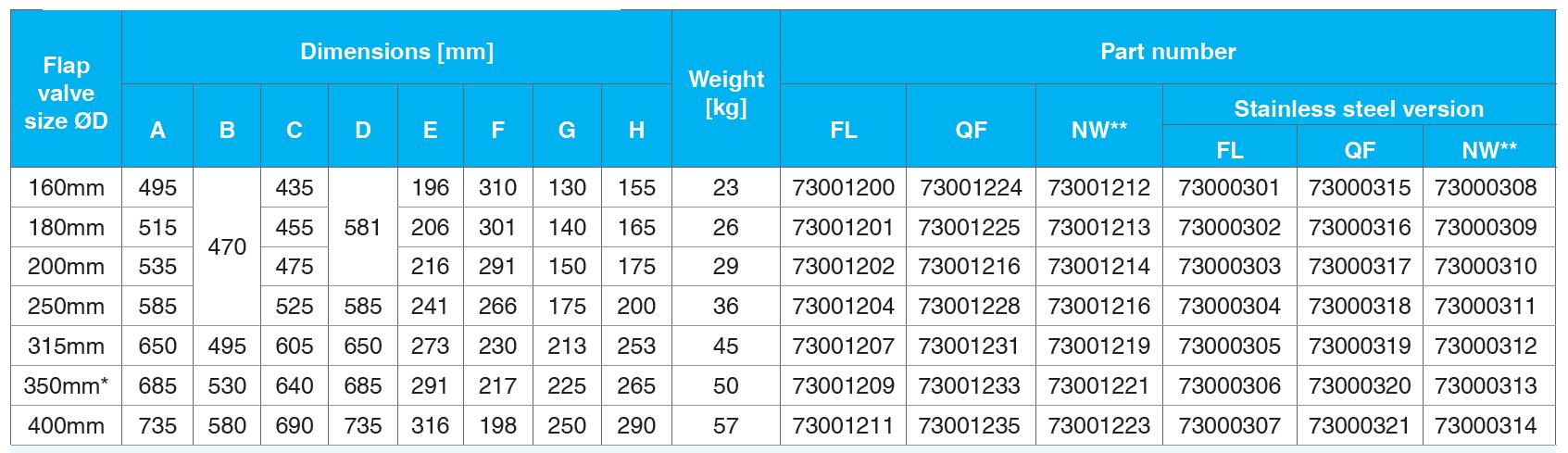

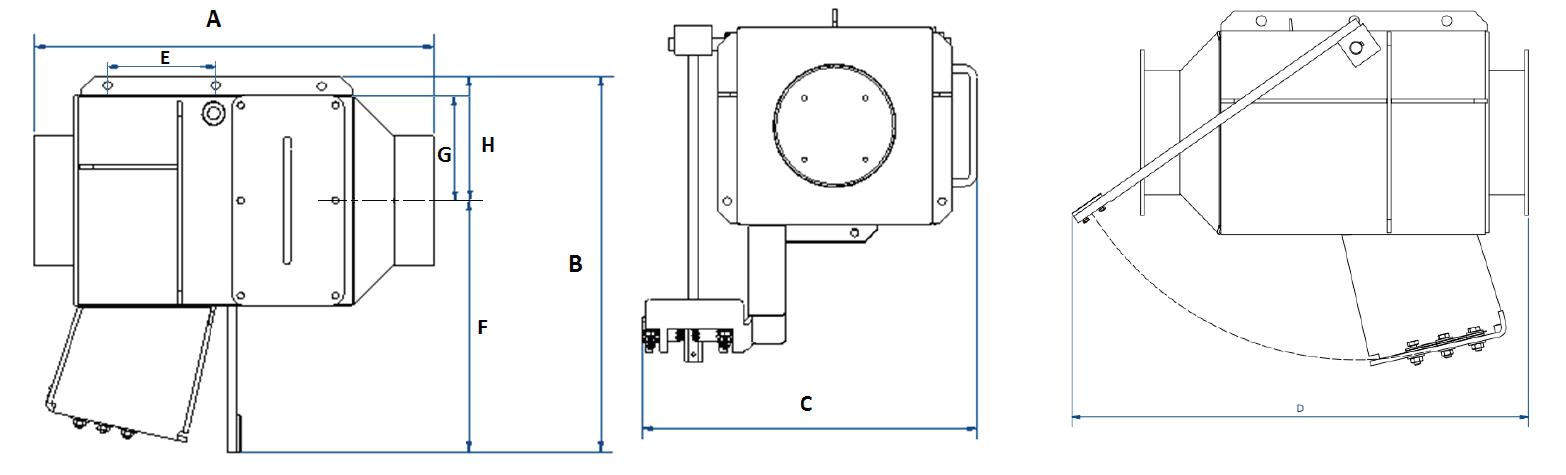

    CARZ 160 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001200

    Diameter (mm)
    160
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    Maximum reduced pressurem, Pred (bar)
    0,45

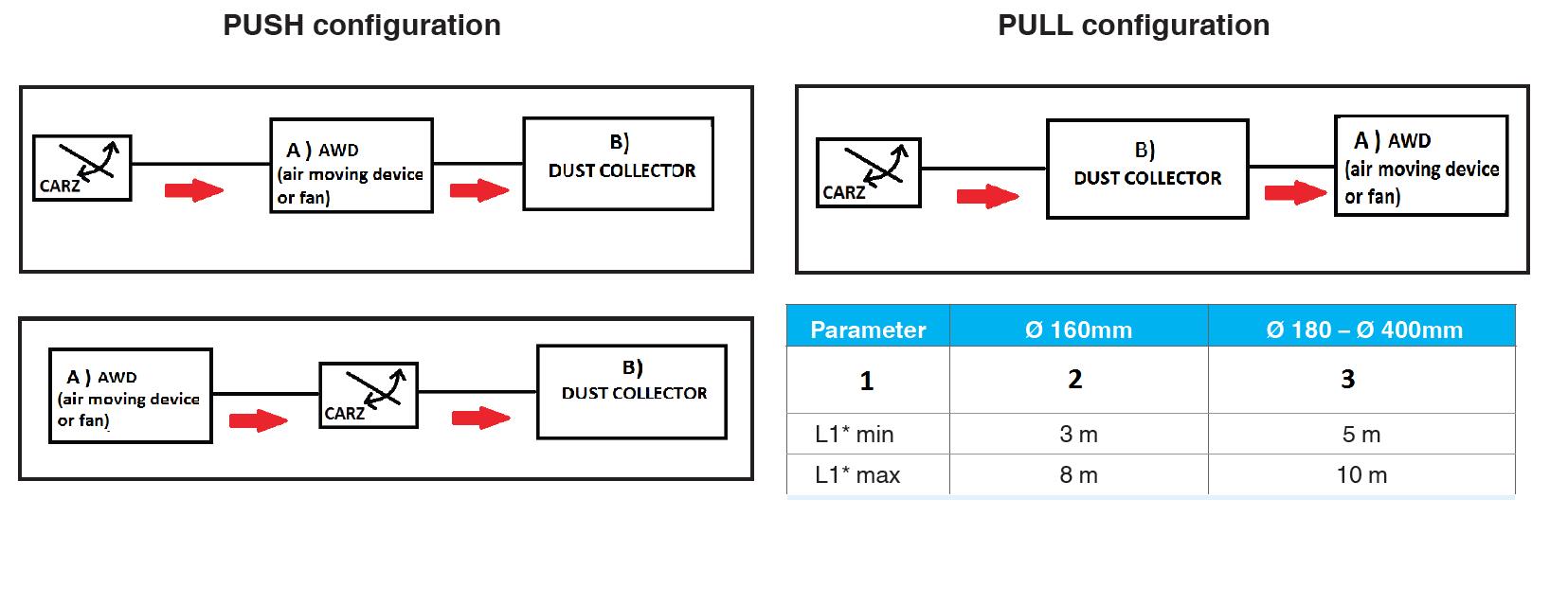

    Install type
    Push and Pull
    Weight (kg)
    23
    CARZ 180 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001201

    Diameter (mm)
    180
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    26
    CARZ 200 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001202

    Diameter (mm)
    200
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 250 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001204

    Diameter (mm)
    250
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    36
    CARZ 315 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001207

    Diameter (mm)
    315
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    45
    CARZ 350 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001209

    Diameter (mm)
    350
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    50
    CARZ 400 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001211

    Diameter (mm)
    400
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    57
    CARZ 160 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001212

    Diameter (mm)
    160
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Weight (kg)
    23
    CARZ 180 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001213

    Diameter (mm)
    180
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    26
    CARZ 200 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001214

    Diameter (mm)
    200
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 250 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001216

    Diameter (mm)
    250
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    36
    CARZ 315 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001219

    Diameter (mm)
    315
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    45
    CARZ 355 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001221

    Diameter (mm)
    355
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    50
    CARZ 400 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001223

    Diameter (mm)
    400
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    57
    CARZ 160 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001224

    Diameter (mm)
    160
    Connection
    QF
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Weight (kg)
    23
    CARZ 180 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001225

    Diameter (mm)
    180
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    26
    CARZ 200 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001226

    Diameter (mm)
    200
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ 250 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001228

    Diameter (mm)
    250
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 315 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001231

    Diameter (mm)
    315
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    36
    CARZ 350 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001233

    Diameter (mm)
    350
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    45
    CARZ 400 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001235

    Diameter (mm)
    400
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    57
    CARZ 160 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000301

    Diameter (mm)
    160
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Weight (kg)
    23
    CARZ 180 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000302

    Diameter (mm)
    180
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    26
    CARZ 200 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000303

    Diameter (mm)
    200
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 250 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000304

    Diameter (mm)
    250
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    36
    CARZ 315 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000305

    Diameter (mm)
    315
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    45
    CARZ 350 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000306

    Diameter (mm)
    350
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    50
    CARZ 400 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000307

    Diameter (mm)
    400
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    57
    CARZ 160 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000308

    Diameter (mm)
    160
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Weight (kg)
    36
    CARZ 180 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000309

    Diameter (mm)
    180
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    26
    CARZ 200 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000310

    Diameter (mm)
    200
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 315 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000312

    Diameter (mm)
    315
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    45
    CARZ 355 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000313

    Diameter (mm)
    355
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    50
    CARZ 400 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000314

    Diameter (mm)
    400
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    57
    CARZ 160 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000315

    Diameter (mm)
    160
    Connection
    QF
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Weight (kg)
    23
    CARZ 180 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000316

    Diameter (mm)
    180
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    26
    CARZ 200 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000317

    Diameter (mm)
    200
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 250 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000318

    Diameter (mm)
    250
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    29
    CARZ 315 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000319

    Diameter (mm)
    315
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    36
    CARZ 350 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000320

    Diameter (mm)
    350
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    45
    CARZ 400 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000321

    Diameter (mm)
    400
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Weight (kg)
    57
    CARZ US (6'') 160 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001261

    Diameter (mm)
    160
    Connection
    FL
    Weight (kg)
    23
    CARZ US (7'') 180 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001262

    Diameter (mm)
    180
    Connection
    FL
    Weight (kg)
    26
    CARZ US (8'') 200 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001263

    Diameter (mm)
    200
    Connection
    FL
    Weight (kg)
    29
    CARZ US (10'') 250 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001265

    Diameter (mm)
    250
    Connection
    FL
    Weight (kg)
    36
    CARZ US (13'') 325 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001269

    Diameter (mm)
    325
    Connection
    FL
    CARZ US (14'') 350 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001270

    Diameter (mm)
    350
    Connection
    FL
    Weight (kg)
    50
    CARZ US (16'') 400 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001272

    Max explosion pressure (bar)
    0,9
    Diameter (mm)
    400
    Connection
    FL
    Length (m)
    735
    Weight (kg)
    57
    CARZ US (6'') 160 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001273

    Diameter (mm)
    160
    Connection
    QF
    Weight (kg)
    23
    CARZ US (7'') 180 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001274

    Diameter (mm)
    180
    Connection
    QF
    Weight (kg)
    26
    CARZ US (8'') 200 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001275

    Diameter (mm)
    200
    Connection
    QF
    Weight (kg)
    29
    CARZ US (10'') 250 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001277

    Diameter (mm)
    250
    Connection
    QF
    Weight (kg)
    36
    CARZ US (13'') 325 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001281

    Diameter (mm)
    325
    Connection
    QF
    CARZ US (14'') 350 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001282

    Diameter (mm)
    350
    Connection
    QF
    Weight (kg)
    50
    CARZ US (16'') 400 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001284

    Diameter (mm)
    400
    Connection
    QF
    Weight (kg)
    57
    CARZ 250 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000311

    Diameter (mm)
    250
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Max velocity in duct (m/s)
    30
    Minimum velocity in duct
    0
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    Install type
    Push and Pull
    Note
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration

Accessories for this product 31

CARZ Locking Sensor set
ArtNo: 73001236

CARZ Locking Sensor set

CARZ support frame suspended 160
ArtNo: 73001558

CARZ support frame suspended 160

CARZ support frame suspended 180
ArtNo: 73001559

CARZ support frame suspended 180

CARZ support frame suspended 200
ArtNo: 73001560

CARZ support frame suspended 200

CARZ support frame suspended 250
ArtNo: 73001561

CARZ support frame suspended 250

CARZ support frame suspended 315
ArtNo: 73001562

CARZ support frame suspended 315

CARZ support frame suspended 350
ArtNo: 73001563

CARZ support frame suspended 350

CARZ support frame suspended 400
ArtNo: 73001564

CARZ support frame suspended 400

CARZ support frame suspended 450
ArtNo: 73001565

CARZ support frame suspended 450

CARZ support frame suspended 500
ArtNo: 73001566

CARZ support frame suspended 500

CARZ support frame suspended 600
ArtNo: 73001567

CARZ support frame suspended 600

CARZ support frame suspended 710
ArtNo: 73001568

CARZ support frame suspended 710

CARZ support frame suspended 800
ArtNo: 73001569

CARZ support frame suspended 800

CARZ support frame suspended 900
ArtNo: 73001570

CARZ support frame suspended 900

Carz support frame suspended 1000
ArtNo: 73001571

Carz support frame suspended 1000

CARZ support frame suspended 1000
ArtNo: 73001572

CARZ support frame suspended 1000

CARZ support frame wall-hanging 160
ArtNo: 73001573

CARZ support frame wall-hanging 160

CARZ support frame wall-hanging 180
ArtNo: 73001574

CARZ support frame wall-hanging 180

CARZ support frame wall-hanging 200
ArtNo: 73001575

CARZ support frame wall-hanging 200

CARZ support frame wall-hanging 250
ArtNo: 73001576

CARZ support frame wall-hanging 250

CARZ support frame wall-hanging 315
ArtNo: 73001577

CARZ support frame wall-hanging 315

CARZ support frame wall-hanging 350
ArtNo: 73001578

CARZ support frame wall-hanging 350

CARZ support frame wall-hanging 400
ArtNo: 73001579

CARZ support frame wall-hanging 400

CARZ support frame wall-hanging 450
ArtNo: 73001580

CARZ support frame wall-hanging 450

CARZ support frame wall-hanging 500
ArtNo: 73001581

CARZ support frame wall-hanging 500

CARZ support frame wall-hanging 560
ArtNo: 73001582

CARZ support frame wall-hanging 560

CARZ support frame wall-hanging 630
ArtNo: 73001583

CARZ support frame wall-hanging 630

CARZ support frame wall-hanging 710
ArtNo: 73001584

CARZ support frame wall-hanging 710

CARZ support frame wall-hanging 800
ArtNo: 73001585

CARZ support frame wall-hanging 800

CARZ support frame wall-hanging 900
ArtNo: 73001586

CARZ support frame wall-hanging 900

CARZ support frame wall-hanging 1000
ArtNo: 73001587

CARZ support frame wall-hanging 1000
