Nederman

AUTO-M

AUTO-M

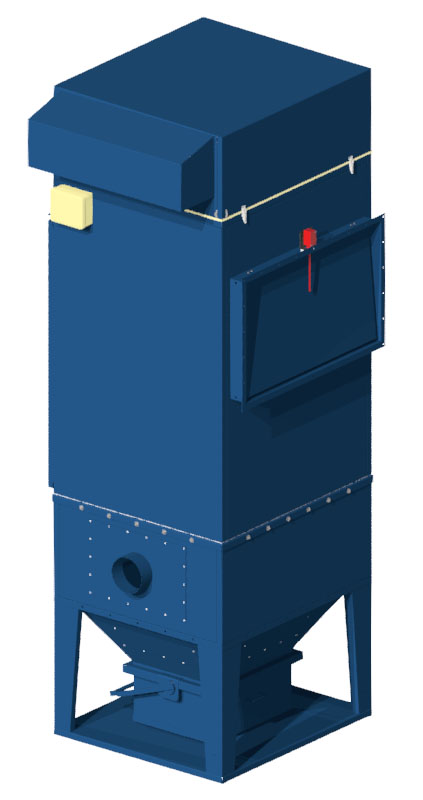

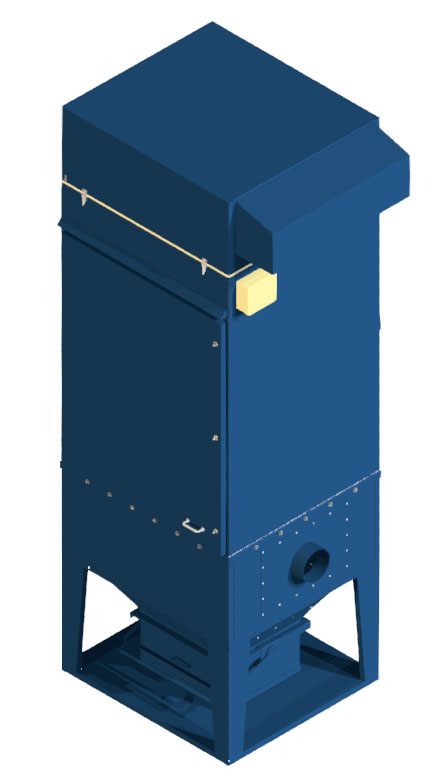

The Nederman Auto M series is the latest generation of robust simple mechanically cleaned bag dust collectors suitable for non-continuous duty for industrial, commercial and educational locations. The dust collector is neat, compact, unobtrusive and it is easy to clean the exterior and has a robust weatherproof welded steel construction.

  • All access for maintenance from the front of the unit
  • No need for compressed air
  • ATEX-certified for explosive dust in categories St1, St2 and St3
  • Efficient, automatic electric shaker mechanism
  • Weather-proof for positioning outdoors

Technical data
Certifications CE, EX
Installation Outdoor, Indoor
Suitable for combustible dust Yes
Filter cleaning method Shaking
Application Dust
Working pressure (kPa) -4 to 1,5
Dustbin volume (l) 75 or 150
Filter Area (m²) 7,5 - 90
Capacity (max airflow m3/h) 800 - 10200
Operating Temperature +80°C (+60°C for ATEX version)
Filter type Bag
Number of filter elements 1
Filter material Polyester

Models8

    Auto M Z 7,5 for max 800 m3/h

    ArtNo: Z 7,5

    Weight (kg)
    210
    Power (kW)
    3
    Auto M Z 15 for max 1900 m3/h

    ArtNo: Z 15

    Weight (kg)
    250
    Power (kW)
    3
    Auto M Z 25 for max 3000 m3/h

    ArtNo: Z 25

    Weight (kg)
    385
    Power (kW)
    7,5
    Auto M Z 30 for max 3400 m3/h

    ArtNo: Z 30

    Weight (kg)
    425
    Power (kW)
    7,5
    Auto M Z 50 for max 6000 m3/h

    ArtNo: Z 50

    Weight (kg)
    655
    Power (kW)
    15
    Auto M Z 60 for max 6800 m3/h

    ArtNo: Z 60

    Weight (kg)
    755
    Power (kW)
    15
    Auto M Z 75for max 9000 m3/h

    ArtNo: Z 75

    Weight (kg)
    900
    Power (kW)
    15
    Auto M Z 90 for max 10200 m3/h

    ArtNo: Z 90

    Weight (kg)
    1035
    Power (kW)
    15

Accessories for this product 38

Frequency Inverter 4 kW incl transmitter 0 - 2 kPa
ArtNo: 12400990

Frequency Inverter 4 kW incl transmitter 0 - 2 kPa

Frequency Inverter 15 kW incl transmitter 0-2 kPa
ArtNo: 12401106

Frequency Inverter 15 kW incl transmitter 0-2 kPa

Switchgear 5240-1GM11-11041
ArtNo: 73004677

Switchgear 5240-1GM11-11041

Control cabinet 5240-1GM11-22041
ArtNo: 73004680

Control cabinet 5240-1GM11-22041

Control cabinet 5240-1GM11-40041
ArtNo: 73004683

Control cabinet 5240-1GM11-40041.

Switchgear 5240-1GM12-40041
ArtNo: 73004686

Switchgear 5240-1GM12-40041

Control cabinet 5240-3GM12-75041
ArtNo: 73004710

Control cabinet 5240-3GM12-75041

AutoM 7,5 filter bag NF101 - 3 seams (standard)
ArtNo: 73005563

AutoM 7,5 filter bag NF101 - 3 seams (standard)

AutoM 7,5 filter bag NF133 - 3 seams (standard)
ArtNo: 73005565

AutoM 7,5 filter bag NF133 - 3 seams (standard)

AutoM 15 filter bag NF101 - 3 seams (standard)
ArtNo: 73005576

AutoM 15 filter bag NF101 - 3 seams (standard)

AutoM 15 filter bag NF133 - 3 seams (standard)
ArtNo: 73005578

AutoM 15 filter bag NF133 - 3 seams (standard)

AutoM 15 filter bag NF205 - 3 seams (standard)
ArtNo: 73005580

AutoM 15 filter bag NF205 - 3 seams (standard)

AutoM 15 filter bag NF207 - 3 seams (standard)
ArtNo: 73005581

AutoM 15 filter bag NF207 - 3 seams (standard)

AutoM 25 filter bag NF101 - 3 seams (standard)
ArtNo: 73005587

AutoM 25 filter bag NF101 - 3 seams (standard)

AutoM 25 filter bag NF133 - 3 seams (standard)
ArtNo: 73005589

AutoM 25 filter bag NF133 - 3 seams (standard)

AutoM 25 filter bag NF205 - 3 seams (standard)
ArtNo: 73005591

AutoM 25 filter bag NF205 - 3 seams (standard)

Auto M 25 filter bag NF207 - 3 seams (standard)
ArtNo: 73005592

Auto M 25 filter bag NF207 - 3 seams (standard)

AutoM 30 filter bag NF101 - 3 seams (standard)
ArtNo: 73005594

AutoM 30 filter bag NF101 - 3 seams (standard)

AutoM 30 filter bag NF133 - 3 seams (standard)
ArtNo: 73005596

AutoM 30 filter bag NF133 - 3 seams (standard)

AutoM 30 filter bag NF205 - 3 seams (standard)
ArtNo: 73005598

AutoM 30 filter bag NF205 - 3 seams (standard)

AutoM 30 filter bag NF207 - 3 seams (standard)
ArtNo: 73005599

AutoM 30 filter bag NF207 - 3 seams (standard)

Switchgear 5240-1GM12-30041 /motor fan 3kW/
ArtNo: 73007924

Switchgear 5240-1GM12-30041 /motor fan 3kW/

Switchgear 5240-1GM11-30041 /motor fan 3kW/
ArtNo: 73007925

Switchgear 5240-1GM11-30041 /motor fan 3kW/

Switchgear 5240-1GM12-55041
ArtNo: 73008183

Switchgear 5240-1GM12-55041

Switchgear 5240-1GM13-55041
ArtNo: 73008185

Switchgear 5240-1GM13-55041

Frequency inverter with 2 kPa pressure sensor. 1,5kW
ArtNo: 73008913

Frequency inverter with 2 kPa pressure sensor. 1,5kW. IP66 enclosure

Frequency inverter with 2kPa pressure sensor. 2,2kW
ArtNo: 73008914

Frequency inverter with 2kPa pressure sensor. 2,2kW. IP66 enclosure

Frequency inverter with 2kPa pressure sensor. 4kW
ArtNo: 73008915

Frequency inverter with 2kPa pressure sensor. 4kW. IP66 enclosure

Frequency inverter with 2kPa pressure sensor. 5,5kW
ArtNo: 73008916

Frequency inverter with 2kPa pressure sensor. 5,5kW. IP66 enclosure

Frequency inverter with 5kPa pressure sensor. 7,5kW
ArtNo: 73008917

Frequency inverter with 5kPa pressure sensor. 7,5kW. IP66 enclosure

Frequency inverter with 5kPa pressure sensor. 11kW
ArtNo: 73008918

Frequency inverter with 5kPa pressure sensor. 11kW. IP66 enclosure.

Frequency inverter with 5kPa pressure sensor. 15kW
ArtNo: 73008919

Frequency inverter with 5kPa pressure sensor. 15kW. IP66 enclosure

AutoM control cabinet type 5GM13
ArtNo: 7909062

AutoM control cabinet type 5GM13 for frequency inverter fan control, power up to 1,1kW/400VAC | ELC-5GM13-011-400

AutoM control cabinet type 5GM13
ArtNo: 7909063

AutoM control cabinet type 5GM13 for frequency inverter fan control, power up to 3,0kW/400VAC | ELC-5GM13-030-400

AutoM control cabinet type 5GM13
ArtNo: 7909064

AutoM control cabinet type 5GM13 for frequency inverter fan control, power up to 5,5kW/400VAC | ELC-5GM13-055-400

AutoM control cabinet type 5GM13
ArtNo: 7909065

AutoM control cabinet type 5GM13 for frequency inverter fan control, power up to 11,0kW/400VAC | ELC-5GM13-110-400

AutoM control cabinet type 5GM13
ArtNo: 7909066

AutoM control cabinet type 5GM13 for frequency inverter fan control, power up to 15,0kW/400VAC | ELC-5GM13-150-400

Universal control cabinet 1GM13, power up to 5,5kW/400VAC, direct motor start: ELC-1GM13-050-400-3
ArtNo: 7942066

Universal control cabinet 1GM13, power up to 5,5kW/400VAC, direct motor start: ELC-1GM13-050-400-3
