Explosion Isolation Flap Valve CARZ-NS Ø160-250mm

Explosion Isolation Flap Valve CARZ-NS Ø160-250mm

Explosion Isolation Flap Valve CARZ-NS - protective system for combustible dust applications

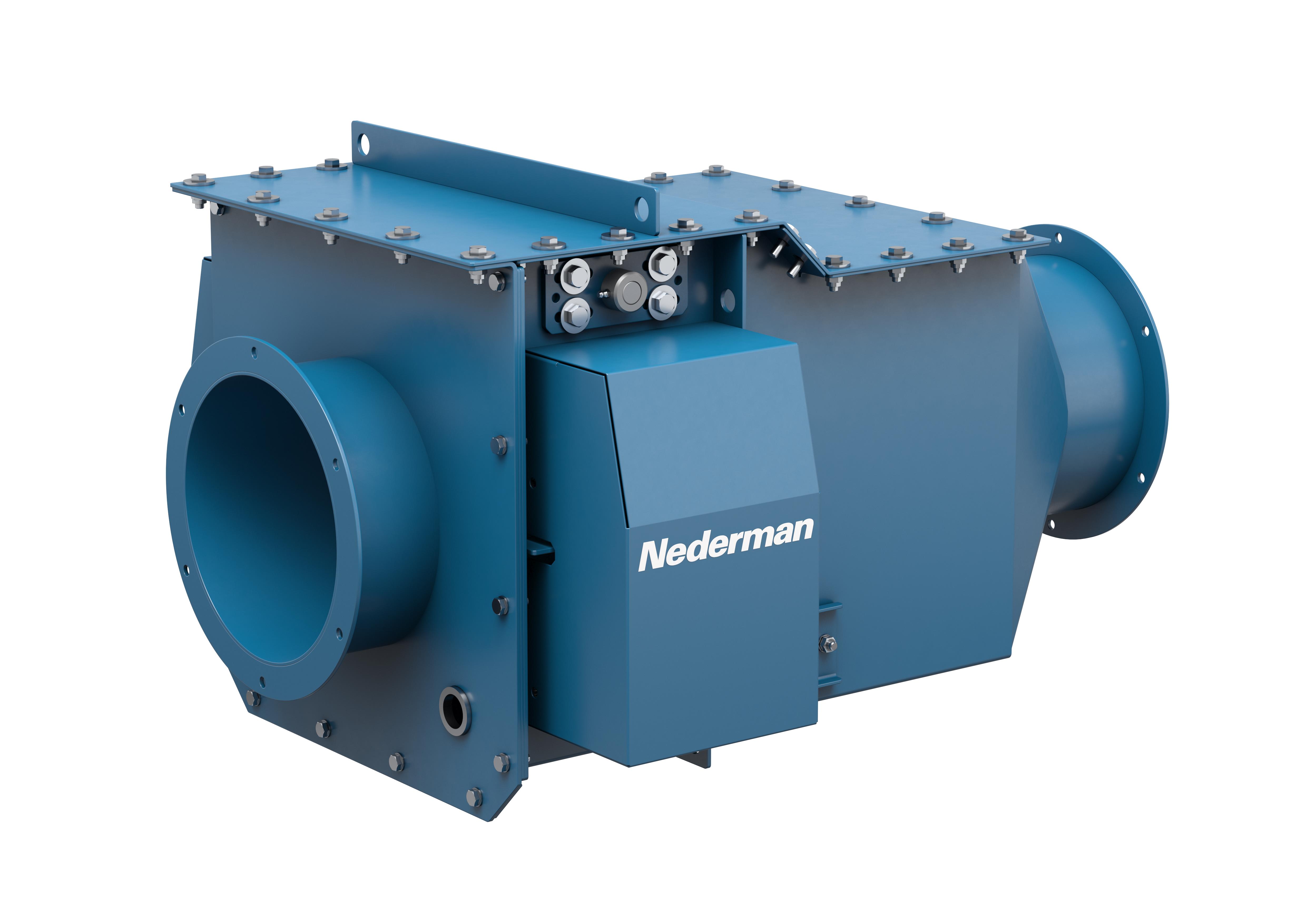

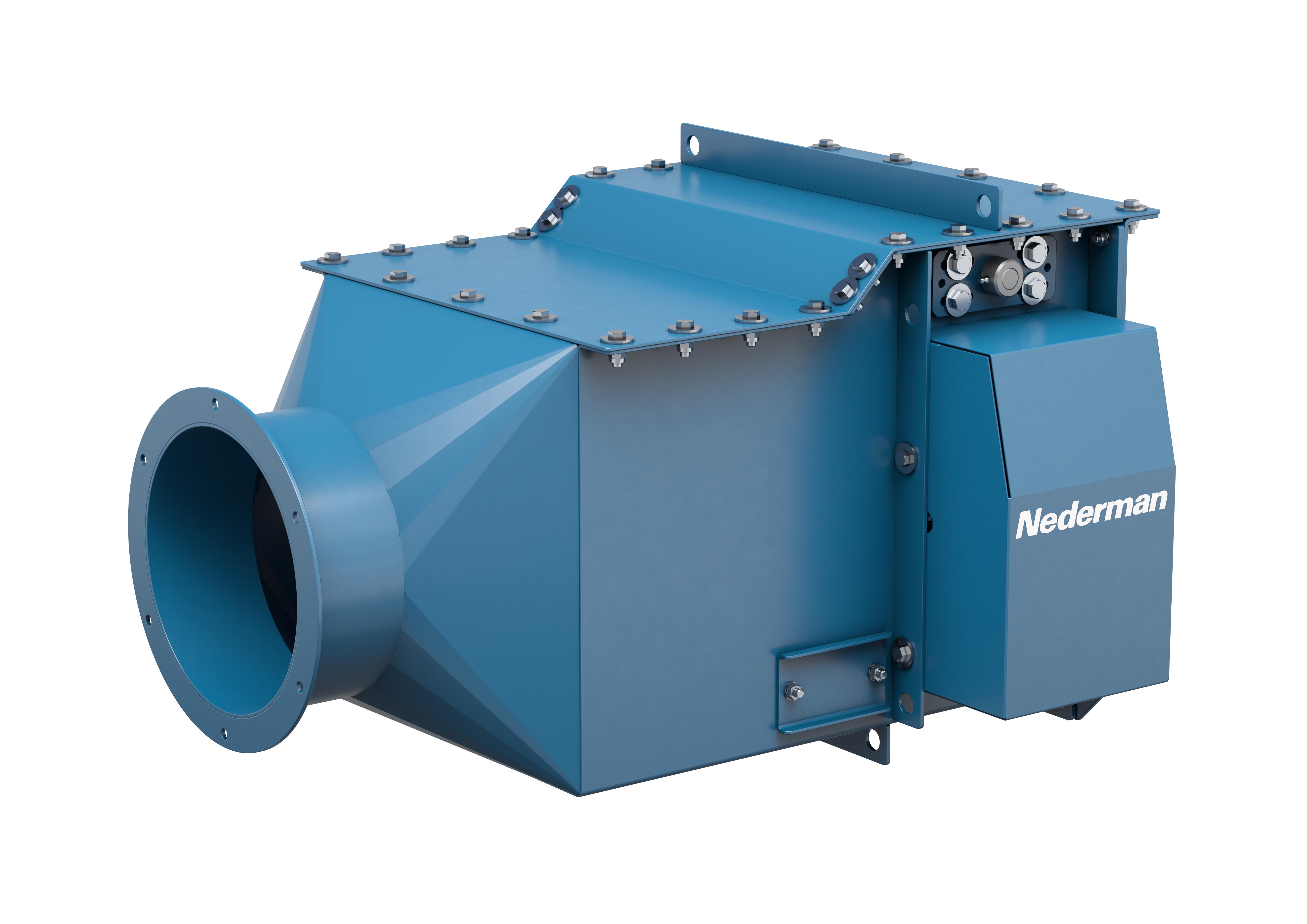

Explosion Isolation Flap Valve type CARZ-NS prevents a transmission of explosion pressure wave and flames front from the filter to your workplace. By using our CARZ-NS Explosion Isolation Flap Valve, you reduce the risk from dust explosion for both people and equipment.

Function

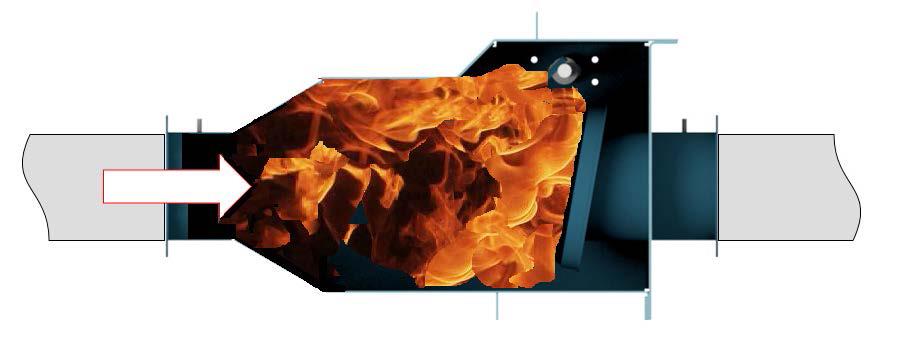

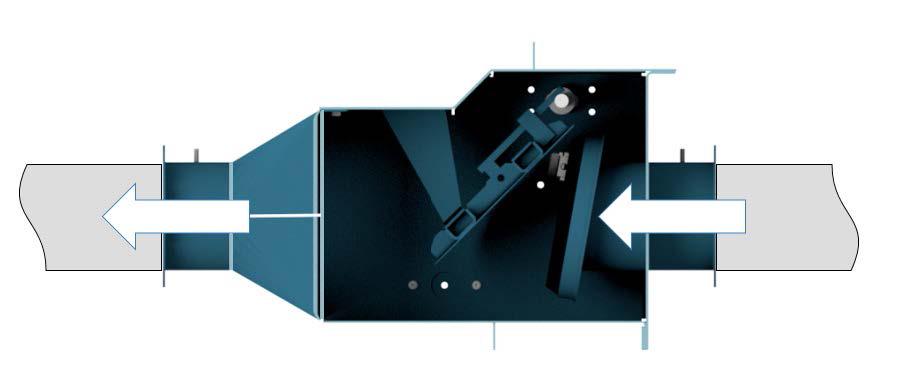

During normal operation, the valve is kept open, and large opening angle ensure low pressure drop. In case of an explosion in the filter, the pressure wave will force to close the flap plate and lock in position. When flap plate is closed it makes an effective barrier against approaching flame front. This prevent the explosion from being transmitted from the filter to upstream work areas.

No matter what industry you are in or what type of dust is generated in your factory, we can provide the complete dust explosion protection solution of filters, and explosion isolation flap valves.

  • Independently tested to latest and most stringent standards and regulations
  • Compliant with international dust explosion protection codes (ATEX, NFPA69, IECEx)
  • Widest range of sizes, applications and filter system configurations on the market (e.g. approval for positive and negative pressure systems, approval for metal dust, approval for St2 dust)
  • Manufactured fully by Nederman under certified quality assurance system, ensuring highest level of quality and reliability

Technical data
Certifications CE, EX
Material Welded carbon steel, painted RAL5009
Operating temperature range -20 - +70°C (0 - 160 F)
Ambient temperature range -20 - +60°C (0 - 140 F)
Note Organic dust - PUSH & PULL; metal dust - PULL only
Explosion Class ATEX St2
Max velocity in duct (m/s) 35
Minimum velocity in duct 0

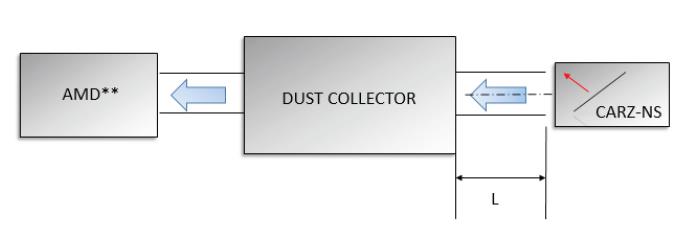

Minimum vessel size, push (m3) 0,46

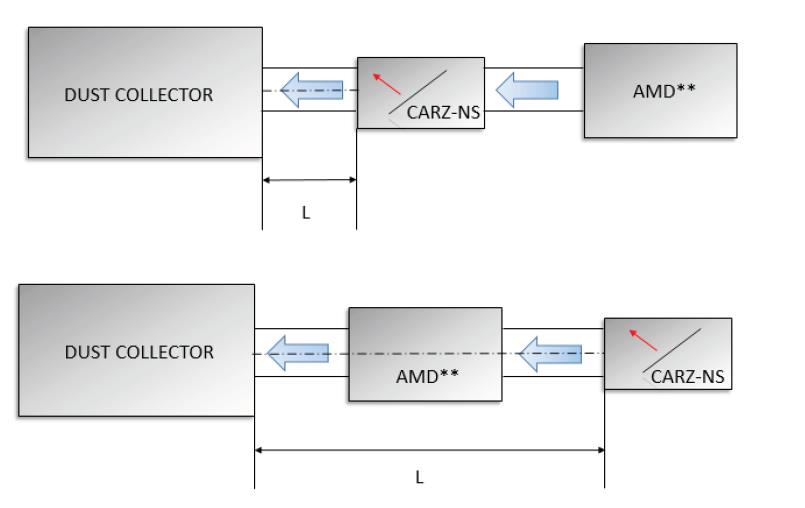

Install type Push and Pull
Minimum vessel size, pull (m3) 0,46
Dust type Metallic/Organic
Maximum reduced pressurem, Pred (bar) 0,5

Models12

    CARZ-NS 160 Explosion Isolation Flap Valve QF, Ex D St1, St2

    ArtNo: 73008219

    Diameter (mm)
    160
    Connection
    QF
    CARZ-NS 160 Explosion Isolation Flap Valve FL, Ex D St1, St2

    ArtNo: 73008218

    Diameter (mm)
    160
    Connection
    FL
    CARZ-NS 160 Explosion Isolation Flap Valve NW, Ex D St1, St2

    ArtNo: 73008220

    Diameter (mm)
    160
    Connection
    NW
    CARZ-NS 180 Explosion Isolation Flap Valve QF, Ex D St1, St2

    ArtNo: 73008399

    Diameter (mm)
    180
    Connection
    QF
    CARZ-NS 180 Explosion Isolation Flap Valve FL, Ex D St1, St2

    ArtNo: 73008398

    Diameter (mm)
    180
    Connection
    FL
    CARZ-NS 180 Explosion Isolation Flap Valve NW, Ex D St1, St2

    ArtNo: 73008400

    Diameter (mm)
    180
    Connection
    NW
    CARZ-NS 200 Explosion Isolation Flap Valve QF, Ex D St1, St2

    ArtNo: 73008402

    Diameter (mm)
    200
    Connection
    QF
    CARZ-NS 200 Explosion Isolation Flap Valve FL, Ex D St1, St2

    ArtNo: 73008401

    Diameter (mm)
    200
    Connection
    FL
    CARZ-NS 200 Explosion Isolation Flap Valve NW, Ex D St1, St2

    ArtNo: 73008403

    Diameter (mm)
    200
    Connection
    NW
    CARZ-NS 250 Explosion Isolation Flap Valve QF, Ex D St1, St2

    ArtNo: 73008405

    Diameter (mm)
    250
    Connection
    QF
    CARZ-NS 250 Explosion Isolation Flap Valve FL, Ex D St1, St2

    ArtNo: 73008404

    Diameter (mm)
    250
    Connection
    FL
    CARZ-NS 250 Explosion Isolation Flap Valve NW, Ex D St1, St2

    ArtNo: 73008406

    Diameter (mm)
    250
    Connection
    NW

Accessories for this product 10

CARZ support frame suspended 160
ArtNo: 73001558

CARZ support frame suspended 160

CARZ support frame suspended 180
ArtNo: 73001559

CARZ support frame suspended 180

CARZ support frame suspended 200
ArtNo: 73001560

CARZ support frame suspended 200

CARZ support frame suspended 250
ArtNo: 73001561

CARZ support frame suspended 250

CARZ support frame wall-hanging 160
ArtNo: 73001573

CARZ support frame wall-hanging 160

CARZ support frame wall-hanging 180
ArtNo: 73001574

CARZ support frame wall-hanging 180

CARZ support frame wall-hanging 200
ArtNo: 73001575

CARZ support frame wall-hanging 200

CARZ support frame wall-hanging 250
ArtNo: 73001576

CARZ support frame wall-hanging 250

Limit switch XCM-D - plunger - 2 x (1 NC + 1 NO) - II2 D-Ex tb IIIC T85°C Db IP66/67
ArtNo: 73007978

Limit switch XCM-D - plunger - 2 x (1 NC + 1 NO) - II2 D-Ex tb IIIC T85°C Db IP66/67

Limit switch XCM-D - M12 metal end plunger - 1NC + 1 NO - snap - 5 m
ArtNo: 73007979

Limit switch XCM-D - M12 metal end plunger - 1NC + 1 NO - snap - 5 m
