BenchTop Extraction Arm FX2 75 ESD/EX
Efficient, low-noise, and flexible extraction arms ensuring a safe work environment with excellent particle capture directly at the source and adaptable mounting options.

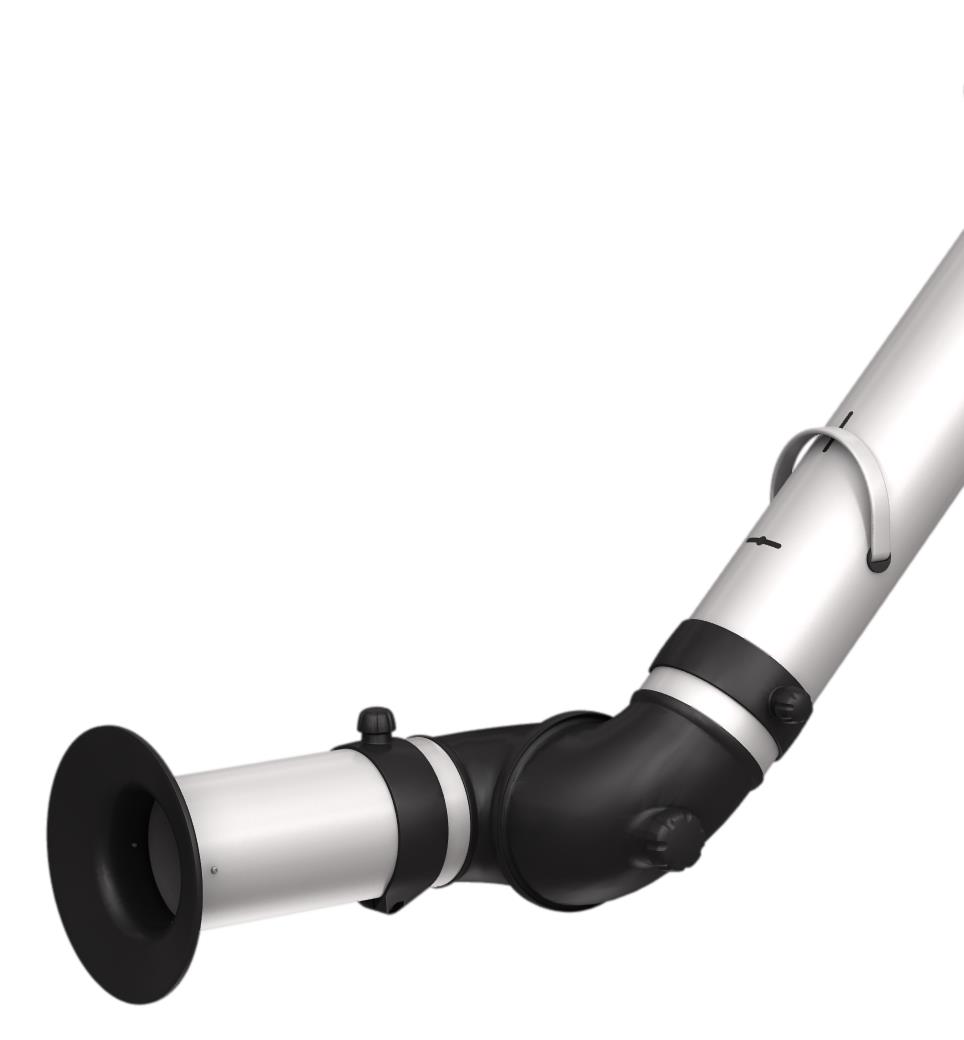

Nederman FX2 arms are made of lightweight anodized aluminium sections, with two or three adjustable, composite friction joints. Offering strength and durability combined with easy handling, they can be used in many types of environment. They are especially suitable for applications where small, flexible and easy-to-use arms are required.
The arm is designed for use in electronic environments where there is a risk of electrostatic discharges. The ESD/EX can also be used for certain applications in potentially explosive atmospheres. Recommended for use in zone 1, 2 and 21, 22.
-
Efficiently optimises the capture zone and removes contaminants at the source
-
Low noise levels for a safe and quiet workspace
-
Various lengths and mounting options for flexibility
-
Adjustable height for ergonomic efficiency
-
Adapts to business needs for optimal workspace
Certifications |
ESD, CE, EX |
Noise level (dB(A)) |
58 dB(A) at 240 m3/h |
Installation |
Indoor |
Material |
Tubes in anodized aluminium.
Joints in conductive PP plastic.
Duct connector in conductive EPDM rubber.
Minihood in conductive PP plastic. |
Fume temperature |
max 70°C |
Extraction arm diameter (mm) |
75 |
Airflow (m³/h) |
110 - 240 |
Application |
ESD |
Colour |
Aluminum and black |

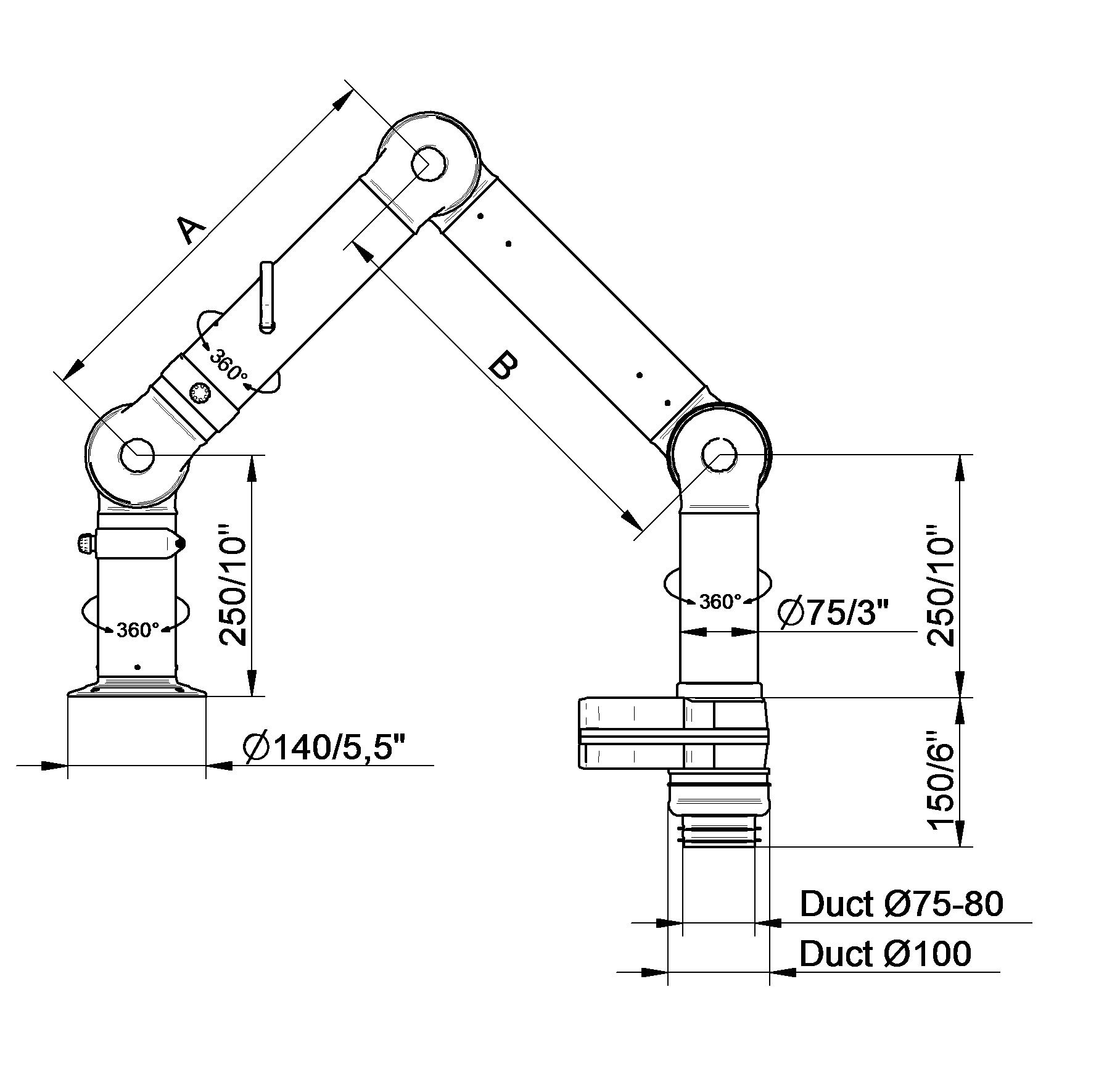

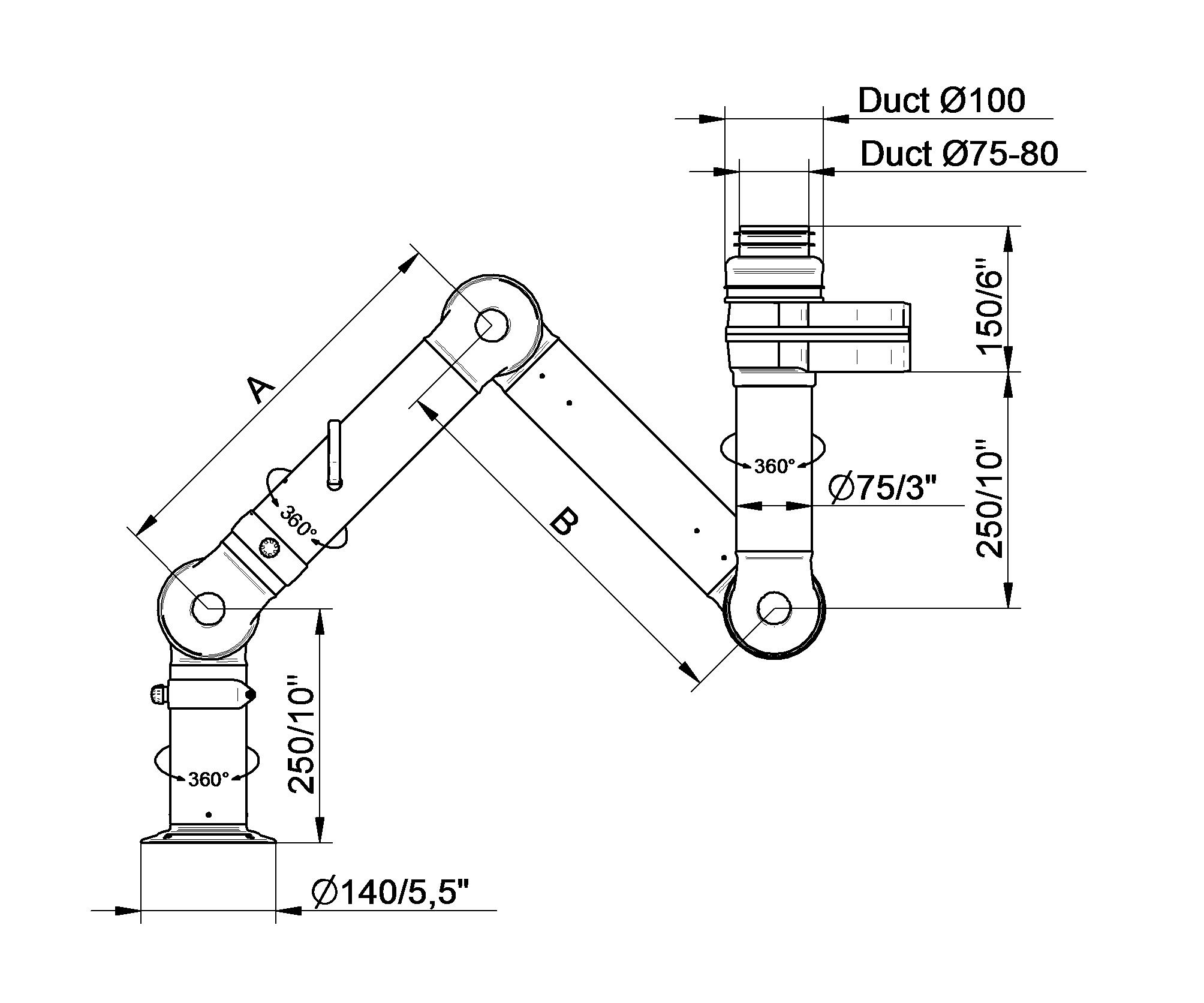

FX2-ESD/EX-D75-L1100-Up-Low
Mounting type

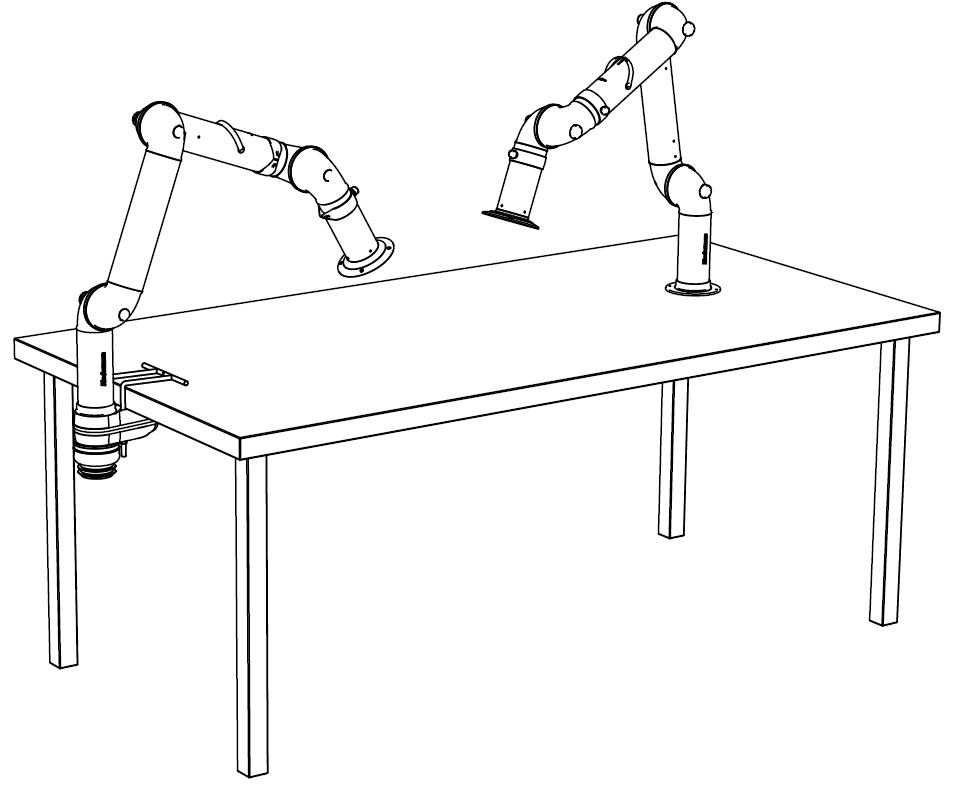

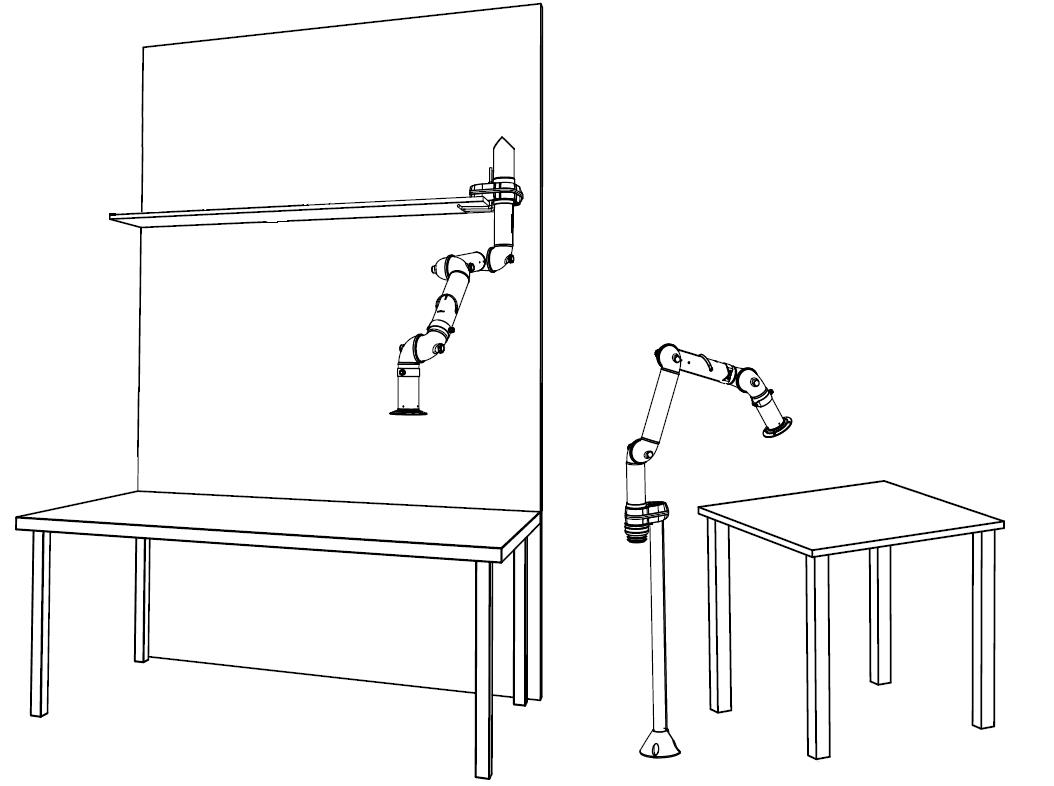

Surface Edge, Ceiling, Wall, On top of horizontal surface
FX2-ESD/EX-D75-L1100-Down-Low
Mounting type
Surface Edge, Floor, Wall, On top of horizontal surface

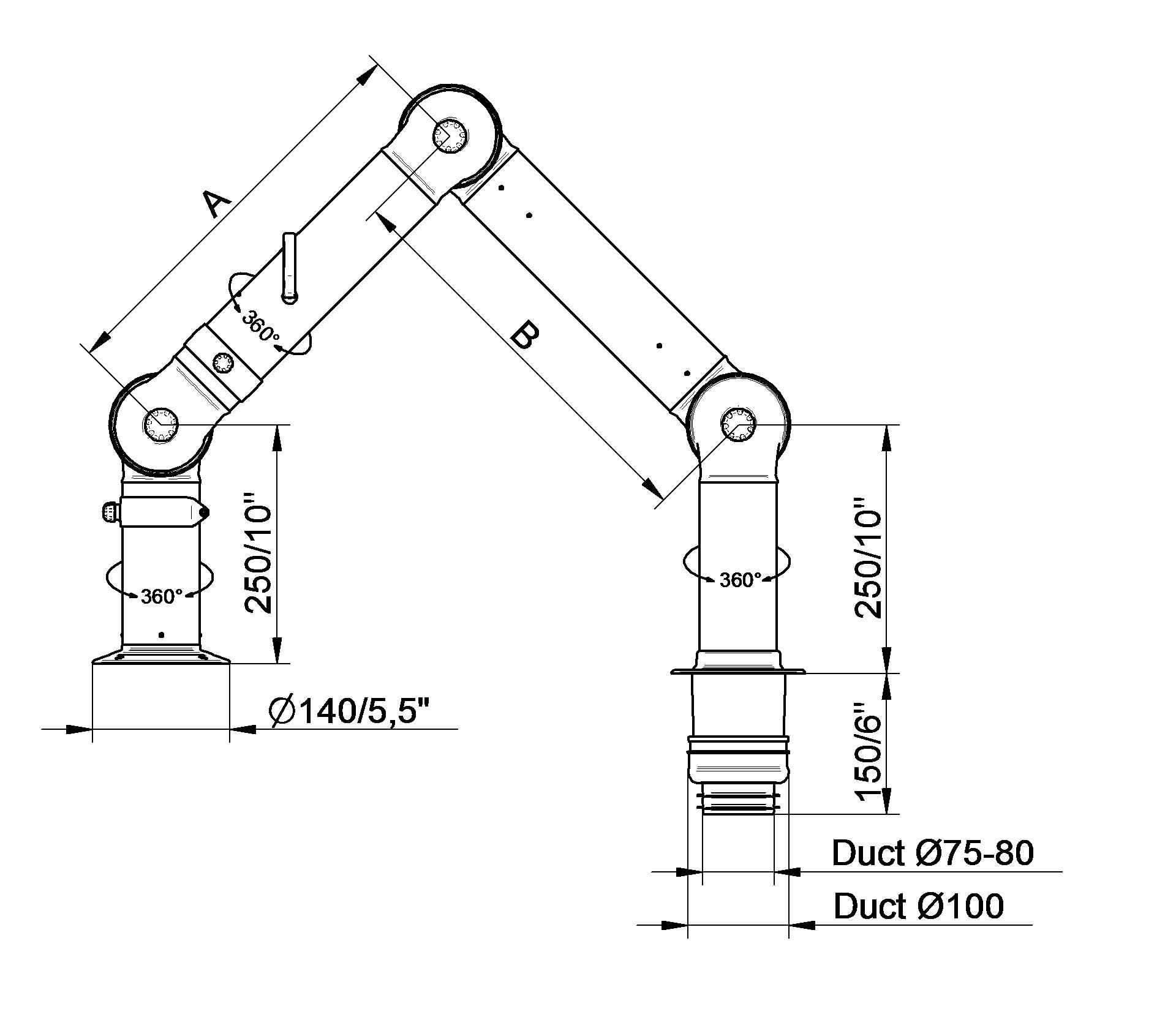

FX2-ESD/EX-D75-L1100-Down-Through
Mounting type

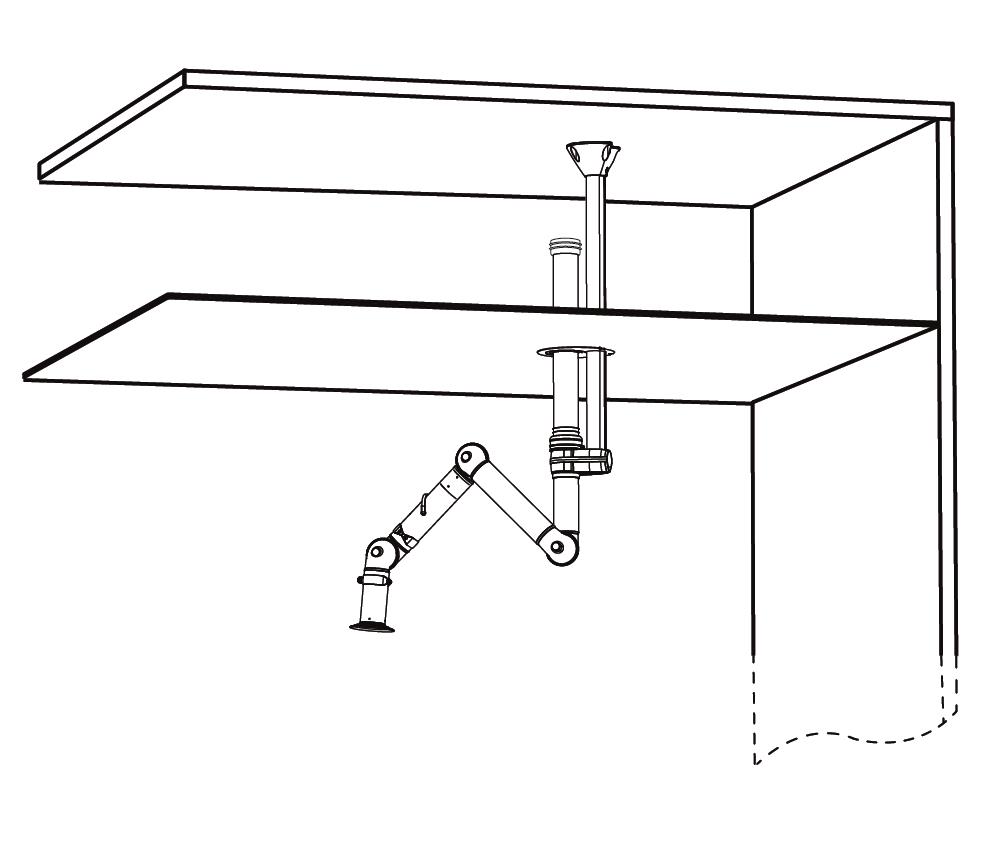

Bench Through
FX2-ESD/EX-D75-L1500-Up-Low
Mounting type
Surface Edge, Ceiling, Wall, On top of horizontal surface
FX2-ESD/EX-D75-L1500-Down-Low
Mounting type
Surface Edge, Wall
FX2-ESD/EX-D75-L1500-Down-Through
Mounting type
Bench Through
ArtNo: 70374600
FX-Cut2fit extension-L2200.
|
ArtNo: 70376983
FX-Dome hood-ESD/EX-D50/75/100
|
ArtNo: 70377039
FX2-Duct connector-ESD/EX-D75
|
ArtNo: 70377041
FX2-Duct connector-ESD/EX-D100
|
ArtNo: 70377042
FX2-Bracket kit-D50/75/100-L500.
Complete mounting kit, with the classic bracket, 500mm (19.68 inch) extension profile and associated parts, for mounting FX2 50/75/100 arms on the ceiling .
|
ArtNo: 70377044
FX2-Wall BRKT kit-Flat-L190-Black
|
ArtNo: 70377045
FX2-Ceiling cover plate-PLUS,
|
ArtNo: 70377058
FX2-Al duct-L1000-D75/100toD100
|
ArtNo: 70377059
FX2-Al duct-L2000-D75/100toD100
|
ArtNo: 70377067
FX2-Hose support ring-D75. Place into the 75 mm (3 inch) hose to support the connection between the hose and the duct connector of the arm.
|
ArtNo: 70377068
FX2-Hose support ring-D100
|
ArtNo: 70500244
FX-Dome hood-ORIGINAL-D50/75/100
|
ArtNo: 70500544
FX-Metal hood-ESD/EX-D50/75/100
|
ArtNo: 70501144
FX-Bracket kit-D50/75/100-L190
|
ArtNo: 70501244
FX-Classic bracket-D50/75/100
|
ArtNo: 70501344
FX-Cut2fit extension-L1100
|
ArtNo: 70501444
FX2-Bench bracket kit-D50/75/100
|
ArtNo: 70502644
FX-Ceiling cover plate
|
ArtNo: 70502944
FX-Flange hood-ESD/EX-D50/75/100
|
