NCF Fans

NCF Fans

The NCF fan from Nederman is safe, energy-efficient and durable for optimal air circulation. A wide range of NCF fans are available.

Nederman NCF fans offer a high-quality solution for industrial air displacement with direct-driven motors. These efficient fans are not only safe to use, but also contribute to significant energy cost savings. By integrating an NCF fan with other Nederman products, you can not only increase your operational efficiency, but also optimize your energy consumption.

This versatile centrifugal fan is suitable for a wide range of industrial processes and ventilation applications, both for indoor and outdoor use. Whether you're working in a manufacturing facility, a workshop, or any other industrial setting, the NCF fan delivers reliable performance to meet your air circulation needs.

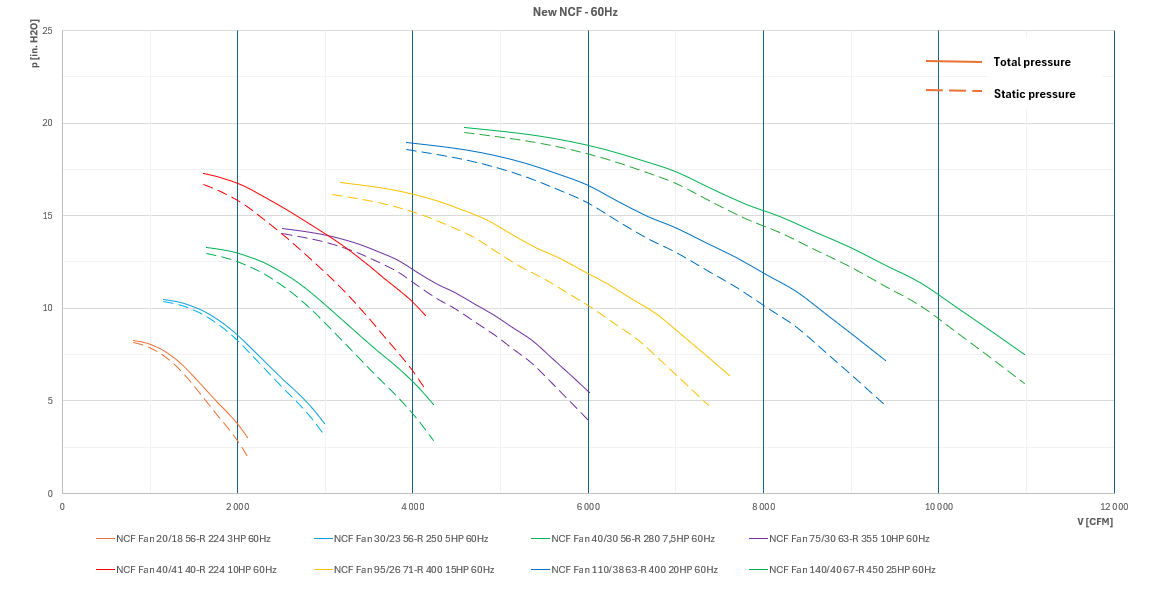

The fan is is available in a wide range of airflow, from 3000 up to 18 000 m3/h (1765 to 10 600 CFM).
Perfect to use together with one or several Nederman extraction arms like: Original arm, Telescopic arm, NEX MD arm etc or for vehicle exhaust extraction, and can be controlled with a fan starter or fan inverter.

Note! The fan must not be used in an environment with danger of explosion or for transport of inflammable or explosive gases.

  • Wide range of fans with different airflows
  • Built in vibration damping
  • Available with sound enclosure

Technical data
Certifications CE
Protection class IP 55
Installation Indoor, Outdoor
Material Galvanised steel, painted RAL7035
Suitable for combustible dust No
Ambient temperature range -20 ºC to +40 °C / -4 ºF to +104 ºF
Operating Temperature -4 ºF to +176 ºF
Frequency (Hz) 60
No of phases 3
Note Lp dB(A) in 1 m (ducted inlet & outlet)

Models15

    FAN NCF 20/18 56-R 224 60Hz

    ArtNo: 89114402

    Power Voltage (V)
    230/460
    Amperage (A)
    7,06/4,03
    Noise level (dB(A))
    66,2 db(A) at 1177 cfm
    Weight (lbs)
    63(kg) / 138(lbs)
    Power (Hp)
    3
    FAN NCF 30/23 56-R 250 60 Hz

    ArtNo: 89114405

    Power Voltage (V)
    230/460
    Amperage (A)
    13,3/6,63
    Noise level (dB(A))
    69,8 db(A) at 1766 cfm
    Weight (lbs)
    79(kg) / 173(lbs)
    Power (Hp)
    5
    FAN NCF 40/30 56-R 280 60 Hz

    ArtNo: 89114410

    Power Voltage (V)
    230/460
    Amperage (A)
    19,1/9,57
    Noise level (dB(A))
    73,7 db(A) at 2354 cfm
    Weight (lbs)
    119(kg) / 261(lbs)
    Power (Hp)
    7,5
    FAN NCF 40/41 40-R 224 60 Hz

    ArtNo: 89114412

    Power Voltage (V)
    230/460
    Amperage (A)
    26,6/13,3
    Noise level (dB(A))
    77,6 db(A) at 2354 cfm
    Weight (lbs)
    137(kg) / 301(lbs)
    Power (Hp)
    10
    FAN NCF 75/30 63-R 355 60 Hz

    ArtNo: 89114407

    Power Voltage (V)
    230/460
    Amperage (A)
    26,6/13,3
    Noise level (dB(A))
    75 db(A) at 4414 cfm
    Weight (lbs)
    166(kg) / 365(lbs)
    Power (Hp)
    10
    FAN NCF 95/26 71-R 400 60 Hz

    ArtNo: 89114414

    Power Voltage (V)
    230/460
    Amperage (A)
    38/19
    Noise level (dB(A))
    75,8 db(A) at 5591 cfm
    Weight (lbs)
    248(kg) / 547(lbs)
    Power (Hp)
    15
    FAN NCF 140/40 67-R 450 60 Hz

    ArtNo: 89114418

    Power Voltage (V)
    230/400
    Amperage (A)
    64,24/32,12
    Noise level (dB(A))
    78,9 db(A) at 8240 cfm
    Weight (lbs)
    299(kg) / 658(lbs)
    Power (Hp)
    25
    FAN NCF 20/18 56-R 224 60 Hz

    ArtNo: 89114403

    Power Voltage (V)
    575
    Amperage (A)
    2,88
    Noise level (dB(A))
    66,2 db(A) at 1177 cfm
    Weight (lbs)
    71(kg)/ 157(lbs)
    Power (Hp)
    3
    FAN NCF 30/23 56-R 250 60 Hz

    ArtNo: 89114406

    Power Voltage (V)
    575
    Amperage (A)
    4,6
    Noise level (dB(A))
    69,8 db(A) at 1766 cfm
    Weight (lbs)
    79(kg) / 173(lbs)
    Power (Hp)
    5
    FAN NCF 40/30 56-R 280 60 Hz

    ArtNo: 89114411

    Power Voltage (V)
    575
    Amperage (A)
    6,96
    Noise level (dB(A))
    73,7 db(A) at 2354 cfm
    Weight (lbs)
    125(kg) / 274(lbs)
    Power (Hp)
    7,5
    NCF 40/41 40-R 224 motor NEMA 60Hz

    ArtNo: 89114413

    Power Voltage (V)
    575
    Amperage (A)
    9,04
    Noise level (dB(A))
    77,6 db(A) at 2354 cfm
    Weight (lbs)
    137(kg) / 301(lbs)
    Power (Hp)
    10
    FAN NCF 75/30 63-R 355 60 Hz

    ArtNo: 89114408

    Power Voltage (V)
    575
    Amperage (A)
    9,04
    Noise level (dB(A))
    75 db(A) at 4414 cfm
    Weight (lbs)
    166(kg) / 365(lbs)
    Power (Hp)
    10
    FAN NCF 95/26 71-R 400 60 Hz

    ArtNo: 89114415

    Power Voltage (V)
    575
    Amperage (A)
    13,44
    Noise level (dB(A))
    87,5 db(A) at 5591 cfm
    Weight (lbs)
    235(kg) / 518(lbs)
    Power (Hp)
    15
    FAN NCF 110/38 63-R 400 60 Hz

    ArtNo: 89114417

    Power Voltage (V)
    575
    Amperage (A)
    18,08
    Noise level (dB(A))
    78 db(A) at 6474 cfm
    Weight (lbs)
    259(kg) / 571(lbs)
    Power (Hp)
    20
    FAN NCF 140/40 67-R 450 60 Hz

    ArtNo: 89114419

    Power Voltage (V)
    575
    Amperage (A)
    22,72
    Noise level (dB(A))
    78,9 db(A) at 8240 cfm
    Weight (lbs)
    306(kg) / 675(lbs)
    Power (Hp)
    25

Accessories for this product 24

Inlet Flange with grill dia 224
ArtNo: 73009537

Inlet Flange grill for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz and for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. D=224 mm. Can also be used with Combifab-F

Inlet Flange with grill dia 280
ArtNo: 73009538

Inlet Flange with grill for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. D=280 mm. Can also be used with Combifab-F

Inlet Flange with grill dia 250
ArtNo: 73009539

Inlet Flange with grill for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. D=250 mm. Can also be used for Combifab-F

Inlet Flange with grill dia 355
ArtNo: 73009540

Inlet Flange with grill for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. D=355mm. Can also be used with Combifab-F.

Inlet Flange with grill dia 400
ArtNo: 73009541

Inlet Flange with grill for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. D=400 mm. Can also be used with Combifab-F

Inlet Flange with grill dia 450
ArtNo: 73009542

Inlet Flange with grill for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. D=450 mm. Can also be used with Combifab-F

Outlet Flange with grill 56-224
ArtNo: 73009543

Outlet Flange with grill for NCF 20/18 56-R 224 230/400V 2,2kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 56-280
ArtNo: 73009544

Outlet Flange with grill for NCF 40/30 56-R 280 230/400V 5,5 kW 50Hz and NCF 40/30 56-R 280 400/690V 5,5 kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 56-250
ArtNo: 73009545

Outlet Flange grill for NCF 30/23 56-R 250 230/400V 4,0kW 50Hz and NCF 30/23 56-R 250 400/690V 4,0kW 50Hz. Can also be used for Combifab-F

Outlet Flange with grill 71-400
ArtNo: 73009546

Outlet Flange with grill for NCF 95/26 71-R 400 400/690V 11,0kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 63-400
ArtNo: 73009547

Outlet Flange with grill for NCF 110/38 63-R 400 400/690V 15,0kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 63-355
ArtNo: 73009548

Outlet Flange with grill for NCF 75/30 63-R 355 400/690V 7,5kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 67-450
ArtNo: 73009549

Outlet Flange with grill for NCF 140/40 67-R 450 400/690V 18,5kW 50Hz. Can also be used with Combifab-F

Outlet Flange with grill 40-224
ArtNo: 73009550

Outlet Flange with grill for NCF 40/41 40-R 224 400/690V 7,5kW 50Hz. Can also be used with Combifab-F

Vibration absorber DVE-45-M10-A-40, 1 set (4 pcs)
ArtNo: 73009551

For NCF 20/18 56-R224, NCF 30/23 56-R250, NCF 40/30 56-R280, NCF 40/41 40-R224 and NCF 75/30 63-R355.

Vibration absorber DVE-58-M10-A-60, 1 set (4 pcs)
ArtNo: 73009552

For NCF 95/26 71-R400, NCF 110/38 63-R400 and NCF 140/40 67-R450

Fan Manual Starter 1-1.6 A
ArtNo: 86900420

Fan Manual Starter 1-1.6 A

Fan Manual Starter 1.6-2.5 A
ArtNo: 86900421

Fan Manual Starter 1.6-2.5 A

Fan Manual Starter 2.5-4.0 A
ArtNo: 86900422

Fan Manual Starter 2.5-4.0 A

Fan Manual Starter 4.0-6.0 A
ArtNo: 86900423

Fan Manual Starter 4.0-6.0 A

Fan Manual Starter 6.0-10 A
ArtNo: 86900424

Fan Manual Starter 6.0-10 A

Fan Manual Starter 10-16 A
ArtNo: 86900425

Fan Manual Starter 10-16 A

Fan Manual Starter 16-20 A
ArtNo: 86900426

Fan Manual Starter 16-20 A

Fan Manual Starter 20-25 A
ArtNo: 86900427

Fan Manual Starter 20-25 A
