MAX Rail Direct Connect Exhaust Extraction

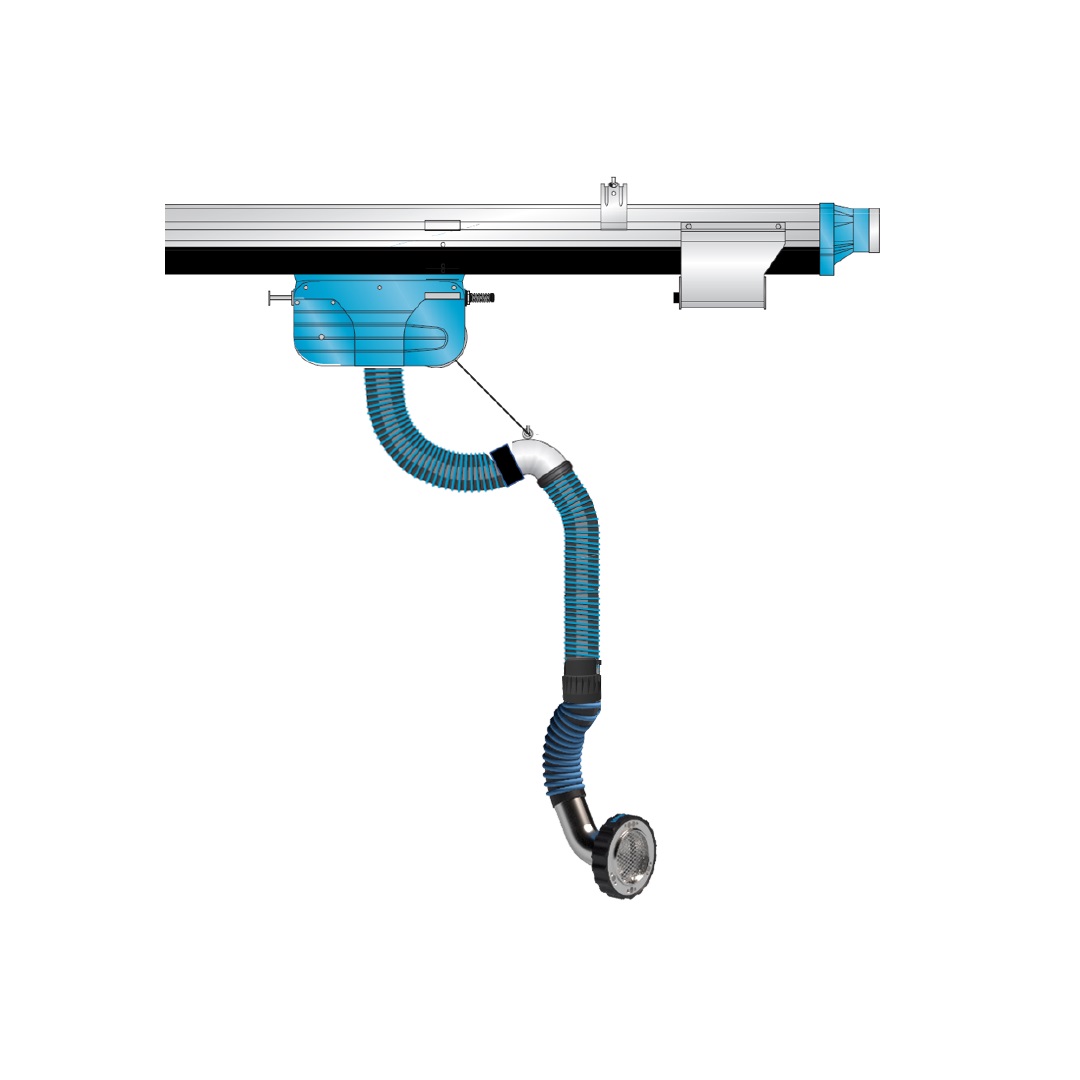

The MAX Rail exhaust solution is designed with the market proven MagnaRail track and trolley system and our new MAX Nozzle. The MAX nozzle connects directly to a robust adapter secured to the vehicle tailpipe and disconnects as the vehicle exits the bay. Features a patent pending design that induces ambient air to cool both the airstream and connection magnets reducing wear and tear and maintenance needs for the system.

  • Suitable for drive through or back in station arrangements
  • Supports up to (2) vehicles per bay
  • Ideal for station with medium-to-high frequency dispatch
  • Available with 4” or 6” exhaust hose diameters and a variety of tailpipe adapter sizes for tailored air flow to different types of apparatus

Technical data
Installation Indoor
Hose Diameter (in) 4 or 6
Hose length (ft.) Varies
Operating Temperature Up to 510°C (950°F)

Models3

    MAX Trolley complete with 4" hose, 4" nozzle opening

    ArtNo: 89298277

    MAX Trolley complete with 4" hose, 6" nozzle opening

    ArtNo: 89298274

    MAX Trolley complete with 6" hose, 6" nozzle opening

    ArtNo: 89298278

Accessories for this product 46

End stop Complete
ArtNo: 20373836

End stop complete for 920 and MAX Rails

Top Mounted Round Exhaust Outlet for 920 and MagnaRails - Outlet Diameter = 8 in (200 mm)
ArtNo: 20374246

Top Mounted Round Exhaust Outlet for 920 and MagnaRails - Outlet Diameter = 8 in (200 mm)

Transmitter vehicle GHz
ArtNo: 20376723

Transmitter vehicle GHz

Receiver GHz
ArtNo: 20376724

Receiver GHz

Handheld transmitter GHz
ArtNo: 20376725

Handheld transmitter GHz

Exhaust rail 920 L= 7.5 m (25´)
ArtNo: 20916220

920 Exhaust Rail Length = 7.5 m (24 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 10.0 m (33´)
ArtNo: 20916320

920 Exhaust Rail Length = 10 m (33 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 12.5 m (41´)
ArtNo: 20916420

920 Exhaust Rail Length = 12.5 m (41 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 15.0 m (50´)
ArtNo: 20916520

920 Exhaust Rail Length = 15 m (50 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 17.5 m (57´)
ArtNo: 20916620

920 Exhaust Rail Length = 17.5 m (57 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 20.0 m (66´)
ArtNo: 20916720

920 Exhaust Rail Length = 20 m (66 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 22.5 m (74´)
ArtNo: 20916820

920 Exhaust Rail Length = 22.5 m (74 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 25.0 m (82´)
ArtNo: 20916920

920 Exhaust Rail Length = 25 m (82 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 27.5 m (90´)
ArtNo: 20917020

920 Exhaust Rail Length = 27.5 m (90 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Exhaust rail 920 L= 30.0 m (99´)
ArtNo: 20917120

920 Exhaust Rail Length = 30 m (99 ft) - Complete with suspension parts. joint connectors. rubber seals. end covers and end stops.

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 1 PH / 60 Hz
ArtNo: 89116050

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 1 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 3 PH / 60 Hz
ArtNo: 89116051

Fan Motor Starter Auto Start Control Panel - 3 HP / 208-230 V / 3 PH / 60 Hz

5HP/1PH/208-230V Auto-Start Control Console
ArtNo: 89116052

Fan Motor Starter Auto Start Control Panel - 5 HP / 208-230 V / 1 PH / 60 Hz w/ASIbd

Fan Motor Starter Auto Start Control Panel - 5 HP / 208-230 V / 3 PH / 60 Hz
ArtNo: 89116053

Fan Motor Starter Auto Start Control Panel - 5 HP / 208-230 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 7.5 HP/ 208-230 V / 1 PH / 60 Hz
ArtNo: 89116054

Fan Motor Starter Auto Start Control Panel - 7.5 HP/ 208-230 V / 1 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 208-230 V - 3 PH / 60 HZ
ArtNo: 89116055

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 208-230 V - 3 PH / 60 HZ

Fan Motor Starter Auto Start Control Panel - 10 HP / 208-230 V / 3 PH / 60 Hz
ArtNo: 89116056

Fan Motor Starter Auto Start Control Panel - 10 HP / 208-230 V / 3 PH / 60 Hz

10HP/3PH/460V Auto-Start Control Console
ArtNo: 89116059

Fan Motor Starter Auto Start Control Panel - 10 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 5 HP / 460 V / 3 PH / 60 Hz
ArtNo: 89116060

Fan Motor Starter Auto Start Control Panel - 5 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 3 HP / 460 V / 3 PH / 60 Hz
ArtNo: 89116061

Fan Motor Starter Auto Start Control Panel - 3 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 460 V / 3 PH / 60 Hz
ArtNo: 89116062

Fan Motor Starter Auto Start Control Panel - 7.5 HP / 460 V / 3 PH / 60 Hz

Fan Motor Starter Auto Start Control Panel - 15 HP / 208 V / 3 PH / 60 Hz with ASIb
ArtNo: 89116063

Fan Motor Starter Auto Start Control Panel - 15 HP / 208 V / 3 PH / 60 Hz with ASIb

100mm (4 ft) x 0.6 m (2 ft) HD Lower
ArtNo: 89295367

MAX Nozzle Systems Lower Hose with Blue Helix - 4 in (100 mm) x 2 ft (0.6 m)

100mm (4 in) x 1.8m (6 ft.) HD Middle
ArtNo: 89295368

MAX Nozzle Systems Middle Extraciton Hose w/ Blue Helix - 4 in (100 mm) x 6 ft (3 m)

100mm (4 in.) x 6m (20 ft.) HD Middle
ArtNo: 89295369

MAX Nozzle Systems Upper Extraciton Hose w/ Blue Helix - 4 in (100 mm) x 20 ft (6 m)

150mm (6 in) x 0.6 m (2 ft) HD Lower
ArtNo: 89295370

MAX Nozzle Systems Lower Hose with Blue Helix - 6 in (150 mm) x 2 ft (0.6 m)

150mm (6 in) x 1.8 m (6 ft) HD Middle
ArtNo: 89295371

MAX Nozzle Systems Middle Extraciton Hose w/ Blue Helix - 6 in (150 mm) x 6 ft (3 m)

150mm (6 in) x6 m (20 ft) HD Upper
ArtNo: 89295372

MAX Nozzle Systems Upper Extraciton Hose w/ Blue Helix - 6 in (150 mm) x 20 ft (6 m)

100mm (4 in.) x 5m (16 ft.) Silicone Nomex w/blue helix
ArtNo: 89295374

MAX Nozzle Systems Silicone Nomex w/Blue Helix - 4 in (100 mm) x 16 ft (5 m)

150mm (6 in) x 5m (16 ft) Silicone Nomex
ArtNo: 89295375

MAX Nozzle Systems Silicone Nomex w/Blue Helix - 6 in (150 mm) x 16 ft (5 m)

MAX Nozzle Systems AutoStart Control Panel - 2 HP / 208 V / 1 PH / 60 Hz
ArtNo: 89298071

MAX Nozzle Systems AutoStart Control Panel - 2 HP / 208 V / 1 PH / 60 Hz

Tailpipe Adapter Kit - 3 in (75 mm) ID and 4 in (100 mm) Hood - Supplied with clamp
ArtNo: 89299201

Tailpipe Adapter Kit - 3 in (75 mm) ID and 4 in (100 mm) Hood - Supplied with clamp

Tailpipe Adapter Kit - 3.5 in (89 mm) ID and 4 in (100 mm) Hood - Supplied with clamp
ArtNo: 89299202

Tailpipe Adapter Kit - 3.5 in (89 mm) ID and 4 in (100 mm) Hood - Supplied with clamp

Tailpipe Adapter Kit - 4 in (100 mm) ID and 4 in (100 mm) Hood - Supplied with clamp
ArtNo: 89299203

Tailpipe Adapter Kit - 4 in (100 mm) ID and 4 in (100 mm) Hood - Supplied with clamp

Tailpipe Adapter Kit - 5 in (125 mm) ID and 6 in (150 mm) Hood - Supplied with clamp
ArtNo: 89299204

Tailpipe Adapter Kit - 5 in (125 mm) ID and 6 in (150 mm) Hood - Supplied with clamp

Tailpipe Adapter Kit - 6 in (150 mm) ID and 6 in (150 mm) Hood - Supplied with clamp
ArtNo: 89299205

Tailpipe Adapter Kit - 6 in (150 mm) ID and 6 in (150 mm) Hood - Supplied with clamp

Rubber Bumper, 6 in. MAX Nozzle
ArtNo: 89299217

Rubber Bumper for 6 in (150 mm) MAX Nozzle

Diaphragm, 6 in. MAX Nozzle
ArtNo: 89299219

6 in (150 mm) MAX Nozzle Gasket

Diaphragm, 4 in. MAX Nozzle
ArtNo: 89299220

4 in (100 mm) MAX Nozzle Gasket

Contact Plate, 4 in. Nozzle Connect MAX Nozzle
ArtNo: 89299221

4 in (100 mm) MAX Nozzle Contact Plate

Contact Plate, 6 in. Nozzle Connection MAX Nozzle
ArtNo: 89299222

6 in (150 mm) MAX Nozzle Contact Plate
